CK45
Max. 12m
≤ 0.03 mm
20 mm – 400 mm
≤ 0.3 mm/m
Hydraulic cylinders for mobile equipment, industrial machinery, and heavy-duty systems
Wooden cases
0.1-0.4μm
Availability: | |
---|---|
Product Description

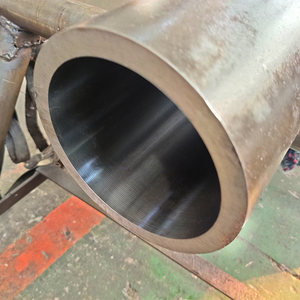

The CK45 Skived and Roller Burnished Tube is a high-precision steel tube that has undergone two crucial machining processes: skiving and roller burnishing. These processes significantly enhance the tube’s surface finish, dimensional accuracy, and mechanical performance, making it ideal for high-performance hydraulic and pneumatic cylinder applications. The base material, CK45 (equivalent to DIN 1.1191 and SAE 1045), is a medium carbon steel widely recognized for its good machinability, wear resistance, and mechanical strength.
Manufactured under strict quality control standards, our CK45 tubes are produced using advanced CNC skiving machines and roller burnishing equipment to deliver a mirror-like internal surface and consistent dimensional tolerances. These tubes are widely used in hydraulic cylinders for construction machinery, agricultural equipment, material handling systems, and industrial automation.
Parameter | Specification |
---|---|
Material | CK45 (DIN 1.1191 / SAE 1045) |
Outer Diameter (OD) | 30 mm – 500 mm |
Inner Diameter (ID) | 20 mm – 400 mm |
Wall Thickness | 5 mm – 50 mm |
Inner Diameter Tolerance | H8 |
Inner Surface Roughness | Ra ≤ 0.2 μm |
Straightness | ≤ 0.3 mm/m |
Hardness | 160 – 210 HB |
Roundness | ≤ 0.03 mm |
Length | Up to 12 meters (custom cut lengths available) |
Surface Protection | Anti-rust oil coating / VCI film / Customized packaging |
Raw Material Selection
The manufacturing process begins with high-grade CK45 seamless steel tubes, sourced from reputable mills. Each tube is inspected for chemical composition and mechanical properties to ensure it meets international standards.
Cold Drawing or Honing (if applicable)
The tubes may undergo a cold drawing or honing process to refine the initial inner diameter and surface structure before skiving.
Skiving
In this process, a rotating cutting tool removes a small layer of metal from the inner surface of the tube. This creates a uniformly smooth internal surface while correcting minor geometric deviations.
Roller Burnishing
Following skiving, the tube undergoes roller burnishing. This cold-working process uses hard rollers to compress the inner surface, resulting in a mirror-like finish, enhanced hardness, and improved surface integrity.
Final Inspection and Surface Treatment
After machining, tubes are cleaned, dried, and coated with anti-rust oil. Every piece is checked for surface roughness, roundness, hardness, straightness, and dimensional tolerances.
The roller burnishing process reduces surface roughness to Ra ≤ 0.2 μm, resulting in a polished internal surface that minimizes friction and enhances sealing performance. This helps extend the life of the cylinder seals and improve overall efficiency.
The tubes maintain strict tolerance control of H8 for inner diameter, making them ideal for direct use in hydraulic and pneumatic cylinder barrels without additional machining.
The cold working process during roller burnishing increases surface hardness and fatigue resistance, making the tubes more durable and long-lasting in demanding environments.
Thanks to the high-quality surface finish and accurate tolerances, hydraulic systems built with CK45 skived and roller burnished tubes are less prone to leaks and component failures.
These tubes are “ready for assembly”—they do not require any further honing or finishing before installation in hydraulic cylinder manufacturing.
Our CK45 skived and roller burnished tubes are trusted by industries across the globe for their reliability and performance. Typical applications include:
Hydraulic Cylinders
Used in heavy-duty machinery such as excavators, bulldozers, loaders, and cranes.
Pneumatic Cylinders
Suitable for fast-response automation systems and industrial robots.
Agricultural Equipment
Utilized in tractors, harvesters, and hydraulic lifting systems.
Construction Machinery
Critical for hydraulic systems in concrete pump trucks, pile drivers, and lift platforms.
Material Handling Systems
Found in forklifts, lifting arms, and hydraulic lifts for smooth movement and control.
Mining Equipment
Ideal for use in harsh environments with high-pressure hydraulic systems.
Our CK45 skived and roller burnished tubes are subjected to a series of stringent quality checks throughout the production cycle:
Chemical Composition Test using spectrometers
Ultrasonic Testing (UT) for internal defects
Hydrostatic Pressure Testing upon request
Surface Roughness Measurement with profilometers
Inner Diameter Gauge with H8 tolerance check
Straightness Check with laser or digital straightness tools
Salt Spray Testing (upon request) for rust resistance performance
We are ISO 9001:2015 certified and follow international standards such as DIN 2391, EN 10305, and ASTM A519 in production and quality control.
To protect your investment and ensure safe delivery, our tubes are:

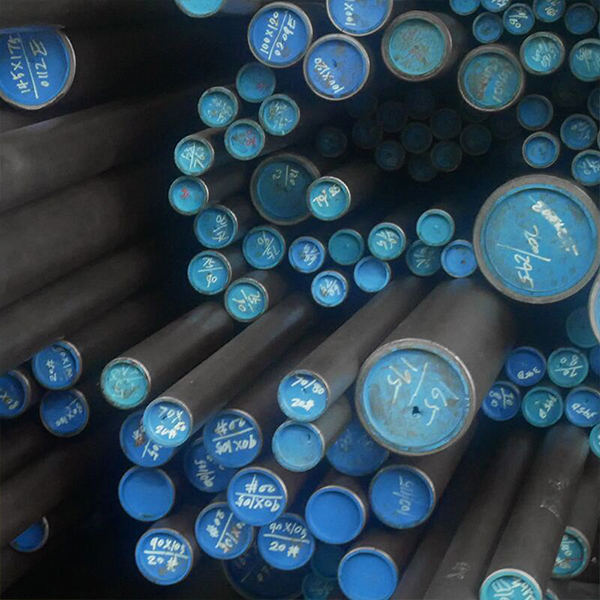

Packed in plastic caps to protect the tube ends
Wrapped in anti-rust VCI film or oiled paper
Bundled with steel straps and labeled with identification tags
Optional wooden cases or steel frames for export packaging
Delivered with mill test certificates, inspection reports, and shipping documents
Lead times typically range from 7 to 20 days depending on order size and custom requirements. We support FOB, CIF, and DDP delivery terms.
We understand that your application may demand specific configurations. That’s why we offer:
Custom lengths and diameters
Precision cut-to-length service
Bore honing or chrome plating (upon request)
Welded end caps or thread machining
Stamping and marking with heat numbers or logos
Contact our sales team for technical support or to discuss your custom needs.
As a specialized supplier with over 20 years of experience in the hydraulic industry, we offer:
We source CK45 steel only from certified mills with strict control over carbon content and purity.
Our plant is equipped with fully automated skiving & roller burnishing machines, laser straightness testers, and CNC length cutting lines.
Large stock availability of standard sizes and a strong monthly output capacity ensures timely delivery, even for urgent orders.
Every tube is individually inspected, and we provide complete traceability with mill test certificates and dimensional reports.
We have served customers across Europe, North America, Southeast Asia, and the Middle East, with excellent feedback on quality and service.
Whether you need small-batch samples or large-scale orders, our team is ready to assist. Send us your inquiry including:
Required OD / ID / wall thickness
Length per piece
Quantity
Application details (if available)
Surface treatment preferences
We'll respond within 24 hours with a competitive offer.
Let us support your business with precision tubes you can rely on.
