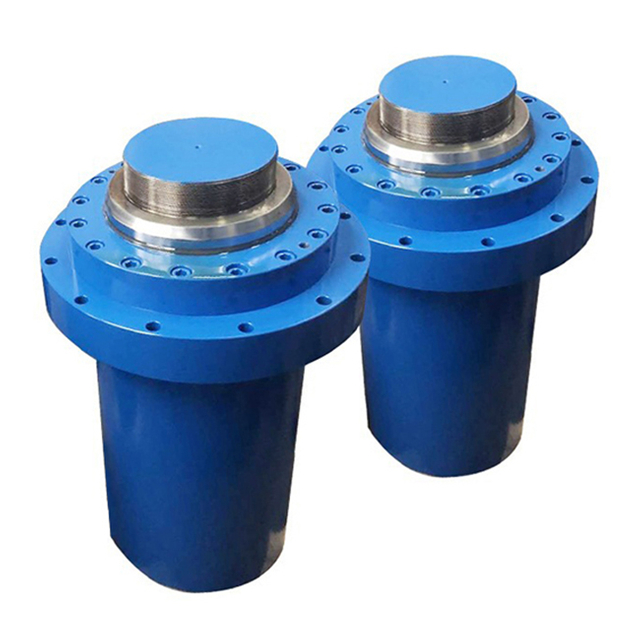

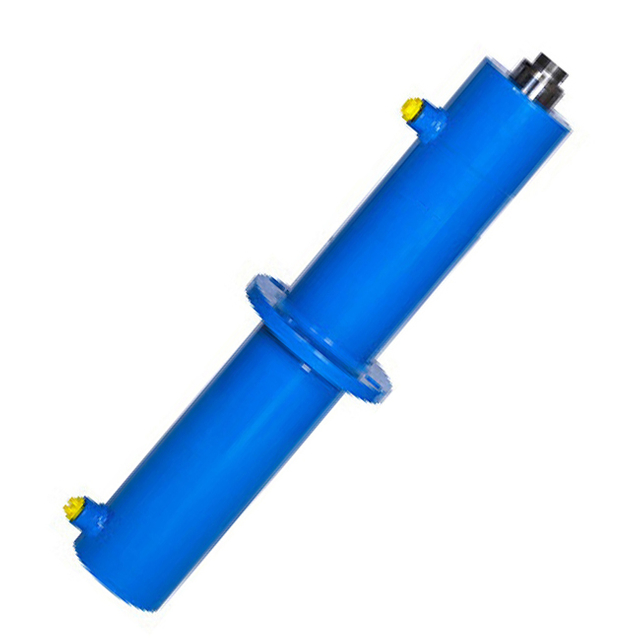

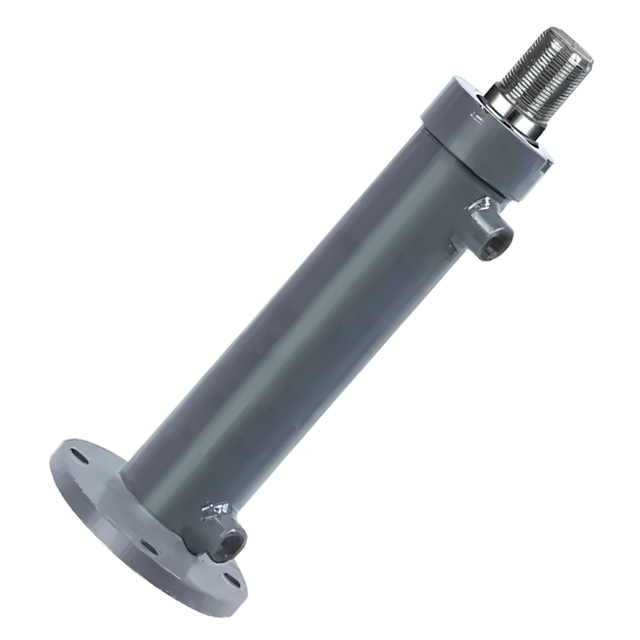

What is a Flange Mounted Hydraulic Cylinder?
A Flange Mounted Hydraulic Cylinder is a type of hydraulic actuator that is installed using a flange at one end for secure mounting.
The flange provides stability and precise alignment, making it suitable for applications where the cylinder must be fixed firmly to a machine frame.
These cylinders are commonly used in industrial machinery, material handling equipment, and construction applications.
LSI keywords include “hydraulic actuator,” “flange mounting cylinder,” and “industrial hydraulic cylinder.”
How does a Flange Mounted Hydraulic Cylinder work?
Hydraulic fluid is pumped into the cylinder, generating pressure that moves the piston rod outward or inward depending on the configuration.
The flange mount ensures that the cylinder remains securely in place while transmitting force efficiently.
This design provides controlled linear motion for lifting, pushing, pulling, or pressing operations in various machinery.
LSI keywords include “linear actuator,” “piston rod movement,” and “industrial hydraulic actuator.”
What are the common applications of Flange Mounted Hydraulic Cylinders?
These cylinders are widely used in presses, injection molding machines, packaging equipment, and assembly line machinery.
They are also suitable for automotive lifts, material handling systems, and industrial automation equipment.
Flange mounting ensures precise positioning and secure attachment, which is critical for heavy-duty or high-precision applications.
LSI keywords include “industrial hydraulic actuator,” “mounted hydraulic cylinder,” and “mechanical lifting cylinder.”
What are the main advantages of Flange Mounted Hydraulic Cylinders?
They provide stable mounting and precise alignment, improving operational accuracy.
The flange design allows for easy installation and maintenance in industrial equipment.
These cylinders are versatile, durable, and capable of handling medium to heavy loads reliably.
Compared to other mounting types, flange mounting reduces misalignment and stress on the cylinder and connected machinery.
What materials are used in Flange Mounted Hydraulic Cylinders?
Cylinder bodies are typically made from high-strength steel or alloy steel to handle hydraulic pressure.
Piston rods are chrome plated to resist wear, corrosion, and reduce friction with seals.
Seals and gaskets are usually made from synthetic rubber or polyurethane to ensure tight sealing and long service life.
LSI keywords include “chrome plated piston rod,” “industrial hydraulic cylinder,” and “flange mount actuator components.”
How should Flange Mounted Hydraulic Cylinders be maintained?
Regular inspection of the cylinder rod and mounting flange is essential to detect scratches, corrosion, or wear.
Hydraulic fluid must remain clean and replaced periodically to prevent seal damage and maintain performance.
Lubrication of moving parts and careful handling reduce friction and extend cylinder life.
Proper alignment and tightening of flange bolts are necessary to maintain stability and prevent misalignment.
LSI keywords include “hydraulic cylinder maintenance,” “industrial actuator servicing,” and “flange mounted cylinder care.”
What is the difference between Flange Mounted and Other Hydraulic Cylinder Mountings?
Flange mounted cylinders are installed via a flat flange, providing stable and precise attachment.
Other mounting types, such as clevis, trunnion, or foot-mounted cylinders, use pins or bolts differently, which may allow more flexibility but less rigid alignment.
Flange mounting is ideal for applications requiring minimal misalignment and high precision.
LSI keywords include “hydraulic cylinder mounting types,” “industrial actuator comparison,” and “flange vs clevis cylinder.”
Can Flange Mounted Hydraulic Cylinders be customized?
Yes, these cylinders can be customized in terms of bore size, stroke length, operating pressure, and flange dimensions.
Piston rods, chrome plating, and seal types can also be tailored to meet specific industrial machinery requirements.
Custom configurations ensure compatibility with presses, lifting systems, and other heavy-duty hydraulic equipment.
LSI keywords include “custom hydraulic cylinder,” “industrial flange mount actuator,” and “hydraulic system customization.”
