Front Flange Mounted Hydraulic Cylinder offers a secure, face-mounted installation ideal for machines requiring stable and precise force. Suitable for heavy-duty loads, it can be customized for various applications with competitive hydraulic cylinder prices.
Front Flange
EAST AI
Product Description

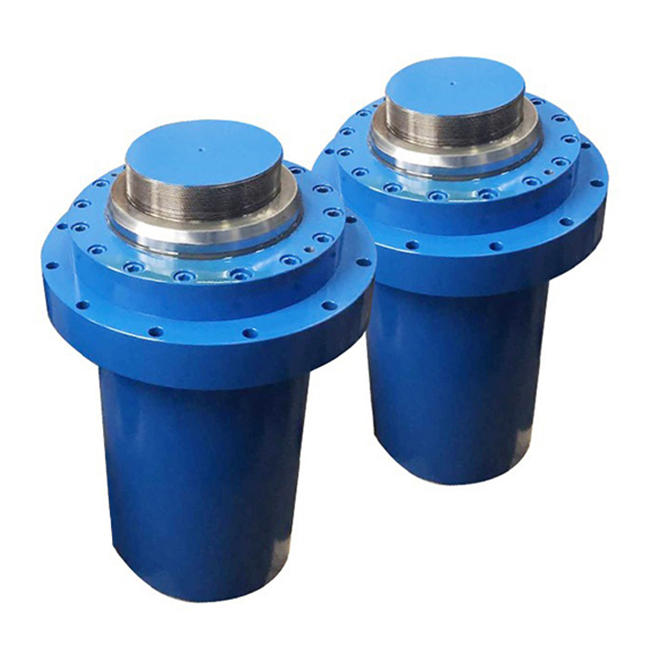

Front Flange Mounted Hydraulic Cylinder is designed for secure and fixed mounting applications, where the front face of the cylinder is bolted directly to the machine frame. This mounting style ensures high stability, especially when handling heavy or unidirectional loads.
Whether you're operating in industrial presses, construction machinery, or automated systems, this type of cylinder ensures minimal deflection and maximum alignment precision. It is ideal for both horizontal and vertical use, especially in situations requiring a large hydraulic cylinder for sustained and controlled movement.
As a custom hydraulic cylinder, this model can be tailored in stroke length, bore size, rod diameter, mounting type, and working pressure—helping users optimize space, force requirements, and performance. Despite its precision features, the hydraulic cylinder price remains competitive for OEMs and system integrators.
| Parameter | Details |
|---|---|
| Mounting Style | Front Flange (ISO, SAE, or custom dimensions) |
| Bore Size Range | 32 mm – 400 mm |
| Stroke Length | 50 mm – 3000 mm (customizable) |
| Working Pressure | Up to 300 bar (4350 PSI) |
| Rod Material | Chrome-plated carbon steel / alloy steel |
| Tube Material | Honed steel / seamless precision tubing |
| Seal Brands | Parker, Hallite, NOK (optional) |
| Coating Options | Painted, zinc-plated, powder-coated |
| Customization | Yes (stroke, ports, mount, thread, seal kits) |
| Applications | Machine tools, presses, lifting platforms, OEM |
High Mounting Stability
The front flange bolting structure ensures fixed alignment during operation, minimizing side load and cylinder movement.
Ideal for Heavy-Duty Use
Especially suitable for large hydraulic cylinder needs in presses, jacks, and steel machinery.
Customizable for Versatility
Dimensions, ports, rod ends, and pressure ratings can all be tailored—making it a top choice for custom hydraulic cylinder users.
Compatible with Automation
Supports sensors, limit switches, and feedback systems to integrate into intelligent equipment.
Cost-Effective Engineering
Delivers a long lifespan, low maintenance rate, and attractive hydraulic cylinder price compared to imported options.
Hydraulic presses and forming machines
Agricultural and earth-moving equipment
Construction hoists and lifting platforms
Steel cutting and bending machines
Industrial automation lines
OEM equipment and special-purpose machines
This Front Flange Mounted Hydraulic Cylinder ensures accurate and powerful movement—perfect for demanding applications where equipment design space is fixed and cylinder positioning must remain stable under load.
Rigid face-mount ensures stability under high pressure
Fully supports custom development for OEM machinery
Easy integration with mounting brackets and base plates
High resistance to contamination and side load
Excellent durability-to-hydraulic cylinder price ratio
