Center Flange Mounted Cylinder

Center Flange Mounted Cylinder is a space-efficient actuator offering stable central mounting. Known for its durability, Center Flange Hydraulic Cylinder Compact Design is ideal for OEMs and mobile equipment requiring precise linear force.

Model:
Flange Type
Brand:
EAST AI


Availability:



Inquire

Product Description

Center Flange Mounted Cylinder: Precision and Balance for Demanding Systems

Center Flange Mounted Cylinder is a hydraulic actuator with a flange located in the middle of the barrel body. This centralized mounting structure offers balanced force distribution, excellent axial alignment, and superior stability in dynamic applications.

The center flange allows the cylinder to be securely fixed at its midpoint while the piston extends and retracts symmetrically on either side. It is especially favored in Center Flange Hydraulic Cylinder Mobile Equipment, such as lifting platforms, vehicle-mounted systems, and construction tools where space-saving and centralized control are key.

Its compact design makes it ideal for horizontal or vertical use in confined environments. Combined with double-acting or single-acting configurations, this cylinder ensures long service life and smooth performance under continuous load.

Technical Specifications

Parameter	Details
Product Type	Center Flange Mounted Hydraulic Cylinder
Mount Type	Mid-barrel (center) flange
Bore Range	40 mm – 250 mm
Stroke Range	50 mm – 2000 mm (customizable)
Operating Pressure	Up to 300 bar
Rod Material	Induction hardened & chrome-plated steel
Barrel Material	ST52/20# high-strength seamless steel
Seal Options	Hallite, Parker, NOK high-pressure seals
Action	Single-acting or Double-acting
Applications	Industrial equipment, mobile machinery, presses

Key Features of Center Flange Hydraulic Cylinder Compact Design

Centralized Load Distribution
The center flange design evenly distributes mechanical load, reducing bending stress on both ends.
Space-Efficient Configuration
Flange mounting in the middle of the body supports tight installations in compact design systems.
Symmetrical Stroke Motion
Ideal for precise control in Center Flange Hydraulic Cylinder Mobile Equipment like dump trailers or stabilizers.
Stable Mounting
Center flange prevents vibration and side load, ensuring smooth operation and reduced component wear.
Customizable Dimensions
Bore, stroke, thread, and port direction can all be tailored to system requirements.

Where It's Used

Mobile lifting platforms
Truck-mounted cranes and stabilizers
Road construction rollers and pavers
Industrial presses and automated handling lines
Trailer tilting mechanisms

Why Choose Center Flange Mounted Cylinders?

Balanced mounting with minimal vibration
Enhanced durability under side or shock loading
ISO or DIN flange interface options available
Optimized for both mobile and stationary systems
Competitive pricing from reliable global suppliers

FAQ

FAQs

What is a Center Flange Mounted Cylinder used for?

It’s used in systems requiring symmetrical movement and strong central mounting support. Common in lifting devices, mobile machinery, and presses.
How does a Center Flange compare to Rear or Front Flange types?

Unlike rear or front flange cylinders, the Center Flange Mounted Cylinder balances forces more evenly, reducing the risk of misalignment and improving structural integrity.
Is this cylinder suitable for mobile equipment?

Yes. The Center Flange Hydraulic Cylinder Mobile Equipment application is one of its strengths. It fits well in trailers, truck lifts, and other mobile systems due to its compact and balanced design.
Can the flange dimensions be customized?

Absolutely. We support both ISO standard and custom center flange dimensions to match your installation layout.
What are the benefits of the compact design?

The Center Flange Hydraulic Cylinder Compact Design offers simplified integration, lower space requirements, and less weight—ideal for OEM system builders and mobile setups.

Related Products

Rear Flange Mounted Cylinder

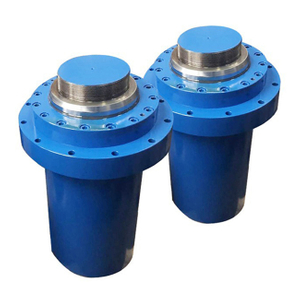

Front Flange Mounted Hydraulic Cylinder
