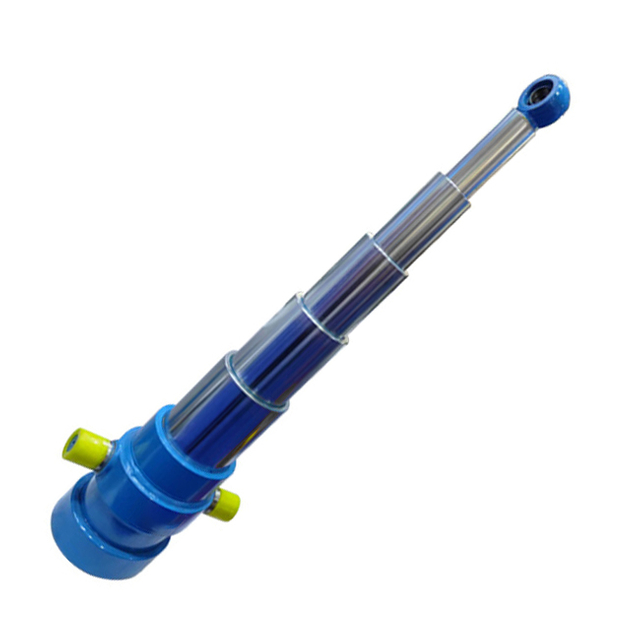

A Multistage Hydraulic Cylinder is a type of hydraulic actuator designed with multiple nested stages that extend sequentially to provide a long stroke.
Each stage is hydraulically controlled, allowing a compact retracted length while achieving maximum extension when needed.
These cylinders are commonly used in dump trucks, telescopic lifts, construction machinery, and material handling equipment.
LSI keywords include “telescopic hydraulic cylinder,” “multi-stage piston rod,” and “industrial hydraulic actuator.”
Hydraulic fluid is pumped into the cylinder, creating pressure that extends each stage in sequence, starting from the largest to the smallest.
The piston rods move outward, one after another, to achieve the desired overall extension.
Upon releasing hydraulic pressure, the stages retract in the reverse order, often assisted by gravity or hydraulic back pressure.
This design allows a high extension-to-retracted-length ratio, saving installation space in compact machinery.
LSI keywords include “hydraulic actuator,” “multi-stage extension,” and “piston movement.”
Multistage hydraulic cylinders are widely used in dump trucks, refuse trucks, aerial lifts, cranes, and construction machinery.
They are also applied in industrial automation, agricultural equipment, and mobile material handling systems.
The long stroke capability combined with compact retracted size makes them ideal for heavy-duty lifting, tilting, and telescopic applications.
LSI keywords include “telescopic lift cylinder,” “hydraulic piston actuator,” and “industrial multi-stage cylinder.”
They provide long strokes with minimal installation space, which is crucial for compact machinery.
Sequential stage extension ensures smooth operation and controlled motion under heavy loads.
They are durable, reliable, and capable of handling repetitive cycles in industrial and mobile applications.
Compared to single-stage cylinders, multistage designs offer higher versatility, space efficiency, and load capacity.
Cylinder stages are typically made from high-strength alloy steel or carbon steel for optimal load-bearing capacity.
Piston rods are often chrome plated to resist corrosion, reduce friction, and extend service life.
Seals and gaskets are manufactured from polyurethane or synthetic rubber to maintain hydraulic tightness and reliability.
LSI keywords include “chrome plated piston rod,” “industrial hydraulic cylinder,” and “multi-stage actuator components.”
Regular inspection of each cylinder stage is essential to detect scratches, wear, or corrosion on piston rods.
Hydraulic fluid must remain clean and replaced periodically to prevent seal damage and maintain performance.
Lubrication and cleaning of moving components reduce friction and prolong cylinder life.
Proper storage and careful handling prevent deformation and extend the operational reliability of the multistage system.
LSI keywords include “hydraulic cylinder maintenance,” “industrial actuator servicing,” and “multi-stage hydraulic care.”
Standard hydraulic cylinders consist of a single stage and have a limited stroke, requiring more installation space for long travel.
Multistage cylinders consist of nested stages, allowing long strokes while remaining compact when retracted.
Multistage cylinders are preferred in applications where space-saving, high reach, and efficient load handling are critical.
LSI keywords include “telescopic hydraulic actuator,” “multi-stage piston system,” and “long stroke hydraulic cylinder.”
Yes, these cylinders can be customized for the number of stages, stroke length, bore size, mounting style, and operating pressure.
Piston rods, chrome plating thickness, and seal types can also be tailored to meet specific industrial or mobile equipment requirements.
Custom designs ensure compatibility with construction machinery, agricultural implements, and material handling equipment.
LSI keywords include “custom hydraulic cylinder,” “industrial multi-stage actuator,” and “telescopic cylinder customization.”
