Hollow Chrome Plated Rod
EAST AI
42CrMo4
Max. 15m
H8
Product Description

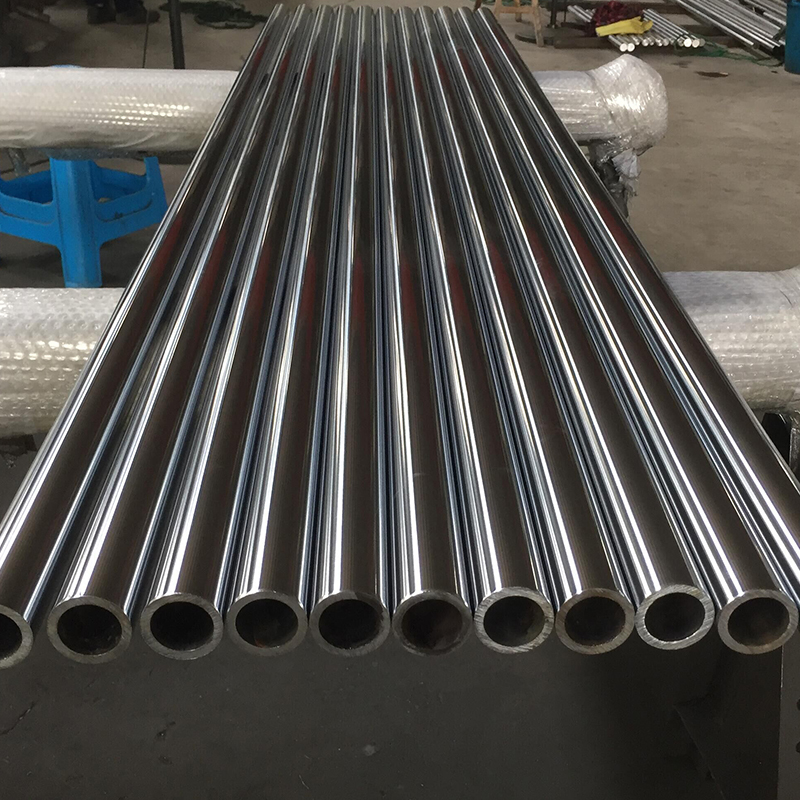

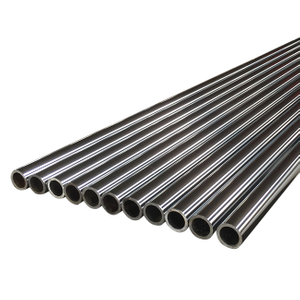

42CrMo4 Hollow Chrome Plated Rod H8 is a high-strength, precision-machined tubular steel shaft engineered for dynamic hydraulic and mechanical systems. Made from alloy steel (42CrMo4), this product is quenched and tempered to increase core strength and then chrome plated to improve wear resistance and corrosion protection.
Its hollow design significantly reduces overall weight while maintaining high mechanical performance, making it ideal for applications where space and efficiency matter. The H8 inner diameter tolerance ensures consistent clearance and seamless integration with matching components, such as rods, guide sleeves, or pistons.
This product serves as a durable Hollow Chrome Plated Shaft, a robust Hollow Chrome Cylinder Rod, or a high-precision Hollow Chrome Linear Shaft across various industries.
| Property | Specification |
|---|---|
| Material | 42CrMo4 Alloy Steel (DIN EN 10083) |
| Heat Treatment | Quenched and Tempered |
| Outer Diameter Tolerance | ISO f7 |
| Inner Diameter Tolerance | ISO H8 |
| Chrome Layer Thickness | 20–30 μm |
| Surface Hardness | HRC 50–60 |
| Surface Roughness | Ra ≤ 0.2 μm |
| Tensile Strength | ≥ 900 MPa |
| Yield Strength | ≥ 650 MPa |
| Max Length | Up to 6 meters (custom available) |
| Roundness Deviation | ≤ 0.02 mm |
High Strength-to-Weight Ratio
The hollow design reduces mass without compromising strength. Ideal for lifting systems and mobile hydraulics.
Excellent Fatigue and Impact Resistance
Quenched and tempered 42CrMo4 ensures durability in high-pressure or shock-loaded applications.
Corrosion and Wear Protection
The hard chrome surface provides long-lasting resistance to abrasion, chemicals, and humidity.
Smooth Finish with Tight Tolerances
OD tolerance of f7 and ID tolerance of H8 ensure seamless fit for seals and linear motion assemblies.
Versatile Use Cases
Suitable as a Hollow Chrome Plated Shaft, Hollow Chrome Cylinder Rod, or Hollow Chrome Linear Shaft.
Hydraulic and pneumatic Hollow Cylinder Rods
Telescopic cylinders and space-constrained cylinders
Agricultural and construction equipment
Offshore or marine hydraulic systems
Industrial automation and material handling
Robotics, crane booms, and lifting platforms
The 42CrMo4 Hollow Chrome Plated Rod H8 is especially valued where performance, reduced weight, and precise fit are required.
Reduced weight improves efficiency in mobile and robotic systems
Precision machining ensures better seal life and lower maintenance
Excellent chrome adhesion for corrosion protection
Ideal for dynamic loads and high-pressure movement
Customizable in OD, ID, and length for OEMs or cylinder manufacturers
