Hydraulic cylinder failure is rarely an unexpected event. In most cases, the equipment provides early warning signs before the cylinder completely loses function. Slower movement, oil leakage, unstable positioning, unusual noise, and reduced working force are often indications that internal problems have already started developing.
For equipment manufacturers and end users, understanding these early signals is important because hydraulic cylinder problems can affect the entire machine operation. A failed cylinder may stop production, increase maintenance costs, and create unexpected downtime.
Many hydraulic failures are not caused by a single defective component. They usually result from a combination of factors, including operating environment, component quality, system contamination, incorrect selection, and insufficient maintenance.
A reliable maintenance strategy begins by understanding why hydraulic cylinders fail and how these problems can be prevented before they become serious.

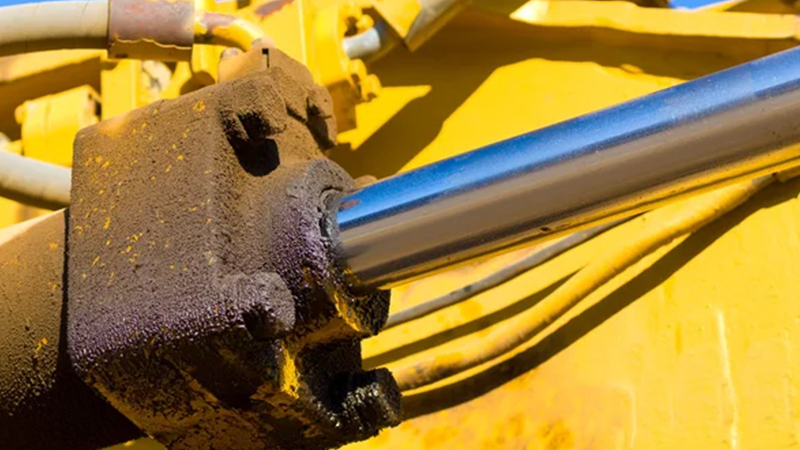

Hydraulic leakage is one of the most frequently encountered problems in hydraulic cylinder applications. External leakage is usually easy to identify because hydraulic oil appears around the rod area, while internal leakage can be more difficult because there may be no visible oil loss.
Internal leakage often results in reduced cylinder performance. Operators may notice that the cylinder cannot hold its position, movement becomes slower, or the equipment loses efficiency even though there is no obvious external damage.
Seal wear is a common reason for leakage, but the root cause is not always the seal itself. Rod surface condition, cylinder tube accuracy, contamination, and operating conditions all influence sealing performance.
A reliable hydraulic cylinder requires every component to work together. The sealing system can only perform correctly when the rod and tube provide the proper working environment.

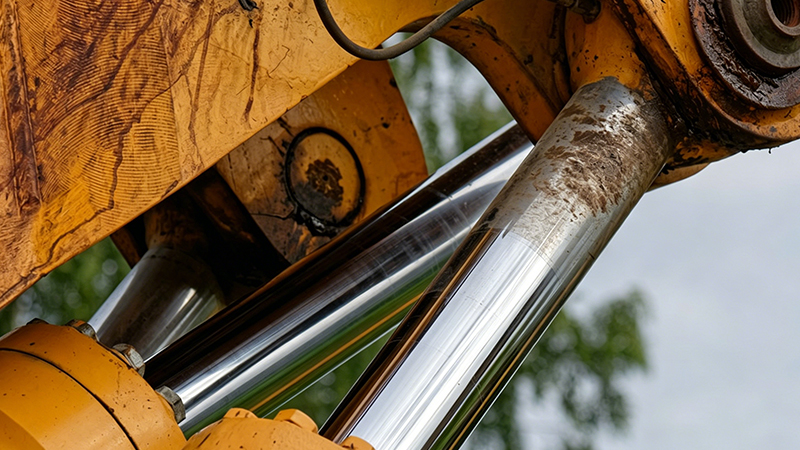

The piston rod is one of the most exposed components in a hydraulic cylinder because it repeatedly moves between the internal cylinder environment and external working conditions. During operation, the rod may encounter dust, moisture, chemicals, impact, and abrasive particles.

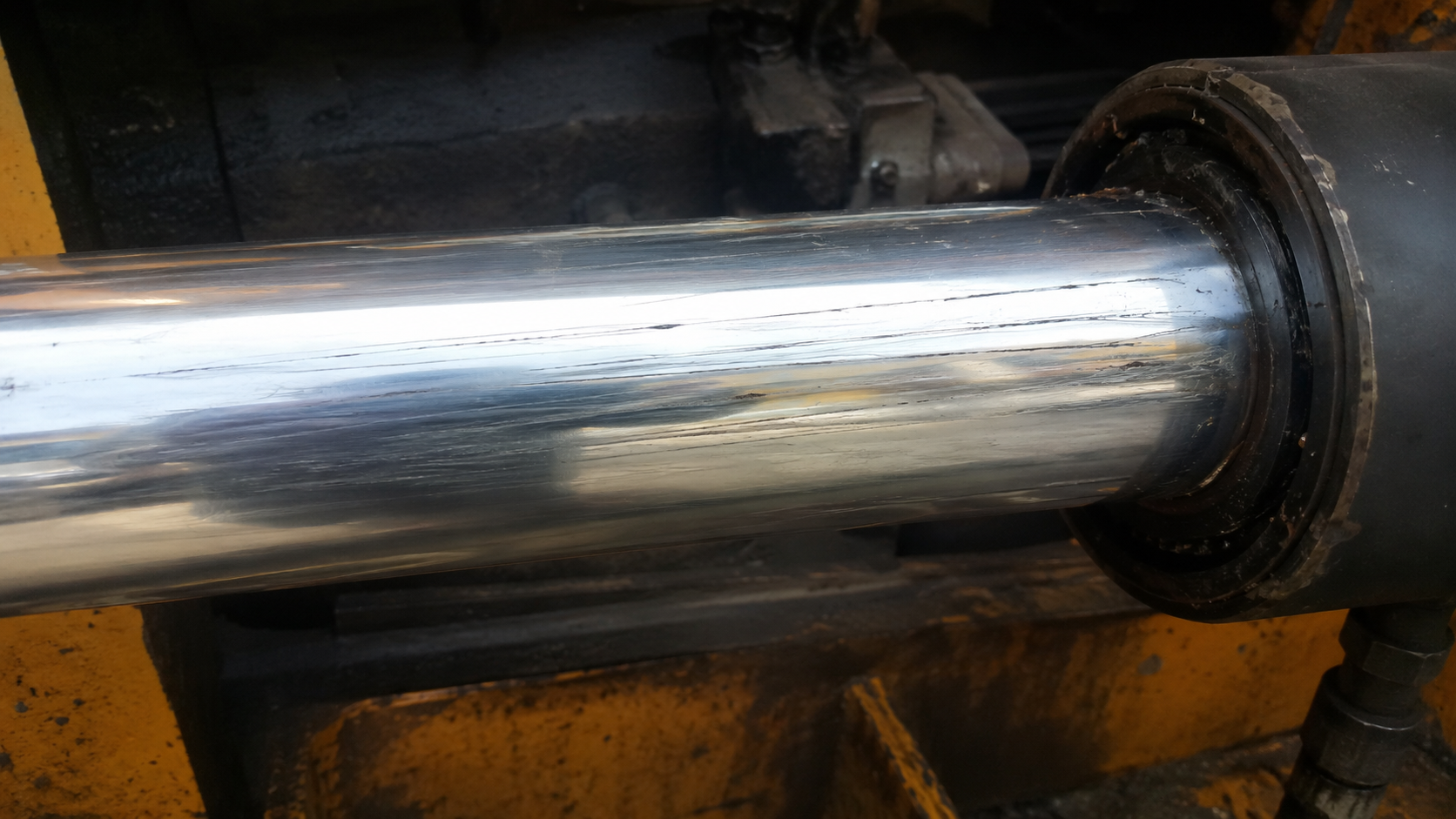

Surface damage on the rod can gradually affect sealing performance. Small scratches, corrosion marks, or uneven surface conditions may accelerate seal wear because the damaged area repeatedly passes through the sealing system.
This problem is especially common in construction machinery, mining equipment, and outdoor hydraulic applications where cylinders operate in harsh environments.
A high-quality Chrome Plated Rod helps provide better wear resistance and corrosion protection. However, reliable performance depends not only on chrome thickness but also on base material quality, straightness, surface finish, and manufacturing consistency.
Another common hydraulic cylinder problem is gradual performance reduction. The equipment may still operate, but the cylinder movement becomes slower, less stable, or unable to achieve the original working speed.
Several factors can contribute to this issue, including internal leakage, contaminated hydraulic oil, incorrect system pressure, worn components, or unsuitable cylinder specifications.
For OEM manufacturers, performance reduction can create customer complaints because the machine may no longer deliver the expected productivity. A cylinder that requires excessive hydraulic power or operates inefficiently increases the total operating cost of the equipment.
Preventing performance decline requires attention to the complete hydraulic system rather than replacing individual parts after failure occurs.
Hydraulic cylinders do not only experience hydraulic pressure. They also operate as mechanical components that must withstand external forces generated by the equipment structure.
Rod bending, cylinder deformation, and mounting damage can occur when the cylinder is exposed to loads beyond its design capability. Incorrect installation, side loading, insufficient rod diameter, or unsuitable mounting conditions can gradually create mechanical stress.
This is especially important for long-stroke cylinders used in heavy machinery. The extended rod section must maintain stability during movement because excessive bending can damage seals, reduce alignment accuracy, and shorten service life.
Proper hydraulic cylinder design requires considering both hydraulic performance and mechanical loading conditions.

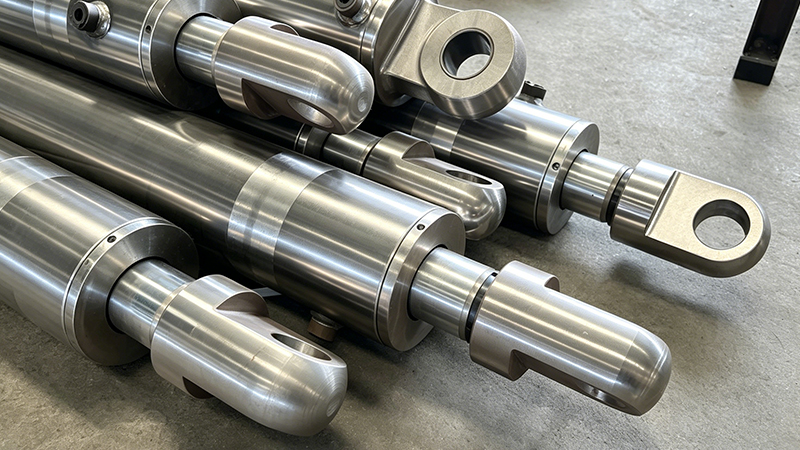

A hydraulic cylinder is a complete system made from multiple precision components. The tube, rod, piston, seals, and supporting parts must work together to achieve stable performance.
The Honed Tube provides the internal surface where the piston and seals operate. Its dimensional accuracy, surface condition, and consistency directly influence friction, sealing performance, and cylinder durability.
The Chrome Plated Rod provides the external working surface that interacts with the sealing system and the outside environment. Its quality affects wear resistance, corrosion protection, and long-term reliability.
For this reason, hydraulic cylinder manufacturers often focus on supplier consistency rather than only individual component prices. Stable production quality reduces unexpected failures during equipment operation.
Preventing hydraulic cylinder failure requires a combination of correct design, proper component selection, and regular maintenance. A cylinder designed for heavy equipment must match the actual working environment, load conditions, and expected service life.
Equipment manufacturers should evaluate factors such as operating temperature, contamination risk, working frequency, and external forces before selecting cylinder components. A solution that works well in a controlled factory environment may not perform reliably in mining or construction applications.
Working with experienced component suppliers can also reduce failure risks because reliable suppliers understand how material quality, manufacturing accuracy, and application requirements influence cylinder performance.
Prevention is always more economical than repairing equipment after unexpected failure.
For OEM customers, choosing a hydraulic cylinder component supplier is not only a purchasing decision. It is a reliability decision that affects the final performance of the equipment.
A capable supplier should provide stable manufacturing processes, consistent product quality, technical communication, and the ability to support long-term production requirements.
Many hydraulic cylinder problems begin because suppliers focus only on meeting specifications for one order. However, OEM manufacturers require consistent performance across thousands of components produced over time.
A reliable supplier helps equipment manufacturers reduce uncertainty, improve product quality, and build stronger customer confidence.
The most common problems include leakage, rod damage, slow movement, internal wear, and mechanical deformation. These failures are often related to component quality, operating conditions, and maintenance practices.
Seal failure can result from normal wear, contamination, incorrect pressure conditions, damaged rod surfaces, or poor cylinder alignment. The seal performance depends on the condition of the entire cylinder system.
Leakage can be reduced by selecting suitable components, maintaining clean hydraulic oil, controlling rod and tube quality, and performing regular equipment inspections.
Rod damage usually occurs because of corrosion, impact, contamination, poor surface quality, or unsuitable operating environments. Proper surface protection and component quality help extend service life.
Yes. Correct design, reliable components, proper maintenance, and selecting suitable suppliers can significantly reduce failure risks.
Hydraulic cylinders rely on precise interaction between multiple components. Small quality differences can affect sealing, friction, efficiency, and long-term reliability.
Hydraulic cylinder reliability depends on selecting the right components and controlling the factors that influence long-term performance.
EAST AI manufactures Honed Tubes and Chrome Plated Rods for hydraulic cylinder applications, supporting OEM manufacturers with precision production, stable quality, and reliable supply.
Choosing reliable components at the beginning helps reduce unexpected failures and improves equipment performance throughout the product lifecycle.
