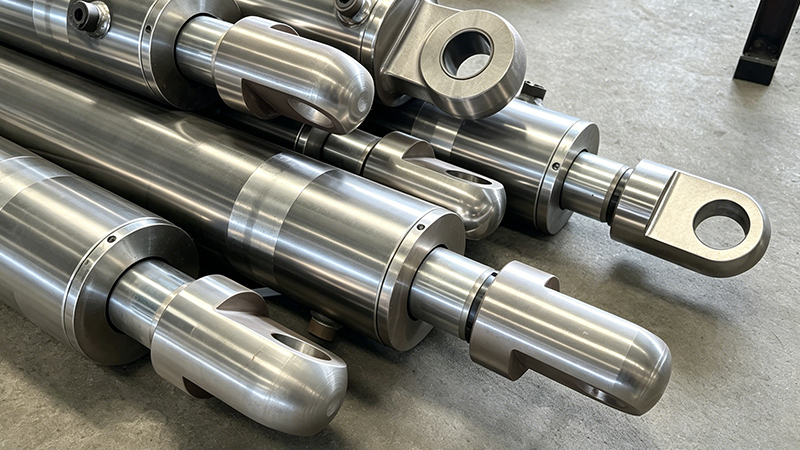

The hydraulic cylinder rod diameter is the outside diameter of the piston rod that transfers hydraulic force from the internal piston to the machine mechanism.
Although the piston rod may look like a simple component, its diameter has a direct relationship with cylinder strength, stability, weight, and overall design.
Selecting the correct rod diameter is therefore an important part of hydraulic cylinder engineering. A rod that is too small may not provide sufficient structural stability, while an unnecessarily large rod can increase cylinder weight, cost, and physical dimensions.
The correct diameter needs to match the actual operating conditions of the equipment.
The piston rod is exposed to mechanical loads every time the hydraulic cylinder operates. Depending on the application, it may experience tension, compression, bending forces, and repeated loading cycles.
Rod diameter influences the ability of the rod to withstand these forces. This becomes particularly important when cylinders are used in heavy equipment where external loads can be substantial.
For this reason, rod selection should consider more than hydraulic pressure. The mechanical forces acting on the cylinder must also be evaluated.
One of the most important considerations for a hydraulic cylinder rod is buckling under compression.
When a long piston rod is subjected to a high compressive load, its length-to-diameter relationship becomes increasingly important. A rod with insufficient diameter may be more susceptible to bending or instability.
This is why long-stroke hydraulic cylinders often require careful rod selection.
Engineers should evaluate load, unsupported rod length, mounting configuration, stroke, and operating conditions rather than choosing the rod diameter based only on the cylinder bore.
Bore and rod diameter serve different functions in a hydraulic cylinder.
The bore primarily determines the piston working area and therefore has a strong influence on cylinder force. The rod diameter is more closely related to mechanical strength, stability, and the structural requirements of the moving component.
A hydraulic cylinder therefore needs a suitable combination of bore and rod dimensions.
A large bore with an undersized rod may create structural problems, while an oversized rod can reduce the effective return-side piston area and increase cylinder weight.
Rod diameter can also influence hydraulic cylinder movement characteristics.
Because the rod occupies part of the piston area on the rod side, changing the rod diameter changes the effective hydraulic area available during retraction.
This means that rod diameter can affect the relationship between hydraulic flow and cylinder movement speed.
For equipment manufacturers, this is another reason why rod selection should be considered together with bore size, hydraulic flow, pressure, and required operating speed.
The piston rod does not operate in isolation. It repeatedly passes through the sealing and guiding system during cylinder movement.

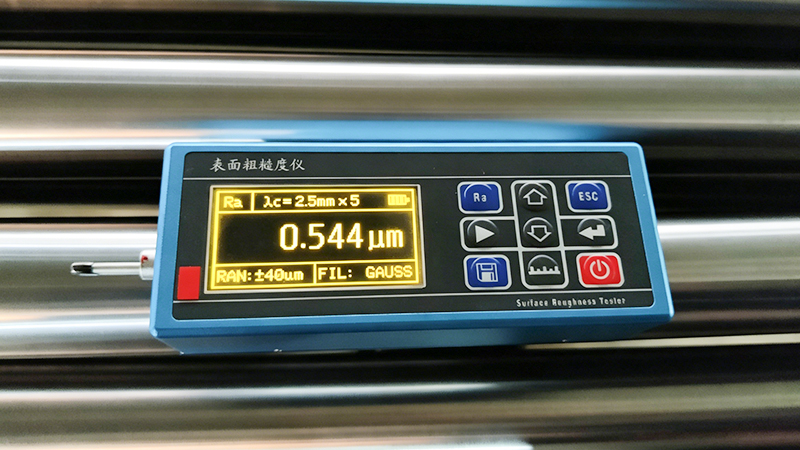

Its surface condition therefore plays an important role in friction, sealing behavior, wear, and protection against the external environment.

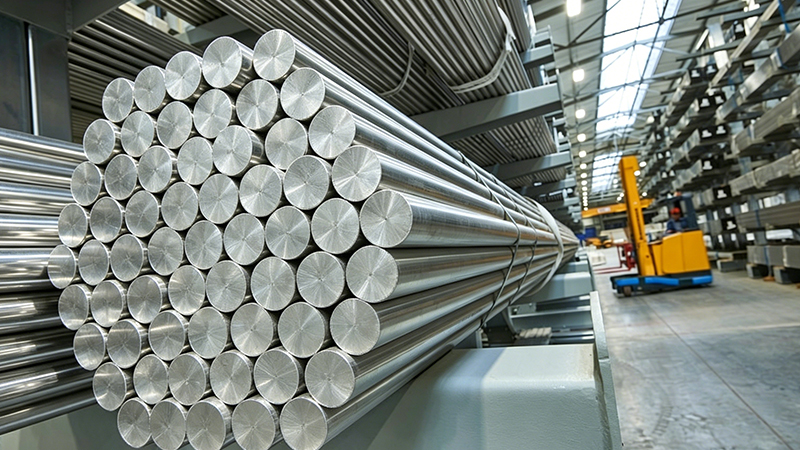

Chrome plated rods are widely used in hydraulic applications because the chrome-plated surface provides a hard working layer that supports wear and corrosion resistance.
The quality of the base rod and the consistency of the surface treatment both contribute to the final performance.
Heavy equipment often subjects hydraulic cylinders to high loads and repeated impact.
Excavators, loaders, cranes, mining equipment, and other machines can create significant mechanical forces that need to be considered when selecting piston rod dimensions.
A suitable rod diameter helps provide the required structural stability while maintaining a practical cylinder size.
For these applications, rod selection should be based on the complete machine movement and load conditions rather than relying only on standard cylinder dimensions.
Long-stroke cylinders deserve particular attention because increasing rod length can increase the risk of bending or buckling under compression.
As the unsupported length increases, the relationship between rod diameter and structural stability becomes more important.
This does not mean that every long-stroke cylinder requires an extremely large rod. Instead, the rod should be selected according to the actual load, mounting arrangement, stroke, and working conditions.
Proper engineering allows manufacturers to achieve the required strength without unnecessarily increasing component weight.
Rod diameter influences more than the rod itself.
The gland, seals, guide elements, mounting arrangement, and cylinder tube all need to accommodate the selected rod dimensions.
The sealing system must be matched to the rod surface and diameter. The guide system must provide suitable support during movement. The cylinder structure must be able to withstand the forces transferred through the rod.
This is why hydraulic cylinder design should be treated as a complete system rather than a collection of independent dimensions.

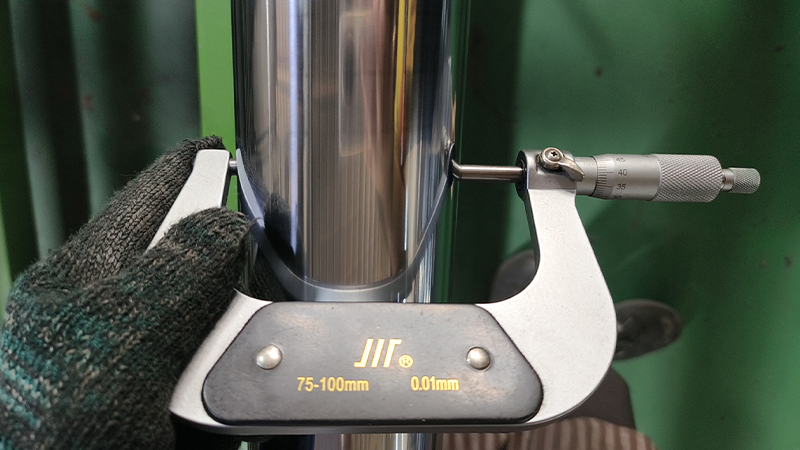

When purchasing piston rods for hydraulic cylinders, buyers should evaluate material, diameter, straightness, surface condition, chrome plating quality, dimensional consistency, and inspection capability.
For OEM production, consistency is particularly important because piston rods must remain compatible with the same cylinder design across repeated batches.
A reliable supplier should be able to maintain stable manufacturing quality while supporting the customer's dimensional and application requirements.
Standard rod diameters may be sufficient for many conventional hydraulic cylinders. However, custom equipment can require a different rod size because of unusual loads, long strokes, limited installation space, or special mechanical requirements.
In these cases, selecting the rod diameter according to the actual application can provide better performance than adapting the equipment around an unsuitable standard size.
Custom component selection is particularly useful for OEM manufacturers developing specialized machinery.
Rod diameter can affect structural strength, buckling resistance, cylinder weight, effective hydraulic area, and overall cylinder design.
A larger rod can improve structural strength and buckling resistance, but the correct size depends on load, stroke, mounting, and application conditions.
Chrome plated rods provide a hard working surface with good wear and corrosion resistance and are designed to work with hydraulic cylinder sealing systems.
Yes. Bore and rod diameter need to be considered together because they affect force, structural stability, effective hydraulic area, and cylinder dimensions.
Longer rods can be more susceptible to bending or buckling under compression, making appropriate diameter selection increasingly important.
Hydraulic cylinder rod diameter is an engineering decision that needs to match load, stroke, bore, mounting, and operating conditions.
EAST AI supplies precision chrome plated rods for hydraulic cylinder applications, supporting OEM manufacturers with stable production and consistent component quality.
