When selecting a hydraulic cylinder, many engineers focus on force output, bore size, and stroke length. However, working pressure is one of the most important parameters because it determines how much hydraulic force the cylinder can generate and how the internal components must be designed.
Hydraulic cylinder performance depends on the relationship between pressure, cylinder size, material strength, sealing capability, and operating conditions. A cylinder designed for insufficient pressure requirements may experience reduced performance, while a design that exceeds practical requirements can increase cost and unnecessary stress on components.
For equipment manufacturers, pressure selection is not simply a specification choice. It is an engineering decision that affects reliability, service life, maintenance requirements, and the overall performance of the machine.
A properly selected working pressure allows the hydraulic cylinder to operate efficiently while maintaining long-term stability.
Hydraulic cylinders usually involve several different pressure ratings, including working pressure, maximum operating pressure, and test pressure. These values represent different conditions and should not be treated as the same parameter.
Working pressure refers to the normal pressure range that the cylinder is designed to handle during regular operation. Maximum pressure represents the upper limit that the cylinder may experience under specific conditions, while test pressure is used during manufacturing inspection to verify structural strength.
Understanding these differences is important because selecting components based only on maximum pressure can lead to unnecessary oversizing, increased cost, and inefficient system design.
Professional hydraulic engineers evaluate the complete operating cycle rather than focusing on one pressure value.
Pressure directly affects the mechanical requirements of a hydraulic cylinder. As operating pressure increases, the cylinder components must withstand greater internal forces and maintain stable performance during repeated cycles.

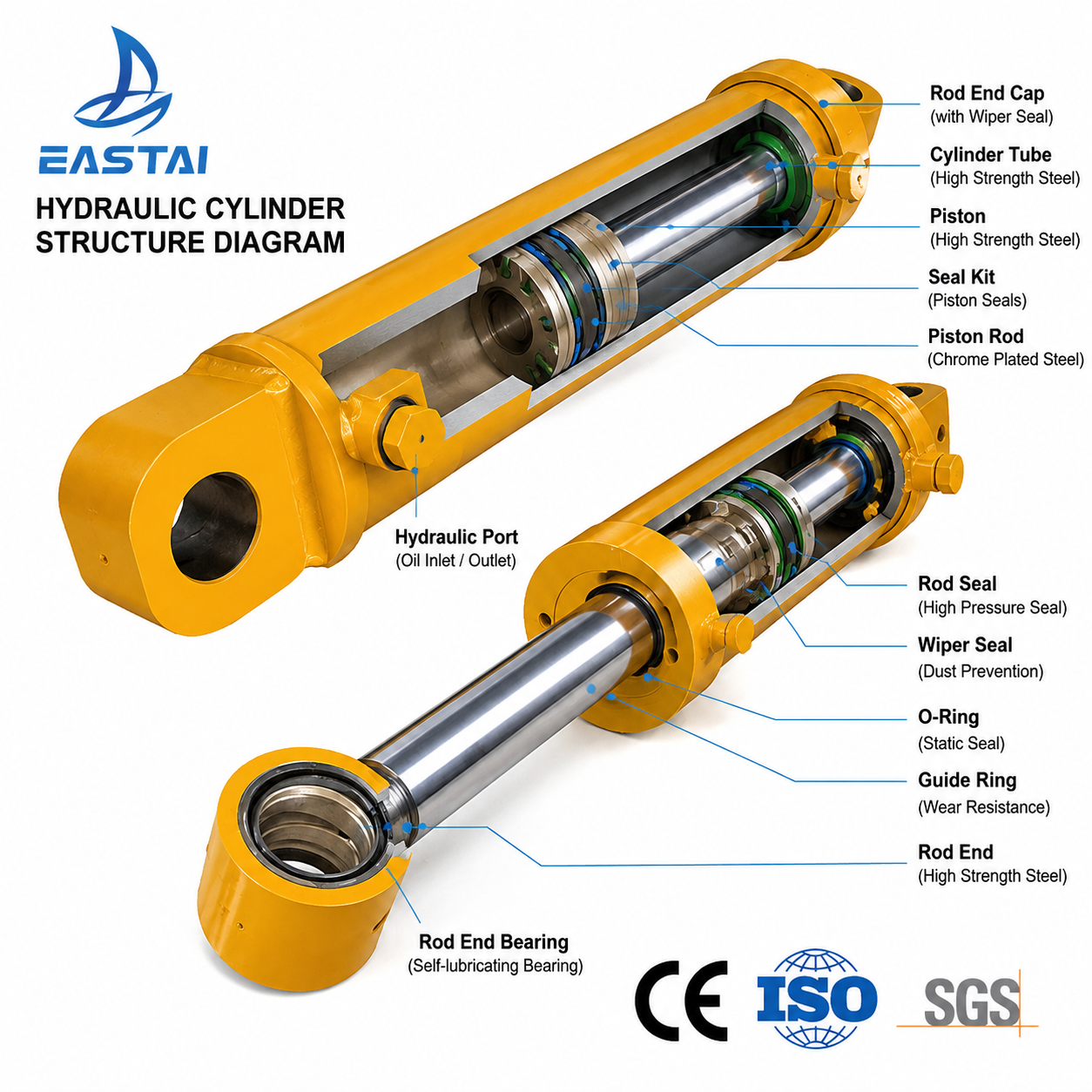

The cylinder tube, piston, seals, and rod all contribute to pressure resistance. Each component must be designed according to the expected working conditions to ensure safe and reliable operation.
For example, a high-pressure hydraulic system may require stronger materials, more precise manufacturing control, and improved sealing solutions compared with a lower-pressure application.
This is why hydraulic cylinder design is always a balance between pressure capability, efficiency, manufacturing requirements, and application needs.

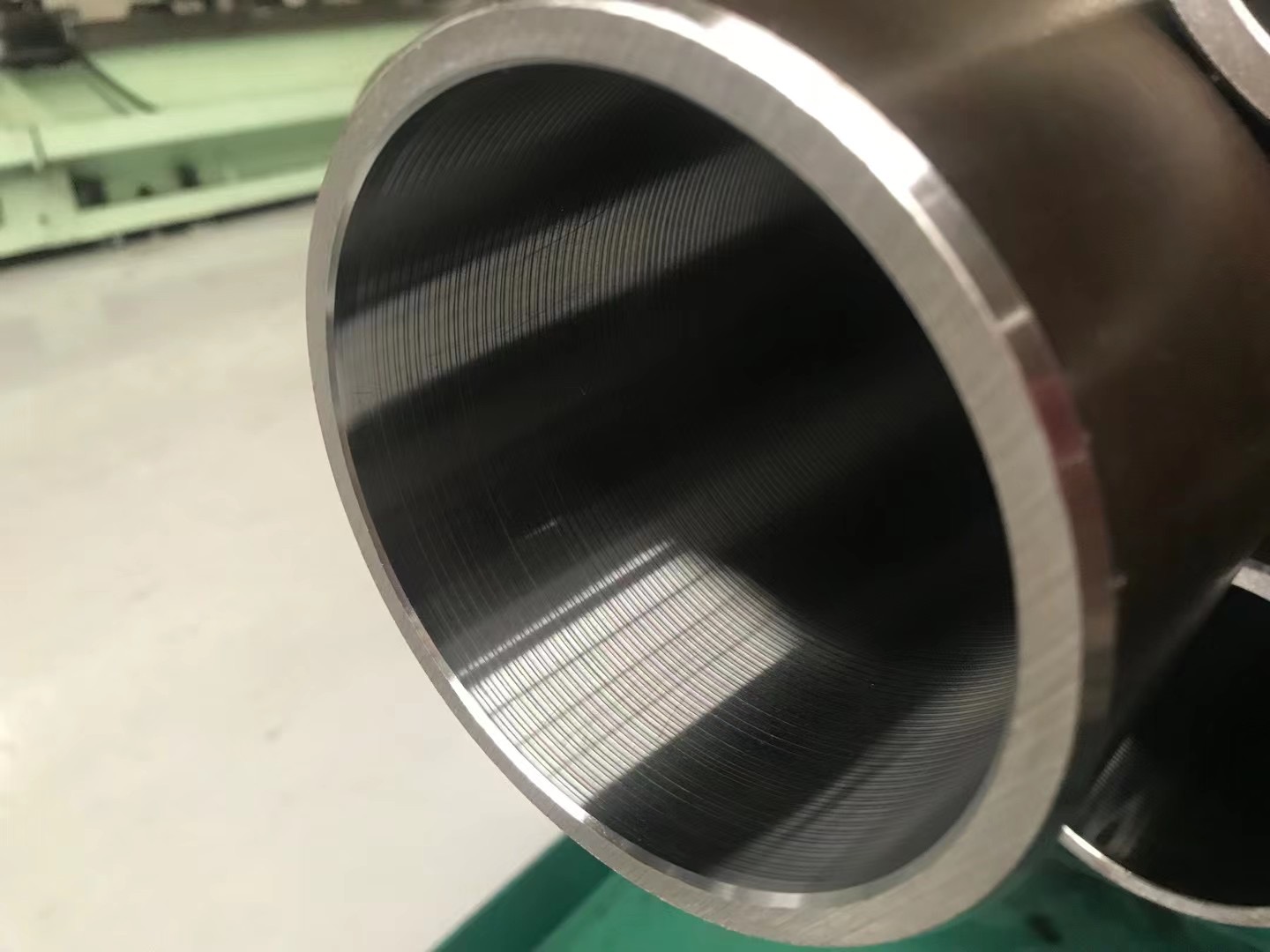

The cylinder tube is responsible for containing hydraulic pressure while providing a precise internal surface for piston movement. Because of this, tube quality directly influences pressure reliability.
During operation, the tube experiences continuous internal forces. If material properties, wall thickness, or dimensional accuracy are unsuitable, the cylinder may experience reduced durability or premature failure.

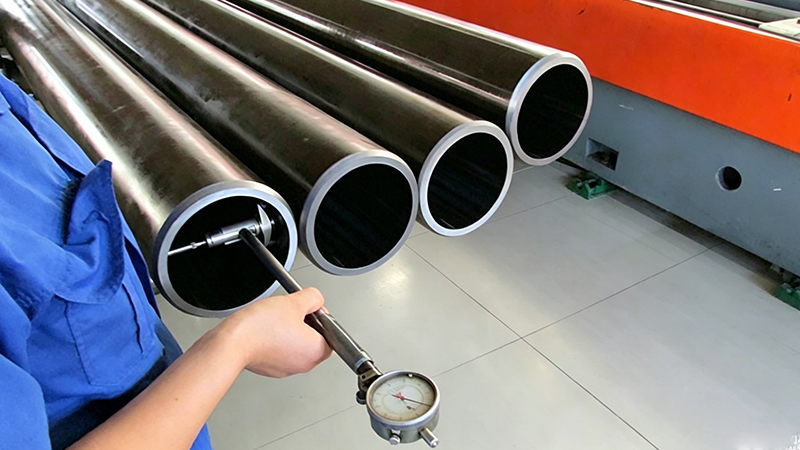

For hydraulic cylinder manufacturers, selecting a suitable tube is not only about meeting external dimensions. The internal quality, material consistency, and manufacturing accuracy all influence the final pressure performance of the cylinder.
A precision Honed Tube provides the controlled internal surface required for stable piston movement and reliable sealing under working pressure conditions.
Hydraulic seals must maintain separation between high-pressure and low-pressure areas while allowing smooth movement between components. As pressure increases, sealing requirements become more demanding.
Higher pressure can increase the force applied to sealing elements, creating greater requirements for seal material, installation accuracy, surface condition, and component compatibility.
If the sealing system is not properly matched to the pressure environment, problems such as leakage, increased friction, and accelerated wear may occur.
For this reason, hydraulic cylinder reliability depends on the complete relationship between pressure level, seal design, rod surface, and tube condition.
A common misunderstanding is that a higher-pressure hydraulic system always provides better performance. In reality, higher pressure is only beneficial when it matches the actual application requirements.
Increasing pressure can allow smaller cylinder dimensions while maintaining force output, but it also creates higher demands on components, manufacturing precision, and maintenance control.
For some applications, operating at unnecessarily high pressure can increase wear, reduce component life, and create additional system costs.
The best hydraulic solution is not the highest possible pressure. It is the pressure level that provides the required performance with reliable long-term operation.
Working pressure affects the stress level experienced by hydraulic cylinder components during every operating cycle. Over time, repeated pressure changes can influence wear, fatigue, and component durability.
Applications with frequent cycling require careful evaluation because even moderate pressure levels can create significant cumulative stress after thousands of movements.
This is especially important for industrial equipment, construction machinery, and mobile hydraulic systems where cylinders may operate continuously for long periods.
A reliable hydraulic cylinder design considers both the pressure level and the total operating environment.
For OEM equipment manufacturers, choosing the correct pressure rating requires understanding the complete machine application. Engineers must consider required force, operating frequency, environmental conditions, safety requirements, and expected service life.
A cylinder used in a factory automation system may have very different pressure requirements compared with one used in mining or construction equipment.
Working closely with experienced hydraulic suppliers helps manufacturers select suitable designs instead of relying only on standard specifications.
The right pressure rating supports better equipment performance, lower maintenance costs, and improved customer satisfaction.
One common mistake is selecting pressure ratings based only on the maximum possible machine load. This approach may result in oversized components, higher costs, and unnecessary complexity.
Another mistake is ignoring the relationship between pressure and other design factors. Pressure cannot be evaluated separately from stroke length, mounting conditions, component materials, and operating environment.
A hydraulic cylinder should be designed around real operating conditions rather than theoretical maximum values alone.
Proper engineering evaluation helps avoid both under-designed and over-designed hydraulic systems.
Hydraulic cylinder working pressure is the normal pressure level that the cylinder is designed to handle during regular operation. It determines the force output and influences component design requirements.
Working pressure represents normal operating conditions, while maximum pressure refers to the highest pressure the cylinder may experience under specific circumstances.
Not necessarily. Higher pressure can increase force output but also creates greater demands on materials, seals, and manufacturing accuracy.
Higher or repeated pressure cycles increase stress on components. Proper design and suitable materials help maintain long-term reliability.
The tube contains hydraulic pressure and supports piston movement. Material consistency, accuracy, and internal surface quality influence performance.
They should evaluate machine requirements, operating conditions, safety factors, and expected service life instead of choosing pressure ratings only by maximum capacity.
Hydraulic cylinder performance depends on selecting the correct relationship between pressure, design, and component quality.
EAST AI supports hydraulic equipment manufacturers with precision Honed Tubes and Chrome Plated Rods, helping customers build reliable hydraulic systems with stable component performance.
A well-designed hydraulic cylinder starts with understanding the real operating conditions behind the application.
