A hydraulic piston rod may look like a relatively simple component, but the internal design of the rod can influence the overall cylinder solution. Solid rods are widely used because they provide a straightforward structural design, while hollow rods can be considered when reducing component weight or adapting the rod to a specific equipment design is important.
The choice should not be made simply because one design is lighter or more expensive. The rod needs to withstand the mechanical loads generated during cylinder operation while maintaining the surface and dimensional characteristics required by the sealing system.
For this reason, solid and hollow chrome plated rods should be evaluated according to the actual application.

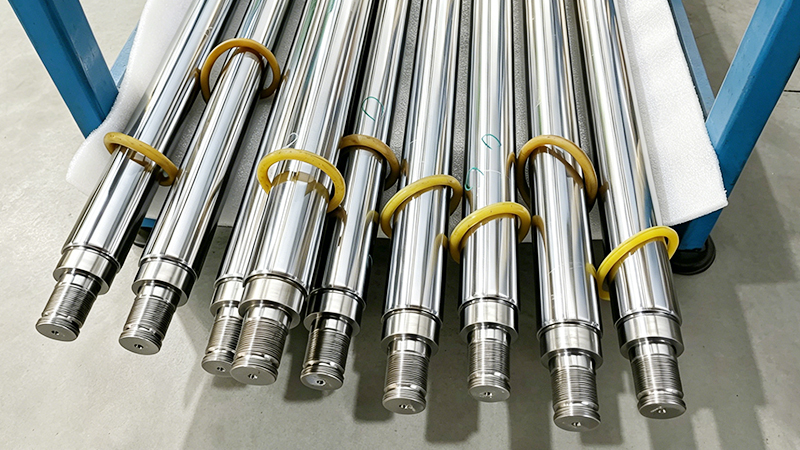

A solid chrome plated rod is manufactured from a solid steel bar or suitable precision material and then processed to achieve the required dimensions and chrome plated working surface.
This configuration is common in hydraulic cylinders because the solid cross-section provides a straightforward load-bearing structure. It is suitable for a wide range of industrial and mobile hydraulic applications.
When the cylinder has conventional structural requirements and there is no strong reason to reduce rod weight, a solid rod can be a practical and reliable choice.

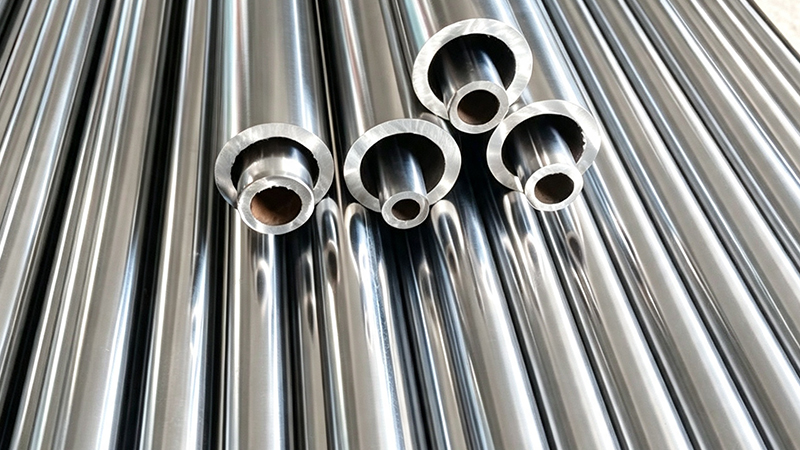

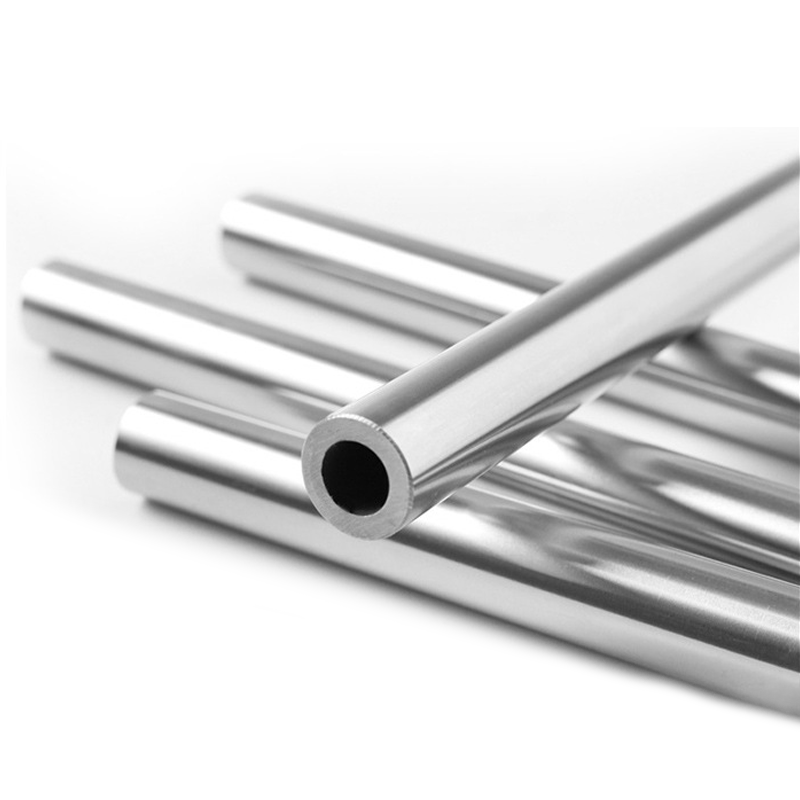

A hollow chrome plated rod contains an internal bore rather than a completely solid cross-section.
The purpose is not simply to remove material. A hollow configuration can be considered when the cylinder design benefits from reduced component weight, specific structural characteristics, or a particular internal configuration.
The actual feasibility depends on rod diameter, wall thickness, load, stroke, manufacturing requirements, and the complete cylinder structure.
EAST AI's product range includes hollow rod solutions with specified dimensional ranges and chrome surface requirements, providing an option for customers whose cylinder design calls for a hollow configuration.
Weight can become an important consideration in mobile equipment and long-stroke hydraulic systems.
A hydraulic cylinder may move as part of a larger mechanical structure. Reducing unnecessary component mass can sometimes help the overall equipment design, particularly when multiple cylinders are installed or when the equipment needs to control moving components efficiently.
However, weight reduction should never be considered independently from structural requirements. The hollow rod must still provide sufficient mechanical performance for the actual load and operating condition.
Not necessarily.
The mechanical behavior of a hollow rod depends on its outside diameter, internal diameter, wall thickness, material, length, loading direction, and mounting arrangement.
A properly designed hollow rod can provide the required performance for a specific application. The question is whether its geometry and material are appropriate for the loads imposed on the cylinder.
This is why hollow rod selection should be based on engineering calculations and application requirements rather than simply comparing the weight of two rods.
Solid rods remain a practical choice for many hydraulic cylinder designs.
They are straightforward to specify, manufacture, machine, and integrate into conventional cylinder assemblies. For applications where weight is not a major design constraint, a solid rod may provide the simplest overall solution.
This can be particularly relevant for industrial hydraulic equipment where the cylinder is fixed to a machine and the additional rod weight has little influence on the overall system.
Hollow rods become more interesting when component mass is an important design consideration.
Long hydraulic cylinders can require substantial rod lengths, and the rod itself may contribute significantly to the total moving or supported mass. In these cases, reducing unnecessary material can provide a potential design advantage.
The decision should still consider the cylinder's working load, rod diameter, stroke, stability, and mounting arrangement.
The goal is not to make the rod as light as possible. The goal is to achieve the required performance with an efficient design.
Whether the rod is solid or hollow, the external working surface still needs to meet the requirements of the sealing system.
The chrome plated rod specification used by EAST AI includes 850 HV chrome layer hardness, 20–100 μm chrome thickness, and Ra ≤0.2 μm surface roughness. These surface characteristics are relevant to the external working surface regardless of whether the internal rod configuration is solid or hollow.
This is important because changing the internal geometry does not remove the need for controlled external surface quality.
The choice between solid and hollow does not replace the need for proper material selection.
Chrome plated rods can be produced using different steel grades depending on the mechanical and environmental requirements of the application. The product range includes options such as CK45, SAE1045, 42CrMo, 40Cr, 20MnV6, and stainless steel grades.
The selected material needs to work together with the rod geometry. A hollow design may require a different engineering evaluation from a solid rod of the same outside diameter.
Long-stroke cylinders are one area where rod design deserves particular attention.
As rod length increases, structural stability, weight, straightness, and loading conditions become increasingly important. A long rod may experience different mechanical behavior from a short rod even when both have the same outside diameter.
This is where the solid-versus-hollow decision should be evaluated as part of the complete cylinder design.
The product specification allows chrome plated rods in lengths up to 15 m, meaning long-length applications can require careful consideration of the complete rod specification rather than diameter alone.
The first question should be the application requirement.
If the cylinder needs a conventional structural design and weight is not a significant concern, a solid rod may be the straightforward choice. If the equipment places greater importance on component weight or requires a specific internal configuration, a hollow rod may deserve evaluation.
The buyer should then compare material, outside diameter, wall thickness, length, chrome thickness, surface hardness, surface roughness, straightness, and dimensional tolerance.
This gives the supplier enough information to determine whether the requested design is technically appropriate.
A hollow rod can be worth discussing when the cylinder is long, the equipment is sensitive to weight, or the OEM design has specific structural requirements that make a hollow configuration advantageous.
It can also be considered when the engineering team is redesigning an existing cylinder and wants to evaluate whether rod mass can be reduced without compromising the required mechanical performance.
In these cases, the supplier should receive the complete technical requirements before production rather than being asked to simply convert a solid rod into a hollow version.
There is no universal rule that solid rods are better than hollow rods, or that hollow rods are automatically more advanced.

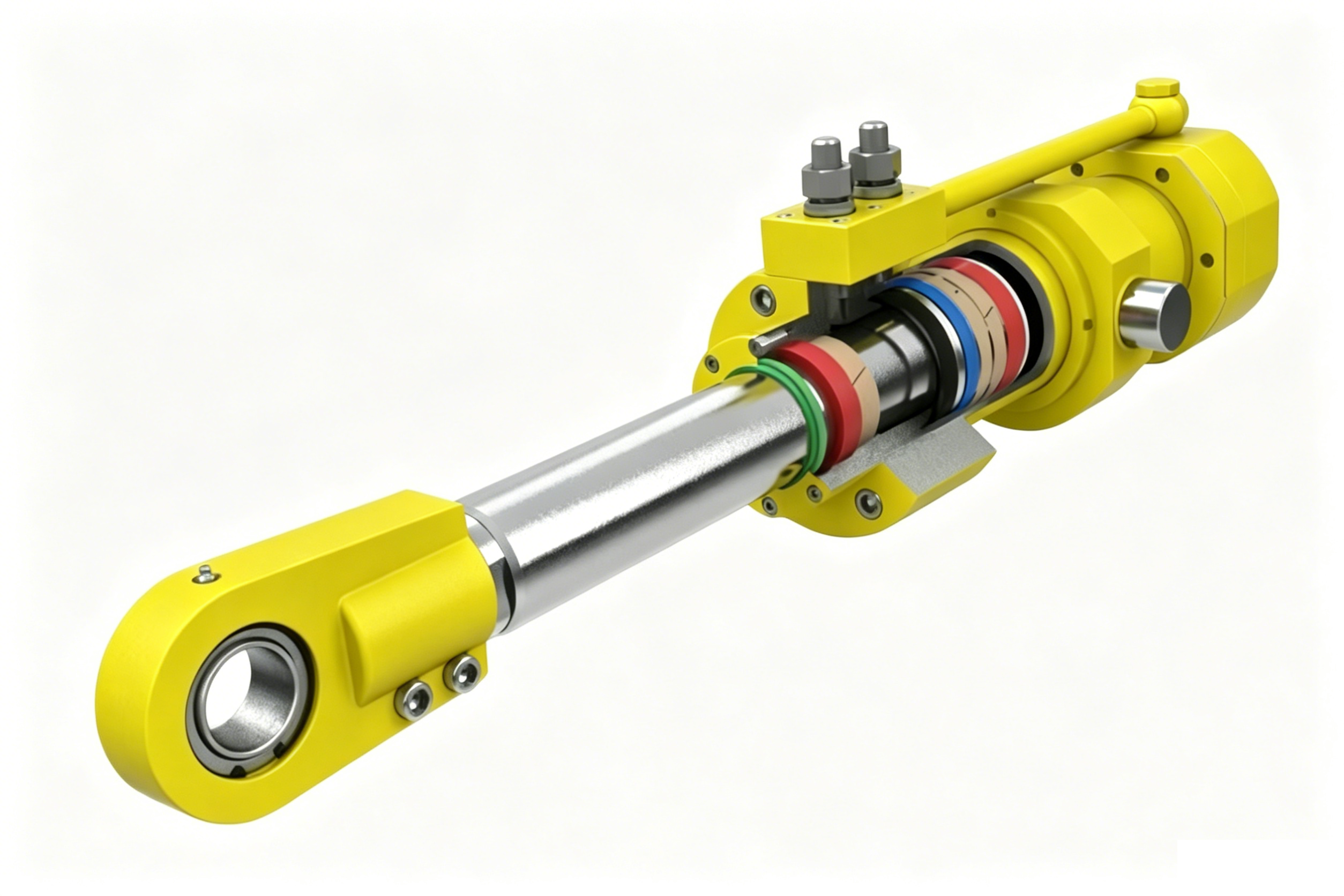

A hydraulic piston rod has to work within the complete cylinder structure. Load, stroke, diameter, length, material, sealing system, mounting arrangement, environment, and operating cycle all influence the correct solution.
For some cylinders, a solid chrome plated rod is the most practical choice. For others, a hollow chrome plated rod may provide a better balance between structural requirements and overall equipment design.
A solid rod has a fully solid cross-section, while a hollow rod contains an internal bore. The choice affects weight and structural design.
Yes. Hollow rods can be used in hydraulic cylinder applications when their dimensions, material, wall thickness, and mechanical performance meet the application requirements.
For comparable external dimensions, removing internal material can reduce mass, but the final weight depends on the actual geometry and wall thickness.
Not automatically. Strength and stiffness depend on geometry, material, diameter, wall thickness, length, and loading conditions.
If the external surface is used as the hydraulic piston rod working surface, it still needs the appropriate surface treatment and finishing requirements for the sealing system.
Provide the outside diameter, internal diameter or wall thickness, length, material, tolerance, chrome thickness, surface requirements, straightness, and application conditions.
Solid and hollow chrome plated rods can both be effective solutions when the design matches the hydraulic cylinder requirements. The correct choice depends on load, rod dimensions, length, material, weight considerations, sealing requirements, and the complete equipment design.
EAST AI supplies chrome plated rod solutions for hydraulic cylinder manufacturers, including solid and hollow configurations with application-specific material, dimensional, and surface requirements.
