When a hydraulic cylinder develops piston rod wear, it is tempting to look at the rod first. In practice, the rod is only one part of the working system.
The rod moves through seals and guides while carrying the mechanical loads generated by the cylinder. At the same time, its exposed section may encounter dust, moisture, abrasive particles, or corrosion. If alignment, sealing, lubrication, surface condition, or operating conditions are not appropriate, wear can gradually appear on the rod.
This is why replacing the rod without identifying the reason for the original wear may solve the immediate problem without preventing the same problem from returning.

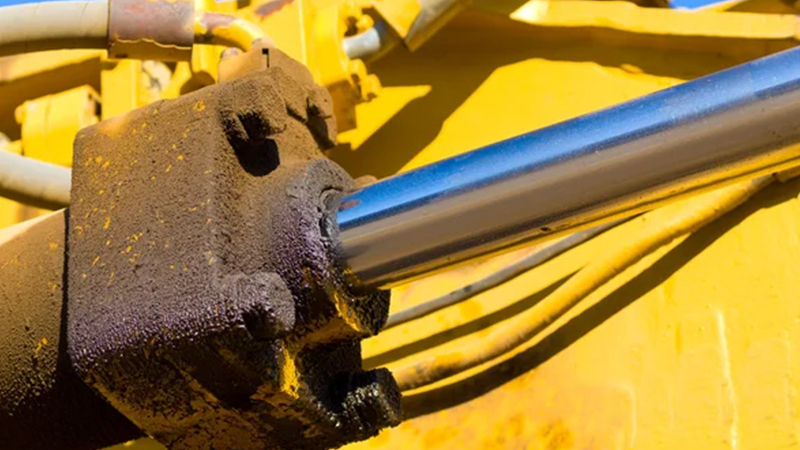

The rod seal is designed to maintain hydraulic fluid inside the cylinder while allowing repeated rod movement. This creates continuous contact between the seal and rod surface.
If the rod surface is damaged, contaminated, or unsuitable for the sealing system, the interaction can become more aggressive. Over time, the seal and rod can both experience increased wear.
The practical solution is to evaluate the rod surface together with the seal. Surface finish, chrome condition, rod geometry, seal material, and operating conditions should be considered as one working interface.

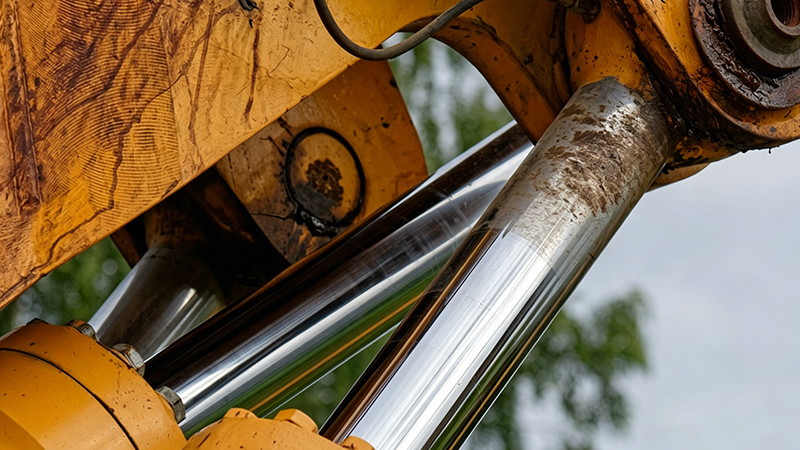

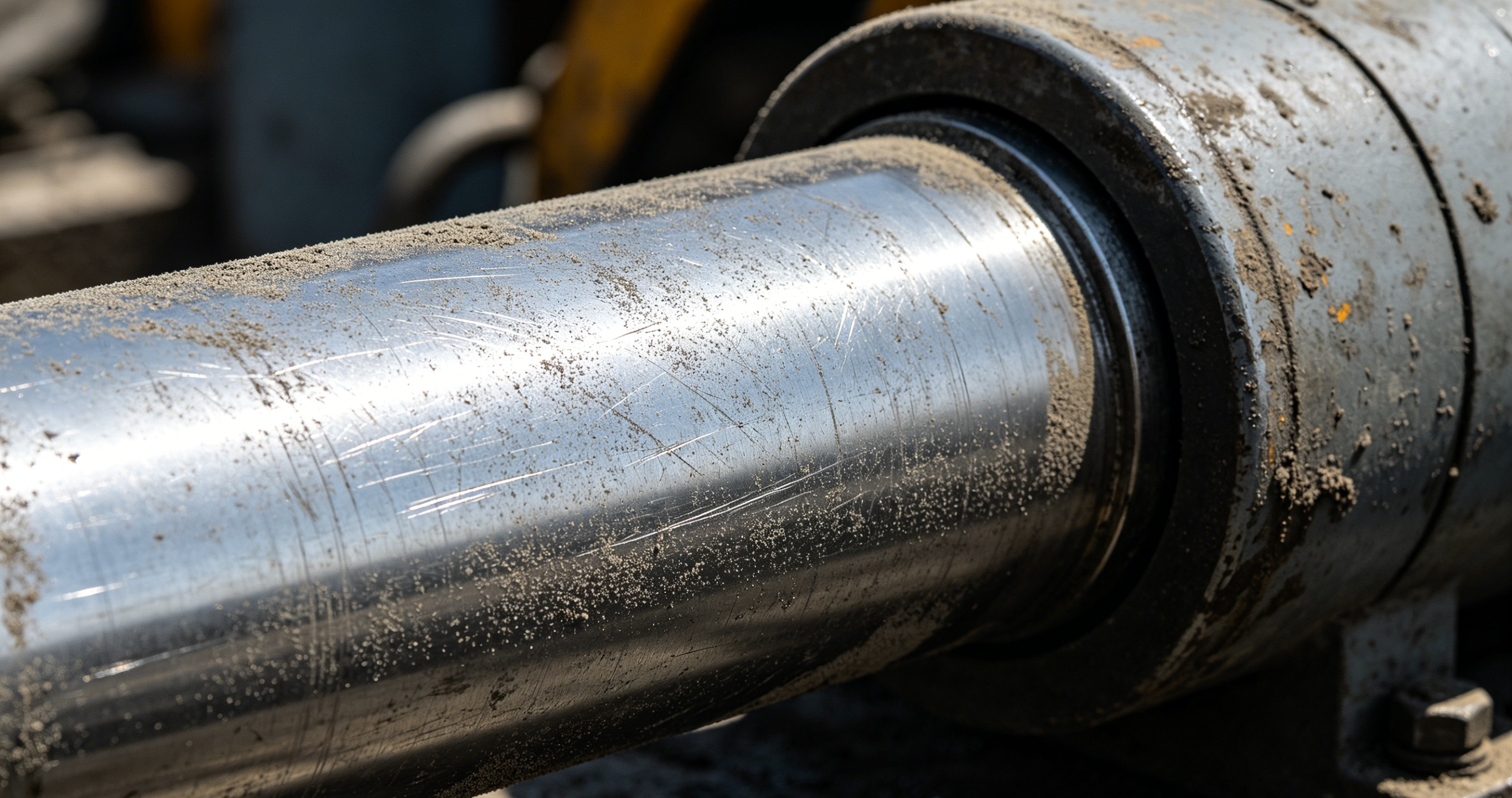

Construction and mobile hydraulic equipment often operates in dusty or dirty environments. Fine particles can accumulate on the exposed piston rod and become part of the rod's working environment.
The wiper and sealing system provide the first line of protection, but the rod surface still needs to tolerate the operating conditions. If contamination repeatedly enters the sealing area, it can accelerate wear.
A practical solution involves more than changing the rod. The rod surface, wiper design, seal arrangement, equipment cleanliness, and maintenance conditions should all be reviewed.
Moisture and aggressive environmental conditions can cause corrosion when the exposed rod surface is not adequately protected.
Once corrosion creates an irregular surface, the problem can become more serious because the damaged area repeatedly passes through the sealing system during cylinder operation.
Chrome plating is commonly used on hydraulic piston rods because the hard chrome surface provides additional protection against wear and corrosion. However, the coating needs to be manufactured and finished correctly for the intended application.

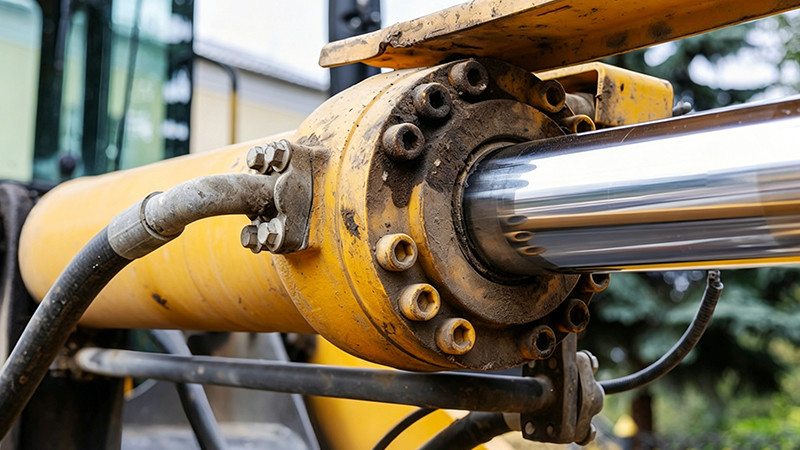

A piston rod can experience uneven loading when the cylinder is not correctly aligned with the machine structure.
This can create uneven contact between the rod, guide, and sealing system. Instead of distributing the working forces as intended, the system may place greater stress on particular areas of the rod and seal.
If a rod shows repeated wear in a localized area, alignment should therefore be investigated before simply replacing the component.
Hydraulic cylinders are designed primarily to generate and transmit force along their intended axis. External side loads can introduce additional forces that the rod and guide system were not designed to carry continuously.
Side loading can contribute to uneven rod wear and seal deterioration. The problem can become particularly noticeable on long-stroke cylinders or equipment where the cylinder mounting geometry changes during movement.
The solution may require changes to the mounting arrangement, guiding system, linkage, or cylinder design rather than simply changing the piston rod material.
Long-stroke cylinders create their own design challenges.
A long rod can have a greater unsupported length and may experience different mechanical conditions from a short rod. Rod diameter, material, mounting, load direction, and cylinder geometry all need to be considered.
When wear appears together with bending, alignment problems, or unusual movement, the complete cylinder design should be reviewed.
A stronger surface treatment alone cannot compensate for a rod that is mechanically underspecified for the application.

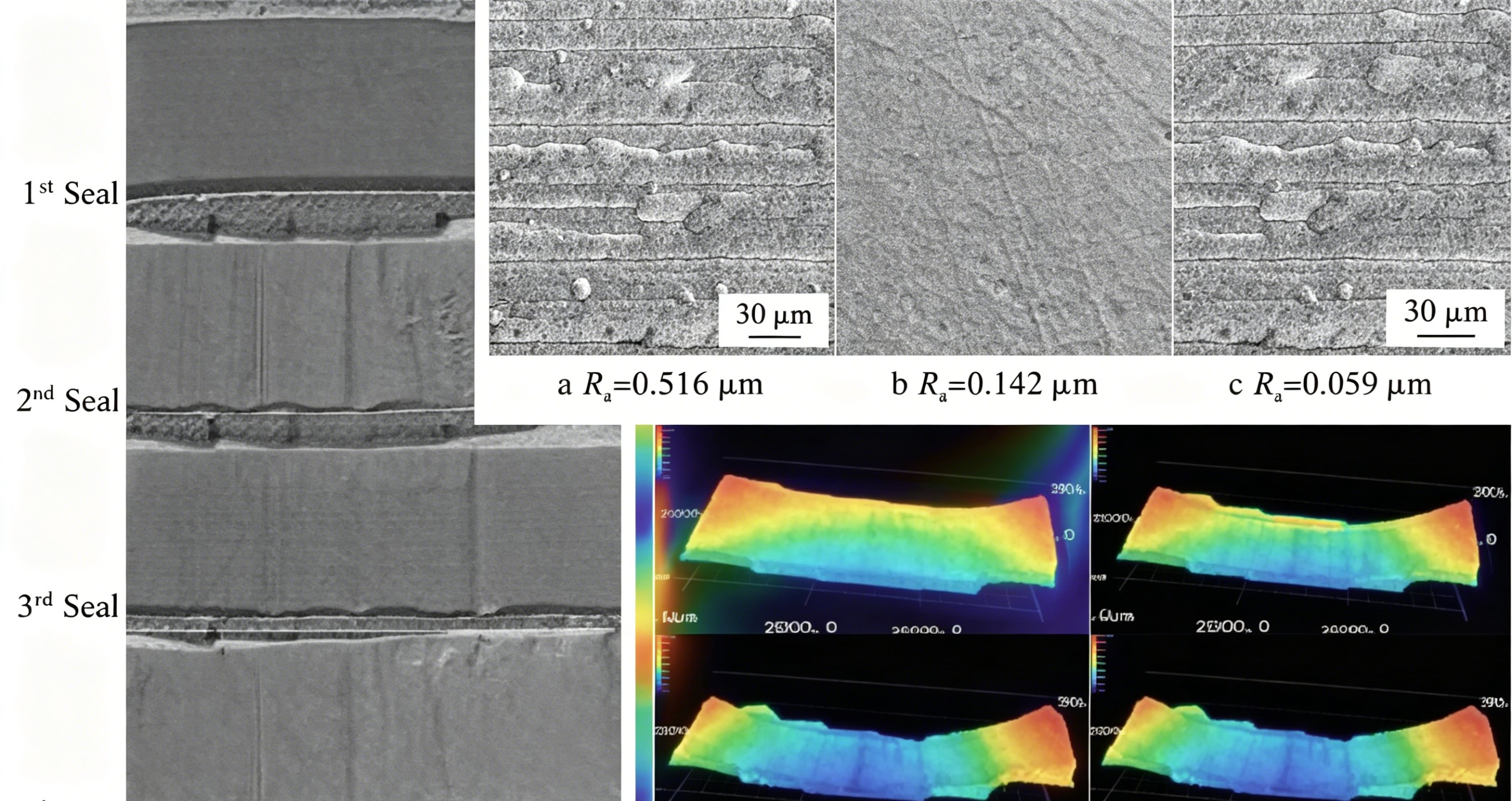

The rod surface needs to be compatible with the sealing system.
If the surface is too rough, damaged, poorly finished, or inconsistent, the seal may experience increased friction or wear. If the surface has defects or corrosion, those areas can repeatedly pass through the seal and create further damage.
This is why chrome plated rods are normally specified with controlled surface characteristics rather than simply being described as “chrome plated.”
The actual surface requirement should be matched to the cylinder design and sealing system.
Sometimes the problem begins before the cylinder is assembled.
A rod may have the wrong material, diameter, tolerance, length, surface specification, or mechanical condition for the intended application. The component may still look acceptable during incoming inspection while being unsuitable for the actual working conditions.
This is particularly relevant for OEM manufacturers purchasing components from multiple suppliers. A complete technical specification helps prevent products that are nominally similar but functionally different from entering production.
Hard chrome plating creates a durable external working surface for the piston rod. Its purpose is to provide suitable surface characteristics for repeated movement and environmental exposure.
But chrome plating should not be considered a complete solution to every rod-wear problem.
If the cylinder has excessive side loading, poor alignment, unsuitable seals, contamination problems, or an incorrectly selected rod diameter, changing the chrome specification alone will not solve the underlying cause.
The best results come from matching the rod surface with the mechanical and sealing design.

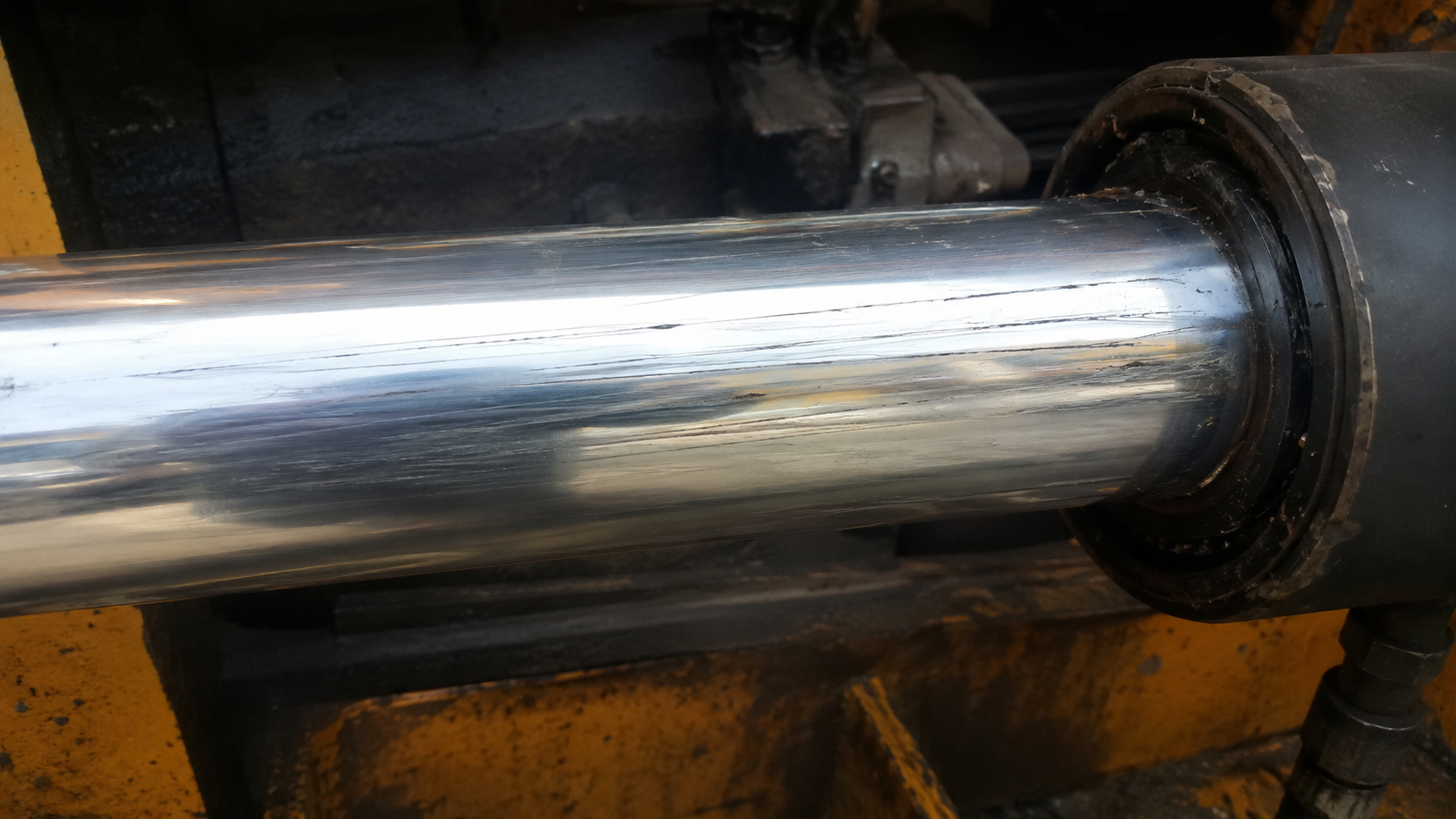

Not every surface mark means the complete piston rod must immediately be replaced.
The severity, location, depth, corrosion condition, dimensional change, and effect on the sealing area all need to be evaluated. A superficial mark away from the working sealing area is different from deep damage running through the seal contact zone.
For critical hydraulic equipment, the decision should be based on measurement and engineering assessment rather than appearance alone.
The first step is to define the application correctly.
The cylinder load, stroke, rod diameter, material, sealing system, operating environment, contamination level, and expected duty cycle should be considered before selecting the rod. Once the cylinder is in service, alignment, mounting, lubrication, cleanliness, and inspection become equally important.
This approach shifts the focus from repairing rod wear after failure to preventing the conditions that cause it.

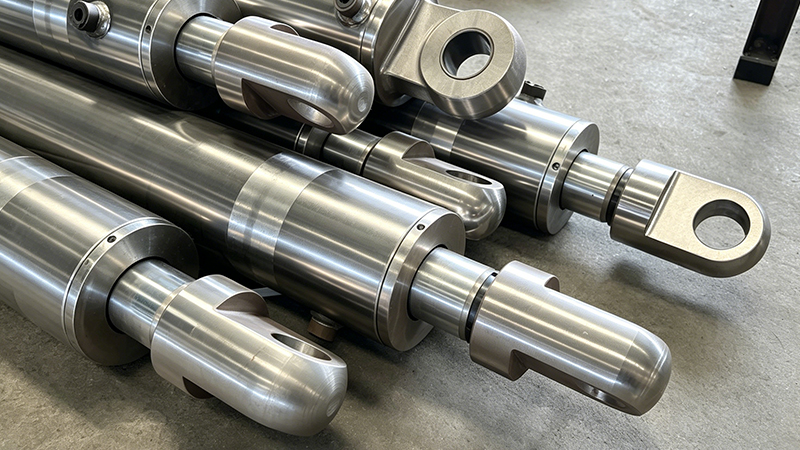

Even when the engineering specification is correct, the supplier still needs to manufacture the rod consistently.
Material, dimensions, chrome plating, surface finishing, and inspection all influence the finished component. If these characteristics vary between batches, the cylinder manufacturer may see inconsistent assembly or service behavior.
For OEM customers, a supplier capable of maintaining stable specifications across repeated orders can therefore reduce more than purchasing risk. It can reduce downstream cylinder quality problems.
When a worn piston rod is returned from the field, start with the wear pattern rather than immediately blaming the rod.
Look at where the wear occurs, whether it is uniform or localized, whether corrosion is present, whether the sealing area is affected, and whether there are signs of side loading or misalignment. Then review the rod specification and the operating conditions.
This approach helps distinguish between a surface problem, a sealing problem, a mechanical alignment problem, and an application problem.
Hydraulic piston rod wear is often the visible result of several factors working together.
A suitable chrome plated rod provides the correct working surface, but the final result also depends on the seal, guide, cylinder geometry, machine alignment, operating environment, and maintenance conditions.
For this reason, the most effective solution is usually not simply “use a harder rod.” It is to identify why the existing rod is wearing and then match the component specification to the actual operating conditions.
Common causes include seal interaction, contamination, corrosion, misalignment, side loading, unsuitable surface condition, incorrect rod specification, and demanding operating conditions.
Chrome plating can improve surface durability and resistance to wear and corrosion, but it cannot eliminate wear caused by incorrect cylinder design, excessive side loading, contamination, or poor alignment.
Yes. Surface defects or corrosion in the sealing area can create unfavorable contact conditions and contribute to seal wear.
Localized wear can indicate uneven loading, misalignment, guiding problems, or side loading. The complete cylinder installation should be investigated.
No. Chrome thickness should match the application and technical specification. The final surface condition and dimensional accuracy are also important.
The decision depends on the severity and location of the damage, dimensional condition, sealing requirements, and application risk. Critical components should be evaluated against the applicable technical specification.
Piston rod wear is rarely caused by one factor alone. The rod surface, sealing system, cylinder alignment, loading, contamination, and operating environment all influence service life.
