A hydraulic cylinder manufacturer recently encountered a frustrating situation during final testing. The cylinder had been assembled without difficulty, all critical dimensions matched the drawing, and incoming inspection records showed no abnormalities. From a quality perspective, the project appeared ready for shipment.
However, during pressure testing, leakage rates exceeded expectations. The cylinder was disassembled, inspected, and rebuilt. The second test produced similar results.
At first, engineers suspected seal quality. Attention then shifted to assembly procedures. Neither investigation identified a clear root cause.
The problem only became visible when the team looked beyond bore tolerance measurements and began examining the internal surface condition of the Honed Tube.
The bore size was correct. The surface condition was not delivering the expected sealing performance.
For more details, please click here.

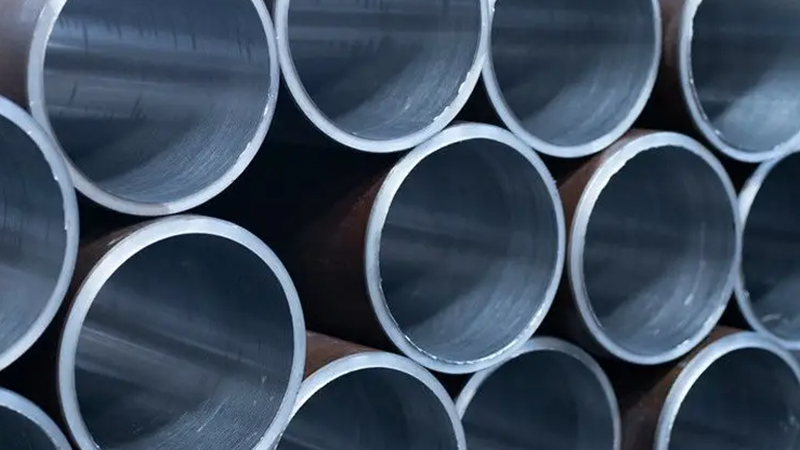

When purchasing a Honed Tube, bore tolerance is usually one of the first specifications reviewed.For good reason.The bore directly influences piston fit, seal performance, and overall cylinder efficiency. A tube that falls outside tolerance can immediately create assembly and performance problems.
Because of this, many purchasing teams focus heavily on dimensional compliance. Incoming inspection often prioritizes diameter measurements, straightness checks, and material certification reviews.
These inspections are essential. However, dimensional accuracy represents only part of the equation.Two tubes can share identical bore dimensions while producing noticeably different results during assembly and testing.

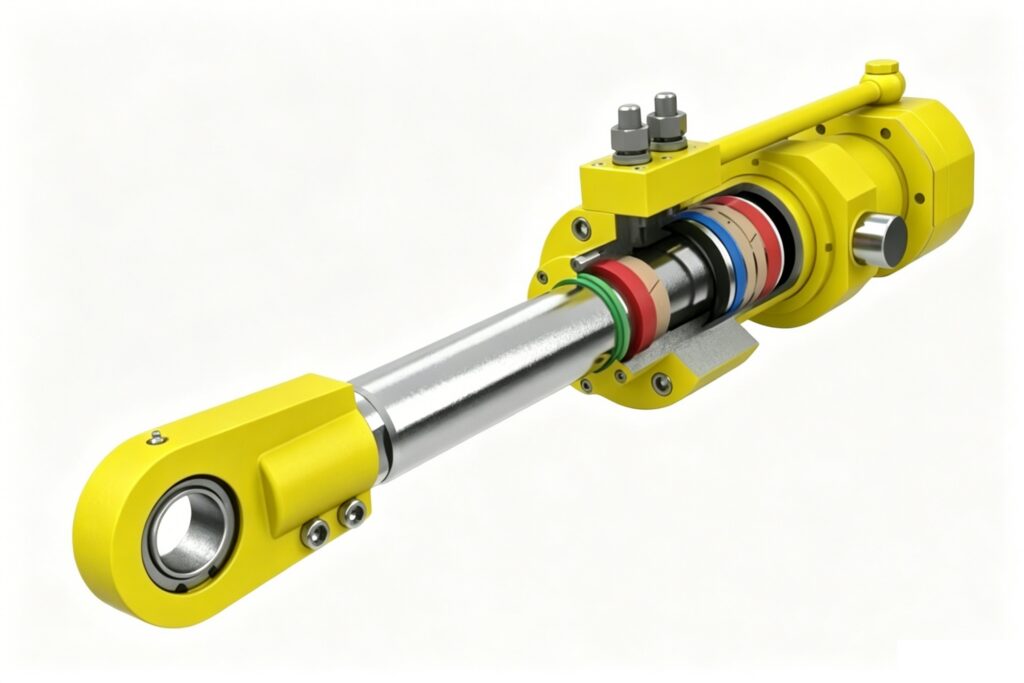

Inside every hydraulic cylinder, seals interact continuously with the internal tube surface.The seal does not “see” the dimensional report.The seal interacts directly with the actual bore surface created during honing.
If the surface is excessively rough, friction increases and seal wear may accelerate. If the surface is too smooth, lubricant retention can become less effective. In both situations, sealing performance may be affected even when dimensional measurements remain within specification.
This is why experienced hydraulic cylinder manufacturers evaluate both bore tolerance and surface finish when assessing tube quality.
A correct diameter does not automatically guarantee optimal sealing conditions.
A production team began reviewing several cylinders that had shown inconsistent testing results over a six-week period.
The first stage of the investigation focused on assembly practices. Engineers verified seal installation procedures, reviewed assembly records, and inspected operator training documentation. No significant deviations were discovered.

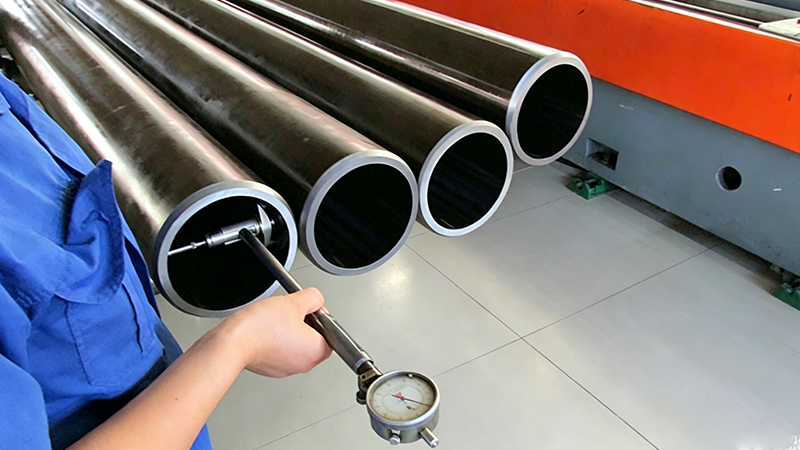

Attention then shifted toward incoming components. Material certificates were reviewed, dimensional inspection reports were compared, and bore measurements were rechecked. Once again, the results appeared normal.
Only after detailed examination of the internal bore surface did a pattern begin to emerge.
Although all incoming Honed Tubes complied with dimensional requirements, some batches displayed noticeable differences in surface characteristics. The variation was small enough to avoid immediate detection during routine inspection, yet significant enough to influence sealing behavior during testing.
The cylinders were rebuilt using tubes from a more consistent production batch.
Testing results immediately improved.
The investigation concluded that dimensional compliance alone had not been sufficient to guarantee repeatable cylinder performance.
Purchasing departments frequently compare suppliers based on material grade, delivery time, and dimensional specifications.
These factors matter.
However, when hydraulic cylinders are expected to operate under demanding conditions, manufacturing consistency becomes equally important.
Surface finish consistency influences sealing performance, friction characteristics, and long-term reliability. Variations between production batches can create challenges that remain invisible until assembly or testing begins.
This is one reason experienced manufacturers often evaluate suppliers based on process capability rather than inspection reports alone.
A supplier that consistently controls honing quality typically creates fewer downstream production problems than a supplier that simply meets minimum dimensional requirements.
For more details, please click here.
Inspection reports provide valuable information, but they cannot always predict production behavior.
A tube may pass dimensional inspection while still introducing variation into assembly, testing, or field performance.
For this reason, many engineering teams review production outcomes alongside incoming inspection data. When both measurements and performance trends are considered together, potential issues become easier to identify.
The most reliable hydraulic cylinders are usually built from components that are both compliant and consistent.
The investigation reinforced a lesson that many experienced cylinder manufacturers already understand.
Bore tolerance and surface finish should never be evaluated independently.
Dimensional accuracy determines whether components fit together correctly. Surface finish influences how those components perform after assembly.
When either factor is overlooked, production teams may spend significant time investigating problems that appear unrelated to incoming materials.
In reality, the root cause often originates much earlier in the manufacturing process.
When evaluating Honed Tubes, bore tolerance deserves careful attention. However, focusing exclusively on dimensional compliance can create blind spots during purchasing and quality control.
Surface finish plays a direct role in sealing performance, friction behavior, and overall hydraulic cylinder reliability.
Manufacturers that consider both factors are often better positioned to reduce testing issues, improve production consistency, and maintain long-term product performance.
Yes. Bore tolerance confirms dimensional accuracy, but sealing performance is also influenced by surface finish, material consistency, and manufacturing quality.

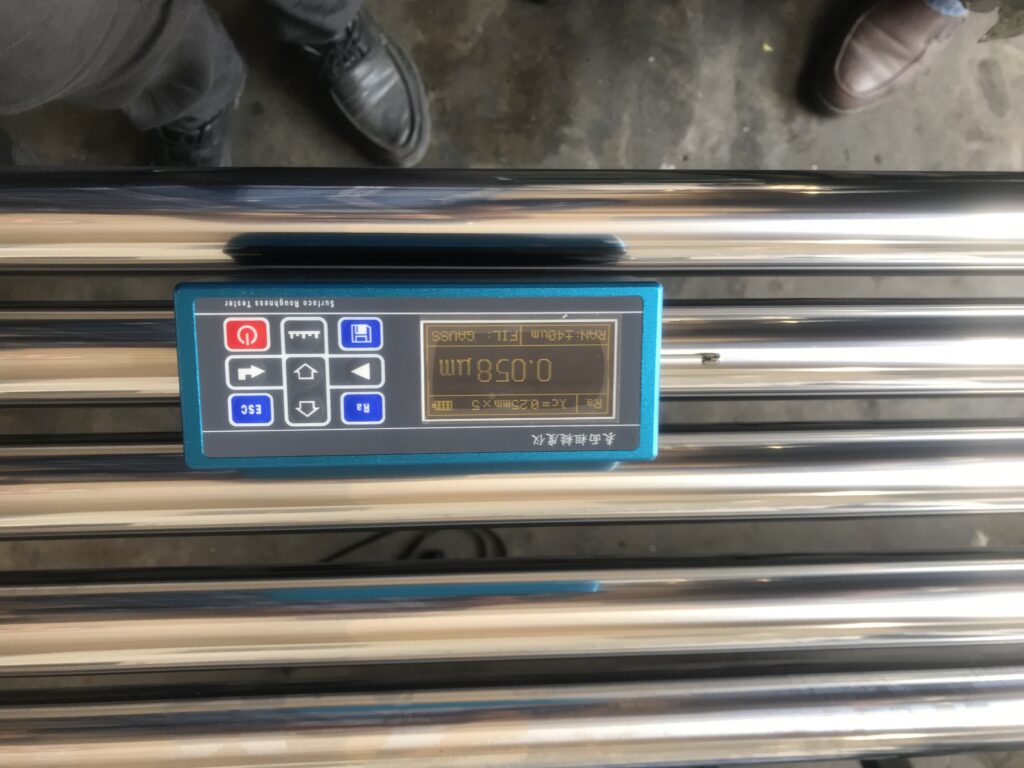

Surface finish affects friction, lubricant retention, seal interaction, and overall cylinder performance. Poor surface characteristics can create issues even when dimensions are correct.
Requirements vary by cylinder design, seal type, and operating conditions. Manufacturers typically define acceptable roughness ranges based on application requirements.
In addition to bore measurements, teams should review process capability, surface finish consistency, supplier quality systems, and long-term production stability.
Inconsistent assembly behavior, unexpected leakage during testing, increased seal wear, or variation between production batches can all indicate potential surface finish problems.
Experienced manufacturers recognize that both are critical. Dimensional accuracy ensures proper fit, while surface finish helps determine how effectively the cylinder performs after assembly.
For more details, please click here.
Selecting a Honed Tube involves more than choosing a bore size. Consistent surface finish, stable manufacturing processes, and repeatable production quality all contribute to hydraulic cylinder performance.
EAST AI manufactures Honed Tubes, Chrome Plated Rods, and hydraulic cylinder components for manufacturers that require dependable quality and batch-to-batch consistency. If your team is reviewing cylinder testing issues, sealing performance concerns, or supplier qualification standards, our engineering team is available to discuss practical solutions based on real production experience.
