In the realm of hydraulic and pneumatic systems, chrome plated rods play a pivotal role in ensuring the efficiency, durability, and reliability of motion control. From heavy-duty industrial equipment to high-precision automation systems, chrome plated rods are a foundational element in engineering design. But what makes these rods so important? What technologies go into their production? And how do they contribute to the performance and longevity of hydraulic applications?
This in-depth article explores the science, applications, manufacturing processes, and benefits of chrome plated rods—while also helping you choose the right supplier for your business.

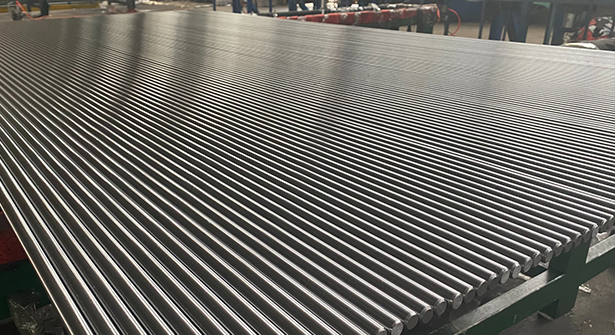

A chrome plated rod is a round bar made primarily from high-strength steel (e.g., C45, ST52, 42CrMo, 20MnV6), which undergoes surface treatment by grinding and electroplating with a hard chrome layer. This chrome coating is not just decorative—it serves a crucial functional purpose by enhancing surface hardness, reducing friction, and providing resistance to corrosion and wear.
These rods are also known as:
Chrome plated bar
Hard chrome bar
Piston rod
Hydraulic rod
They are used extensively in applications involving linear reciprocating motion, such as hydraulic cylinders, pneumatic actuators, linear guides, lifting equipment, and telescopic systems.
Producing a high-performance chrome plated rod involves a series of precision manufacturing steps. Each phase is essential to achieve the mechanical integrity, surface quality, and dimensional consistency that hydraulic systems demand.
The base material is critical. Most chrome plated rods are made from:
C45 (medium carbon steel): Widely used for standard applications due to its strength and machinability.
ST52 (low alloy steel): Offers higher tensile strength and good weldability.
20MnV6 (micro-alloy steel): Preferred for its excellent toughness and fatigue resistance.
42CrMo (alloy steel): Ideal for high-load, impact-heavy conditions due to its superior hardenability.
The raw steel bar is peeled and centerless ground to remove surface defects and achieve the required dimensional tolerance (commonly f7, f8, or custom). This step also prepares the bar for chrome plating by creating a smooth and uniform base.
Before plating, the bar is polished to ensure a mirror-like finish. This improves adhesion of the chrome and directly affects surface roughness values.
An electrolytic process deposits a hard chrome layer—usually between 20–30μm, though custom thicknesses are available. The chrome coating enhances surface hardness up to HV800–1000, offering exceptional resistance to wear and corrosion.
After chrome plating, the rod may undergo final grinding or polishing to achieve:
Surface roughness of Ra ≤ 0.2μm
Straightness tolerance of ≤0.2mm/m
Perfect roundness and finish for seal compatibility
Key tests include:
Salt Spray Testing (SST): Simulates corrosive conditions for 72–120+ hours.
Hardness Testing: Ensures the chrome layer meets required surface hardness.
Dimensional Testing: Uses micrometers, calipers, and laser measuring to verify tolerances.
| Parameter | Specification |
|---|---|
| Diameter Range | 6mm – 200mm (custom diameters on request) |
| Chrome Thickness | 20 – 30μm standard (custom up to 50μm) |
| Surface Hardness | HV800 – HV1000 |
| Surface Roughness | Ra ≤ 0.2μm |
| Straightness Tolerance | ≤0.2mm/m |
| Length Options | Standard: 1m – 6m, or cut-to-length |
| Tolerance Grade | f7 / f8 / h6 or custom |
| Material Options | C45, ST52, 20MnV6, 42CrMo, and more |
| Salt Spray Resistance | ≥200h (neutral salt spray test) |
Thanks to their exceptional mechanical and surface properties, chrome plated rods are used across various industries:
The most common use. Chrome plated rods act as piston rods, moving in and out of cylinder bores, often under high load and speed. Surface smoothness and hardness are critical to reduce seal wear and leakage.
Excavators, bulldozers, cranes, and loaders all use hydraulic actuators. Chrome plated rods in these systems must withstand dust, mud, and corrosive environments.
These systems rely on precise linear motion. Chrome plated rods ensure the smooth extension and retraction of heavy booms under varying pressure loads.
Used in linear actuators, press machines, and guiding systems where motion precision and low friction are essential.
Due to their corrosion resistance, chrome plated rods are ideal for use in sea ports, offshore platforms, and shipboard hydraulics.
Hydraulic systems in tractors, harvesters, and log splitters benefit from the robust wear resistance and strength of chrome plated rods.
The chrome layer protects the steel core from oxidation, especially in outdoor and humid environments. This significantly reduces maintenance costs and downtime.
The hardened surface endures high sliding contact and cyclic motion, preventing scoring and scratches that would compromise hydraulic performance.
The fine surface finish ensures minimal friction and optimal seal performance. This reduces the risk of leakage and prolongs the lifespan of seals and gaskets.
With tolerances as fine as ±0.01mm, chrome plated rods can be directly used in precision engineering applications without extra machining.
Although the surface is hard, the steel core remains machinable. This allows for end modifications such as threading, chamfering, and drilling.
At EASTAI, we specialize in providing top-quality chrome plated rods backed by 18+ years of hydraulic experience. Whether you're an OEM, distributor, or maintenance provider, our rods offer performance you can trust.
Anti-Rust Protection: All rods undergo salt spray testing and anti-corrosion treatment.
Full-Length Accuracy: We never under-deliver. Every piece is measured and confirmed.
Salt Spray Performance: SST ≥200 hours ensures long-lasting surface protection.
Inventory Strength: Common sizes are available in stock for quick delivery.
Production Capacity: Large-scale output with multiple automated lines.
Quality Assurance: Full reports available—material certificates, plating thickness, hardness, and SST.
Premium Materials: We use certified raw steel only, traceable to the mill.
After-Sales Support: Technical experts ready to support custom projects or troubleshooting.
We support a variety of custom machining services:
Cut-to-length
Chamfering and beveling
Threaded ends
Drilled holes
Surface treatments (e.g., nickel-chrome)
We also accept OEM and ODM projects for large-scale industrial applications.
EASTAI integrates strict quality control protocols at every stage of production:
Incoming Inspection of raw materials
In-process Checks during grinding and plating
Final Inspection before packaging and shipment
Batch Traceability using lot numbers and barcodes
Clients can request test certificates including:
Material Test Reports (MTC)
Hardness Test Results
Salt Spray Test Reports
Chrome Thickness Certificates
We ensure every product reaches your hands in perfect condition.
Packing: Anti rust oil to be spread on rod surface and each rod to be packed in paper roll and then in wooden case，can be customised according to customer requirements
Labeling: Clear product labeling with specifications and batch numbers
Shipping: Support for sea freight, air freight, or express based on your needs
Lead Time: Standard sizes ship within 3–5 days; custom orders in 7–15 days
Ready to elevate your hydraulic system with reliable chrome plated rods?
Email: info@east-ai.cn
Office Hours: Monday to Friday, 8:30 AM – 6:00 PM CST
Let’s build precision together.
