Three-stage Telescopic Cylinder

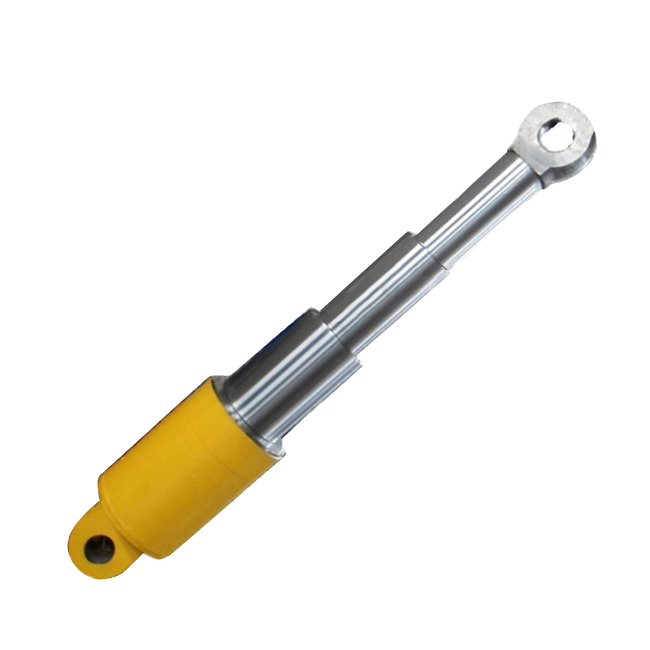

Three-stage Telescopic Cylinder offers multiple extension stages for applications requiring long stroke and compact retraction. Ideal for dump trucks, aerial platforms, and heavy-duty lifting, this 3stage hydraulic cylinder delivers efficient, space-saving hydraulic force.

Model:
Telescopic Type
Brand:
EAST AI


Availability:



Inquire

Product Description

Three-stage Telescopic Cylinder: Long Stroke Power in a Compact Body

Three-stage Telescopic Cylinder is specially engineered to achieve long extension distances while maintaining a minimal retracted length. This is made possible by the multi-stage design, where each cylinder stage slides out in sequence, maximizing stroke while minimizing space requirements.

This telescopic hydraulic cylinder is commonly used in vertical lift systems, dump trailers, agricultural tippers, and refuse trucks. Its reliable performance in both single and double-acting modes makes it a core component in demanding mobile hydraulic systems.

As a Hydraulic Telescoping Ram, it ensures smooth extension and retraction even under high loads. Whether you need vertical lift, horizontal push, or variable angle movement, this 3-stage design is built for efficiency, stability, and durability.

Technical Specifications

Parameter	Details
Type	Hydraulic, 3-stage Telescopic Cylinder
Max Stroke Length	Up to 7000 mm (total combined)
Bore Size Range	40 mm – 300 mm per stage
Max Operating Pressure	Up to 250 bar (3625 PSI)
Extension Type	Single acting or double acting
Material	High-tensile steel, chrome-plated rods
Sealing System	Multi-lip or custom high-pressure seals
Mounting Options	Trunnion, cross tube, flange, eye
Surface Protection	Anti-corrosion coating or painting
Applications	Dump trucks, cranes, platforms, refuse trucks

Why Choose a Three-stage Telescopic Cylinder?

Ultra-Compact Retraction
When fully collapsed, it occupies minimal space, perfect for space-limited installations.
Extended Reach
With three sequential stages, this 3stage hydraulic cylinder can reach strokes up to 3–5 times the body length.
Robust Load Handling
Engineered to support heavy vertical or horizontal loads during full extension.
Flexible Configurations
Available in both single-acting (gravity return) and double-acting (hydraulic return) types to suit different system needs.
Improved Stability and Control
Advanced flow control and staged pressure distribution ensure stable movement through each phase.

Common Applications

Dump truck beds and tipper trailers
Mobile cranes and lift arms
Construction equipment with vertical reach
Waste management and container handling systems
Agricultural machinery with high-angle lifting

The Three-stage Telescopic Cylinder is a versatile Hydraulic Telescoping Ram, delivering force where it’s needed with controlled stroke speed and retraction accuracy.

Key Customer Benefits

Space-saving design for mobile equipment
Reduced overall weight of hydraulic systems
Extended service life under repeated cycles
Seamless integration with control valves and power packs
Supplied by experienced telescopic hydraulic cylinder manufacturers

FAQ

FAQs

What makes a three-stage telescopic cylinder different from standard cylinders?

Unlike traditional cylinders with a single stroke, the three-stage telescopic cylinder uses three nested stages to achieve much longer extension in a smaller footprint when retracted.
Can this 3stage hydraulic cylinder handle both push and pull motions?

Yes. Double-acting models apply hydraulic pressure for both extension and retraction, while single-acting versions use gravity or load weight for return.
What kind of maintenance does a telescopic hydraulic cylinder require?

Regular inspection of seals, stage movement, hydraulic oil condition, and cleaning of external surfaces to avoid debris damage during retraction.
Can I use a three-stage cylinder in horizontal applications?

Absolutely. While vertical use is common, many Hydraulic Telescoping Rams are used in horizontal or angled systems with proper support and flow control.
Is customization available for stroke, bore, and mounting?

Yes. Stroke length, bore diameter, mounting style, pressure rating, and port configurations can all be tailored to suit specific equipment and application requirements.
