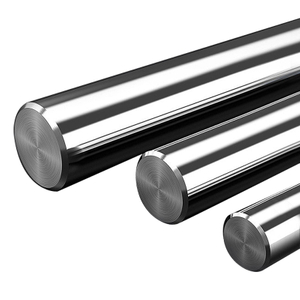

20MnV6 Chrome Plated Rod Induction and Hardened (HRC 50–62)

The 20MnV6 induction hardened chrome plated rod is engineered for operations that require high fatigue resistance and long-term durability. The rod is manufactured from micro-alloyed 20MnV6 steel, known for its excellent machinability, toughness, and controlled microstructure.
After precision centerless grinding, the rod undergoes induction hardening, achieving a surface hardness of HRC 50–62, while retaining a tough and flexible core—ideal for hydraulic piston movement under heavy load. The final layer of hard chrome plating provides superior corrosion resistance, low friction, and long service life.

Model:
Induction And Hardened
Brand:
EAST AI
Material:
20MnV6
Length:
Max. 15m
ID Tolerance:
f7/f8/g6,etc
Straightness:
≤0.2/1000 mm
Application:
Hydraulic cylinders for mobile equipment, industrial machinery, and heavy-duty systems
Packing:
Anti rust oil to be spread on rod surface and each rod to be packed in paper roll and then in wooden case,can be customised according to customer requirements
Roughness:
≤0.2u

Availability:



Inquire

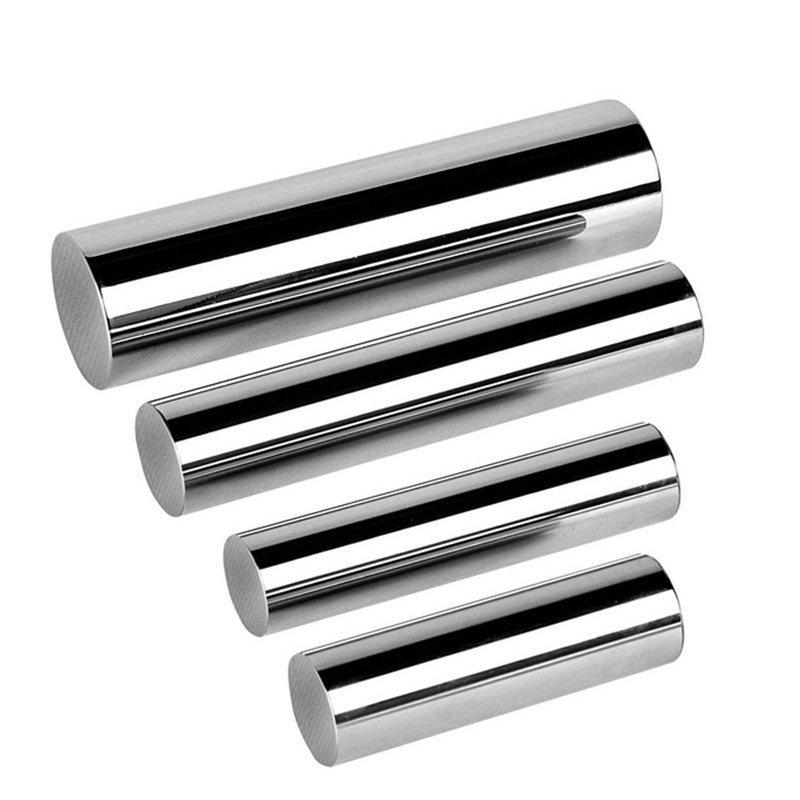

Product Description

Product Description

Advantages of 20MnV6 Chrome Plated Rod Induction and Hardened (HRC 50–62)

High surface hardness (HRC 50–62) for strong wear resistance
Excellent fatigue strength suitable for high-pressure hydraulic systems
Low-friction chrome layer reduces seal wear and heat generation
High tensile strength with a tough core improves impact tolerance
Perfect surface finish for smooth hydraulic operation
Long service life in corrosive or demanding environments
Ideal for heavy-duty hydraulic machinery

Technical Specifications of 20MnV6 Chrome Plated Rod Induction and Hardened (HRC 50–62)

Parameter	Specification
Steel Grade	20MnV6 (EN10297-1)
Surface Hardness	HRC 50–62 (induction hardened)
Chrome Plating Thickness	20–30 microns (customizable)
Surface Roughness	Ra ≤ 0.2 μm
Yield Strength	≥ 520 MPa
Tensile Strength	650–850 MPa
Straightness	≤ 0.2 mm/m
Tolerance	f7 / h7
Outer Diameter Range	Ø 10–Ø 200 mm
Length	Up to 8000 mm
Core Toughness	High impact resistance, non-brittle
Corrosion Resistance	≥ 120 hours salt spray test (ISO9227)

Applications of 20MnV6 Chrome Plated Rod Induction and Hardened (HRC 50–62)

The product is widely used in hydraulic and pneumatic applications, including:

Hydraulic cylinders (mobile & industrial)
Construction machinery (excavators, loaders, dozers)
Agricultural equipment (tractors, harvesters)
Mining machinery
Lifting and hoisting systems
Material handling solutions
Industrial automation
Marine hydraulic systems

Manufacturing Process of 20MnV6 Chrome Plated Rod Induction and Hardened

20MnV6 raw material inspection
Cold drawing and peeling
Precision centerless grinding
Induction hardening (HRC 50–62)
Deep stress relieving
Hard chrome plating
Final polishing to Ra ≤ 0.2 μm
Straightness correction
Final inspection and packaging

Quality Control for 20MnV6 Induction Hardened Chrome Plated Rod

We strictly implement full-process quality management:

Dimensional inspection (OD, roundness, straightness)
Chromium thickness test (micron measurement)
Surface roughness inspection (profilometer)
Hardness testing (HRC)
Salt spray corrosion test (ISO9227)
Eddy current testing
Ultrasonic testing (UT)
Visual inspection for defects and chrome uniformity

Every rod is fully traceable with batch codes and material certificates.

Quality Inspection Chrome plated rod

Certificates

Our 20MnV6 Chrome Plated Rod Induction and Hardened (HRC 50–62) is produced according to international standards and supported by comprehensive certifications:
