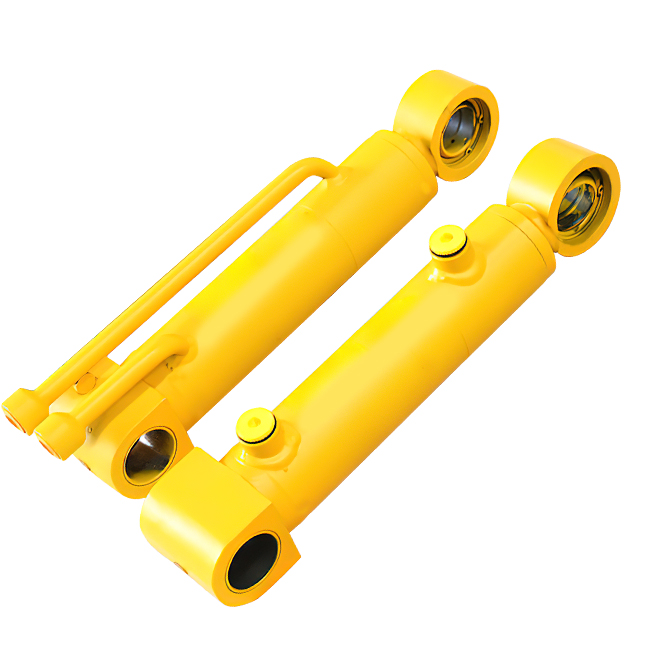

Non-cushioned Piston Cylinder

Non-cushioned Piston Cylinder delivers fast, direct linear force without internal damping. Ideal for repetitive industrial tasks, this High‑pressure Piston Rod Cylinder is cost-effective and built for high-speed operation in compact systems.
  • Piston Type

  • EAST AI

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

Non-cushioned Piston Cylinder: Simplified Design, Powerful Performance

Non-cushioned Piston Cylinder is a type of hydraulic actuator that delivers linear force without any internal deceleration mechanism at the stroke ends. The piston moves at full speed until it reaches the mechanical stop—offering fast response time and maximum stroke efficiency.

This cylinder is a popular choice in high-cycle applications where speed matters more than end-of-stroke cushioning. It is often used in material handling, quick-retraction systems, and compact industrial automation environments. The lack of cushions reduces cost, simplifies maintenance, and allows precise timing in synchronous machinery.

As a High‑pressure Piston Rod Cylinder, it handles operating pressures of up to 300–350 bar, delivering consistent force across strokes. For OEM users, integrators, and equipment builders, this cylinder offers a balance of simplicity, strength, and affordability—especially when sourced from a reliable High Pressure Piston Cylinder Supplier.


Technical Specifications

FeatureSpecification
TypeNon-cushioned, double-acting
Bore Size Range25 mm – 300 mm
Stroke Length25 mm – 2000 mm (customizable)
Max PressureUp to 350 bar (5075 PSI)
Rod MaterialChrome-plated steel / induction-hardened steel
Cylinder TubeHoned precision seamless tubing
SealsHigh-pressure rated (Parker, Hallite, NOK)
Mounting TypesFlange, clevis, trunnion, threaded end, etc.
Temperature Range-20°C to 120°C
Application FieldsFast press cycles, hydraulic clamping, industrial tools


Why Choose a Non-cushioned Piston Cylinder?

  • Fast and Responsive Movement
    Without internal cushioning, the cylinder extends and retracts rapidly—ideal for high-speed operation.

  • Simpler Construction
    Fewer internal parts reduce the likelihood of failure and make maintenance easier.

  • Cost-Effective Performance
    A more affordable solution when stroke-end damping is not necessary.

  • Reliable High-Pressure Operation
    Built as a High‑pressure Piston Rod Cylinder, it performs flawlessly under sustained pressure.

  • Trusted by Global Manufacturers
    Commonly supplied by experienced High Pressure Piston Cylinder Suppliers for industrial and OEM markets.


Typical Applications

  • Hydraulic presses with short stroke and high cycle rate

  • Clamping systems for machining or assembly

  • Compact lifting and retraction tools

  • Automated packaging and material loading arms

  • Precision fixtures that require exact stroke length

This Non-cushioned Piston Cylinder is built for tough environments where speed, simplicity, and strength are prioritized over soft stopping.


Customer Benefits Overview

  • Rapid stroke speed for fast operations

  • Low maintenance thanks to simplified internal design

  • Customizable for space-limited systems

  • Wide availability from leading High Pressure Piston Cylinder Suppliers

  • Great value with long service life


FAQ

FAQs
  • What is a Non-cushioned Piston Cylinder used for?
    Created with Sketch.
    形状 Created with Sketch.
    It’s used where fast actuation is needed without end-of-stroke damping—ideal for clamping, pressing, or high-speed retraction tasks.
  • Does this type of cylinder support high pressure operation?
    Created with Sketch.
    形状 Created with Sketch.
    Yes. As a High‑pressure Piston Rod Cylinder, it’s capable of working at 300–350 bar depending on the bore and rod size.
  • What is the difference between cushioned and non-cushioned cylinders?
    Created with Sketch.
    形状 Created with Sketch.
    Cushioned cylinders slow down near the end of stroke. Non-cushioned types do not—resulting in faster operation but harder stopping.
  • Is this cylinder suitable for automated or robotic applications?
    Created with Sketch.
    形状 Created with Sketch.
    Yes. Many automation systems use Non-cushioned Piston Cylinders for fast, predictable motion in time-sensitive cycles.
  • Can I get a customized version from a High Pressure Piston Cylinder Supplier?
    Created with Sketch.
    形状 Created with Sketch.
    Absolutely. Stroke length, bore diameter, port threads, rod ends, and mounting style can all be customized to match your hydraulic system.
