Telescopic Plunger Cylinder

Telescopic Plunger Cylinder delivers long stroke in minimal space, perfect for vertical lifting and mining applications. This Multistage Plunger Cylinder is rugged, reliable, and customizable for heavy-duty use.

Model:
Plunger Type
Brand:
EAST AI

Availability:



Inquire

Product Description

Telescopic Plunger Cylinder: Optimized for Vertical Force and Limited Space

Telescopic Plunger Cylinder is a specialized hydraulic actuator that offers a long stroke length in a compact retracted form. Unlike standard cylinders, it extends in multiple stages, with each stage housed inside the previous one. This makes it highly suitable for applications where space is limited but a long extension is needed.

Each stage in the cylinder activates sequentially, providing smooth motion and strong force across its entire stroke. This structure is ideal for applications such as lifting platforms, dump trucks, cranes, and Telescopic Plunger Cylinder Mining Equipment, where vertical motion and powerful force are essential.

As a form of Multistage Plunger Cylinder, it’s engineered for high load capacity, improved pressure handling, and a robust service life. For special uses, we provide Custom Telescopic Plunger Cylinder options, tailored to specific stroke lengths, bore sizes, and installation requirements.

Technical Specifications

Item	Specification
Product Type	Telescopic Plunger Cylinder (hydraulic, plunger-type)
Stages	2 to 5 stages
Stroke Length	Up to 6000 mm (customizable)
Bore Range	50 mm – 250 mm per stage
Max Pressure	250–350 bar
Material	Seamless steel, chrome-plated stages
Return Type	Single-acting (gravity/spring) or double-acting
Applications	Mining, lifting platforms, dump trucks, cranes
Seal Options	High-pressure seals (NOK / Hallite / Parker)

Key Features & Benefits

Compact Design with Long Stroke
When retracted, it takes minimal space. When extended, it delivers maximum reach.
High-Pressure Performance
Suitable for rugged tasks like those in Telescopic Plunger Cylinder Mining Equipment applications.
Sequential Multi-Stage Extension
Ensures smooth, efficient operation with controlled stroke distribution.
Versatile Mounting and Orientation
Can be installed vertically or horizontally depending on use-case.
Custom Solutions Available
We provide Custom Telescopic Plunger Cylinder configurations to meet exact stroke and size requirements.

Ideal Applications

Dump truck beds and tipper systems
Mining lifts and hydraulic mining arms
Industrial scissor lifts and platforms
Heavy construction vehicles and cranes
Telescoping mechanisms in compact equipment

Why Choose Our Multistage Plunger Cylinder?

Built with hardened chrome-plated tubes
Engineered for side-load resistance
Long-lasting operation with low maintenance
Available in both single acting and double acting formats
Optimized for hydraulic circuits requiring high extension-to-retraction ratios

FAQ

FAQs

What is the main advantage of using a Telescopic Plunger Cylinder?

It offers extended stroke in a compact package, which is especially useful in equipment with space constraints, like dump trucks or mining platforms.
How many stages can a Multistage Plunger Cylinder include?

Typically between 2 to 5 stages. The number depends on required stroke length and installation size.
Can you provide a Custom Telescopic Plunger Cylinder?

Yes. Stroke length, bore diameter, mounting type, and pressure rating can all be customized based on your system design.
Is the cylinder suitable for high-pressure environments?

Absolutely. It’s designed for working pressures up to 350 bar, ideal for demanding applications like Telescopic Plunger Cylinder Mining Equipment.
What are the maintenance requirements?

Routine seal checks, re-lubrication, and visual inspection for chrome wear are generally sufficient. Our designs are low-maintenance and field-repairable.

Related Products

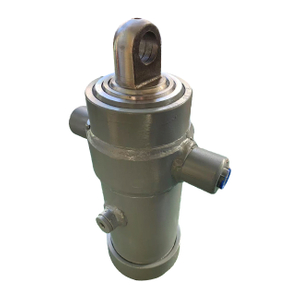

Double Acting Plunger Cylinder
