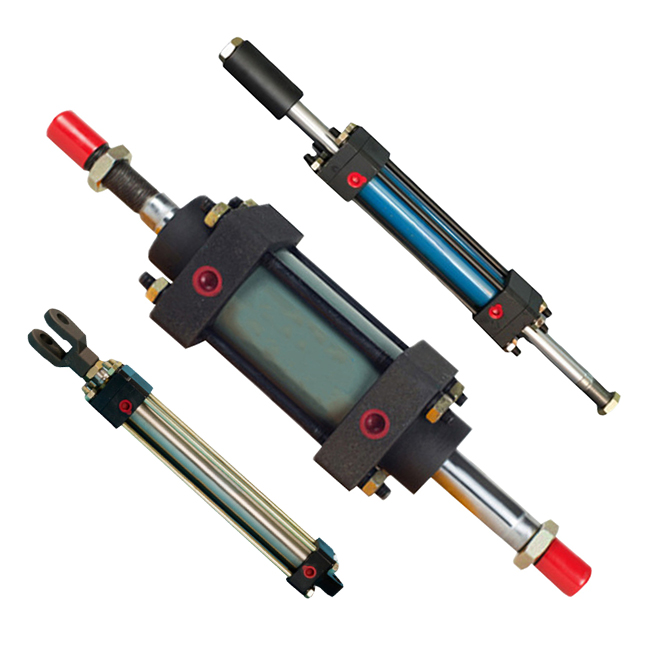

Tie-Rod Type Single Acting Hydraulic Cylinder

Tie-Rod Type Single Acting Hydraulic Cylinder is a durable and service-friendly cylinder hydraulic solution ideal for compact systems requiring force in one direction. It’s widely used in mobile machinery and by every trusted hydraulic cylinder supplier.

Model:
Tie-Rod Type
Brand:
EAST AI


Availability:



Inquire

Product Description

Tie-Rod Type Single Acting Hydraulic Cylinder: Practical Power for Controlled Movement

Tie-Rod Type Single Acting Hydraulic Cylinder is designed for systems where hydraulic force is required in only one direction—typically to extend a piston, with return motion handled by gravity or external load. This cylinder uses tie rods to secure the end caps to the barrel, ensuring strong mechanical integrity and easy maintenance.

Ideal for lifting, pushing, tilting, or compact force systems, this cylinder is a favorite choice in small hydraulic cylinder applications due to its modular construction, cost-effectiveness, and ease of customization.

Whether you are an OEM looking for efficient space-saving actuators or a hydraulic cylinder supplier serving industrial clients, this product provides long-lasting performance across a wide range of low to mid-pressure tasks.

Key Technical Features

Item	Specification
Type	Single Acting, Tie-Rod Type
Bore Size	25 mm – 200 mm
Stroke Range	50 mm – 2000 mm
Max Pressure	Up to 210 bar (3050 PSI)
Rod Type	Chrome-plated, polished steel
Tube Material	Precision honed carbon steel
Surface Finish	Painted / Black oxide / Zinc-plated
Mounting Styles	Clevis, Flange, Trunnion, Cross Tube
Seal Options	Hallite / Parker / NOK
Fluid Compatibility	Hydraulic oil ISO VG 32–68

Why Choose a Tie-Rod Type Single Acting Hydraulic Cylinder?

Serviceable Design
Easily dismantled for seal replacement, ideal for maintenance-heavy systems.
Space-Saving Compactness
Perfect for limited installation areas. Commonly used as a small hydraulic cylinder in OEM assemblies.
Proven Durability
The tie-rod structure ensures strength and leak resistance in demanding conditions.
Lower System Complexity
Operates with a single hydraulic port. Great for simple cylinder hydraulic systems.
Supplier-Preferred Design
Most hydraulic cylinder suppliers stock or manufacture tie-rod designs due to their standardization and demand.

Common Applications

Agricultural machinery (sprayers, tillers, plows)
Dump trailers and tilting beds
Mobile machinery like lift gates or compact cranes
Presses or punch tools with return springs
Material handling arms
Light automation in factory equipment

This Tie-Rod Type Single Acting Hydraulic Cylinder is especially effective where one-way motion, cost efficiency, and quick servicing are priorities.

Customer Benefits

Cost-effective for low to medium duty cycles
Easy to repair and rebuild—no welding required
Available in standard or custom stroke lengths
Quick lead times from experienced hydraulic cylinder suppliers
Custom mounting and port configurations

FAQ

FAQs

What is the main advantage of a tie-rod hydraulic cylinder?

Tie-rod cylinders are easy to assemble, disassemble, and maintain. They’re cost-effective and commonly used in systems where space is limited or frequent servicing is required.
What does “single acting” mean in this context?

It means hydraulic pressure is applied only in one direction—typically for extending the rod. Retraction occurs by gravity, load weight, or mechanical spring.
Is this cylinder suitable for vertical lifting applications?

Yes. It’s commonly used for vertical lifts such as dump trailers or scissor lifts, where gravity handles the retraction.
Can this product be customized by a hydraulic cylinder supplier?

Absolutely. Most hydraulic cylinder suppliers offer options for bore size, stroke, rod diameter, mounting type, seal brand, and surface finish.
When should I choose this over a welded hydraulic cylinder?

Choose a Tie-Rod Type Single Acting Hydraulic Cylinder when easy disassembly, modularity, or field repairability is important. It’s also a better choice for budget-conscious systems with low-to-medium pressure demands.
