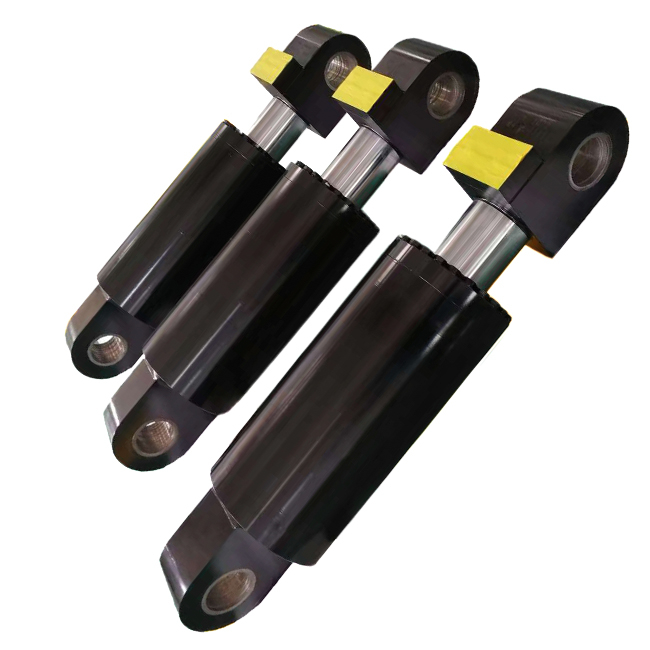

Welded Type Single Acting Hydraulic Cylinder

Welded Type Single Acting Hydraulic Cylinder is a compact and rugged actuator designed for push or pull motion in one direction. It is ideal for agricultural, industrial, and mobile applications where reliable, low-maintenance Hydraulic Cylinder performance is essential.

Model:
Welded Type
Brand:
EAST AI


Availability:



Inquire

Product Description

Welded Type Single Acting Hydraulic Cylinder: Efficient, Economical, and Easy to Integrate

Welded Type Single Acting Hydraulic Cylinder is a space-saving hydraulic actuator that uses pressure in only one direction—either extension or retraction—while returning via gravity or an external force. Its welded body design ensures a strong, leak-proof structure without tie-rods, making it perfect for compact installations.

This type of Hydraulic Piston Cylinder is commonly used in dump trailers, compact construction machinery, farm implements, and other mobile equipment where simplicity and durability are key. It’s a popular choice in Hydraulic Press Cylinder configurations for lifting or pressing operations where single-direction force is needed.

Key Technical Features

Feature	Specification
Type	Welded Body, Single Acting
Bore Sizes	25 mm to 300 mm (customizable)
Stroke Length	Up to 3000 mm or per request
Pressure Rating	Up to 250 bar (3625 PSI)
Rod Material	Chrome-plated steel or induction hardened
Cylinder Body Material	High-strength steel, welded construction
Seals	Hallite / Parker / NOK
Mounting Options	Clevis, flange, trunnion, cross-tube, welded eye
Working Fluid	Mineral oil, hydraulic fluid (ISO VG 32–68)

Why Choose a Welded Type Single Acting Hydraulic Cylinder?

Compact and Rugged Design
No tie rods. Fully welded body construction offers high strength and less installation space.
Low Maintenance
Fewer moving parts compared to double-acting cylinders. Reduced wear on seals and components.
Cost-Effective Operation
Uses pressure in one direction, saving energy and reducing system complexity.
Customizable Mounting
Available with a wide range of mounts including clevis, cross tube, or flange.
Ideal for Specific Functions
Especially useful in tipping trailers, lift tables, and Hydraulic Press Cylinder applications.

Typical Applications

Dump trailers and lifting equipment
Agricultural harvesters and sprayers
Compact construction machinery
Scissor lifts and tilt systems
Industrial Hydraulic Piston Cylinder presses
Door actuators and pusher devices

Whether you need a Hydraulic Cylinder for lifting, pressing, or controlled movement in one direction, the welded single acting cylinder offers reliable performance and high durability.

Benefits at a Glance

Space-saving welded design
Simpler hydraulic circuit (one port only)
Leak-resistant with welded end caps
Precision-machined for long-lasting performance
Lower cost of ownership and maintenance

FAQ

FAQs

What is the main difference between single acting and double acting hydraulic cylinders?

A single acting cylinder uses hydraulic pressure in one direction only (extend or retract), with return motion provided by gravity or external force. Double acting cylinders use pressure in both directions.
Why choose a welded type design over a tie-rod design?

Welded cylinders are more compact, durable, and better suited for harsh environments where reliability and space-saving are priorities.
Can I customize the stroke or mounting style?

Yes. Stroke length, bore size, rod diameter, and mounting types are fully customizable based on your application requirements.
Are these cylinders suitable for high-pressure applications?

Yes. Our welded single acting cylinders can operate up to 250 bar (3625 PSI) depending on the design and seal system used.
What industries commonly use this cylinder type?

Agriculture, construction, material handling, transport trailers, and Hydraulic Press Cylinder machines frequently use this cylinder for one-way push/pull actions.

Related Products

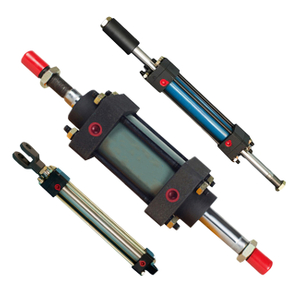

Tie-Rod Type Single Acting Hydraulic Cylinder
