The bore of a hydraulic cylinder is the internal diameter of the cylinder tube where the piston moves. It is one of the fundamental dimensions used when designing or selecting a hydraulic cylinder.
Bore size directly influences the amount of hydraulic force that a cylinder can generate. A larger bore provides a larger piston area, allowing the cylinder to produce greater force under the same hydraulic pressure.
However, increasing bore size is not always the best solution. Cylinder dimensions must be matched with available hydraulic pressure, required force, machine space, operating speed, and the overall equipment design.
Understanding bore size is therefore an important starting point when selecting a hydraulic cylinder.
Hydraulic pressure acts on the piston area inside the cylinder. As the bore diameter increases, the piston area increases as well, allowing the cylinder to generate greater force at the same pressure.
This relationship is particularly important in applications such as excavators, loaders, lifting equipment, agricultural machinery, and industrial presses where hydraulic cylinders must move or support substantial loads.
Engineers therefore need to determine the required force before selecting the cylinder bore. Choosing a bore that is too small may result in insufficient force, while an unnecessarily large bore can increase cylinder size, weight, and hydraulic oil requirements.
Bore size also influences cylinder movement speed because the cylinder must fill and discharge hydraulic fluid as the piston moves.
For a given hydraulic flow rate, a larger bore generally requires more fluid to achieve the same piston movement distance. This means that force and speed need to be considered together rather than independently.
In practical equipment design, engineers often need to balance lifting force, operating speed, hydraulic flow, and available system pressure.
The best cylinder bore is therefore the one that fits the complete hydraulic system rather than simply being the largest available option.
The bore dimension is closely connected to the hydraulic cylinder tube. The tube provides the internal working surface where the piston and sealing system operate.
For this reason, the tube must provide suitable internal accuracy, surface condition, and dimensional stability. These characteristics influence piston movement, sealing performance, friction, and long-term cylinder reliability.

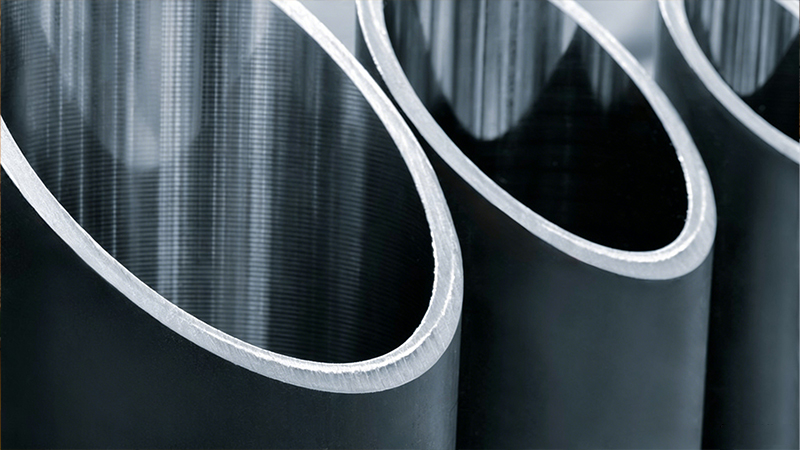

A precision honed tube provides a controlled internal surface that is suitable for hydraulic cylinder applications where stable piston movement and sealing performance are important.
Hydraulic cylinder seals operate against the internal tube environment while maintaining pressure between different chambers.

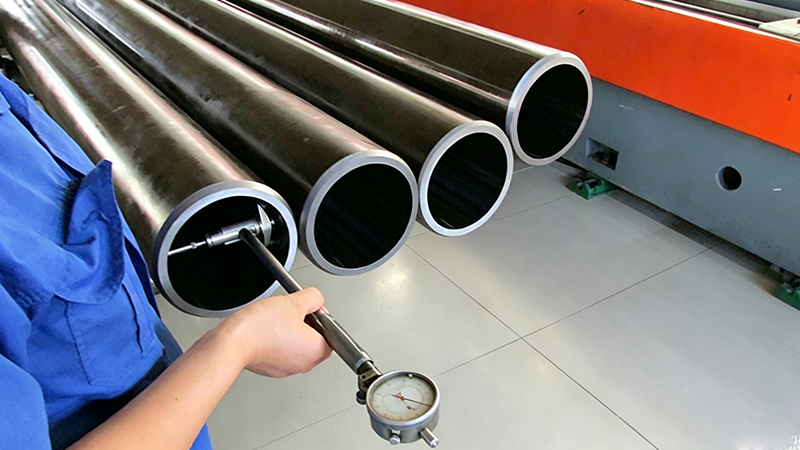

If the bore is not sufficiently controlled, the relationship between the piston, seals, and tube can become less stable. This may increase friction, affect sealing performance, or contribute to premature wear.
Bore accuracy should therefore be considered together with surface quality rather than treated as an isolated dimension.
For manufacturers, consistent bore quality is especially important when producing hydraulic cylinders in repeated batches.
Different applications require different cylinder characteristics.
Construction equipment may require large cylinders capable of handling heavy loads and repeated impact. Industrial machinery may prioritize precise movement and repeatability. Agricultural equipment may require a balance between force, size, and operating speed.
The correct bore depends on the actual application, not simply the machine category.
Engineers should consider load requirements, system pressure, hydraulic flow, stroke, installation space, operating cycle, and environmental conditions before finalizing the cylinder design.
Although bore size is important, it should never be used as the only criterion when selecting a hydraulic cylinder.
Stroke length determines the required movement distance. Rod diameter influences structural strength and resistance to bending. Mounting configuration determines how the cylinder connects to the machine.
Sealing systems, tube quality, rod surface condition, and operating environment also influence the final result.
A reliable hydraulic cylinder is the result of matching these elements together rather than optimizing one specification in isolation.
When engineers determine the required bore, they are effectively defining one of the core dimensions of the hydraulic cylinder.
From there, the piston, rod, tube, seals, mounting points, and hydraulic system must be designed around the required performance.
This is why hydraulic cylinder selection is better understood as a system-level decision. The cylinder needs to deliver the required force and movement while fitting the physical and operating requirements of the equipment.
For OEM manufacturers, early consideration of these relationships can reduce redesigns and improve overall equipment performance.
Standard hydraulic cylinders can be suitable for applications with conventional dimensions and operating requirements. However, equipment manufacturers may encounter situations where standard configurations cannot provide the required combination of force, stroke, mounting, or environmental performance.
In these cases, a customized hydraulic cylinder solution may be more appropriate.
The objective is not simply to make a larger or stronger cylinder, but to develop a cylinder that matches the actual working conditions of the equipment.
The cylinder bore establishes the internal working dimension, but the surrounding components determine how effectively the cylinder performs.
A suitable honed tube provides the internal environment required for piston and seal operation. A properly selected piston rod provides the mechanical connection to the external equipment. The sealing system maintains hydraulic pressure throughout repeated cycles.
When these components are selected according to the same application requirements, the complete cylinder can achieve more stable performance.
This is where product selection becomes part of a broader hydraulic solution rather than a simple component purchase.
Hydraulic cylinder bore refers to the internal diameter of the cylinder tube where the piston moves.
Under the same hydraulic pressure, a larger piston area generally allows the cylinder to produce greater force.
Yes. Bore size influences the amount of hydraulic fluid required for piston movement, so it must be considered together with hydraulic flow.
A precision honed tube provides a controlled internal surface that supports piston movement and sealing performance.
No. Stroke, rod diameter, mounting configuration, pressure, flow, sealing, and operating environment must also be considered.
The selection should be based on required force, system pressure, hydraulic flow, stroke, available installation space, operating conditions, and application requirements.
Hydraulic cylinder bore selection is an important part of equipment design, but reliable performance depends on how the complete cylinder is engineered.
EAST AI supports hydraulic equipment manufacturers with precision cylinder components and application-focused solutions for demanding hydraulic systems.
Understanding the relationship between bore size, tube quality, rod performance, sealing, and operating conditions helps manufacturers build hydraulic cylinders that are better matched to real equipment requirements.
