A distributor once asked me why one of his customers, a crane builder, kept specifying hollow chrome plated rod when solid rod was cheaper and simpler to stock. He assumed the customer was overcomplicating things, but in fact the crane builder had good reasons: the hollow rod let him run hydraulic lines through the center and shaved significant weight off a long boom. The distributor had been steering customers toward solid rod by default and, in doing so, occasionally selling them the wrong product. Knowing when hollow rod is the right answer lets a supplier serve customers better and win specialised business.
Hollow chrome plated rod is a variant of standard rod with a bore running through its center, and while solid rod is the workhorse for most applications, hollow rod solves specific problems that solid rod cannot. For a distributor or supporting service provider, understanding what hollow rod is, what advantages it offers, and where it fits helps you advise customers correctly and stock the right products. This article explains hollow chrome plated rod and when your customers should use it.

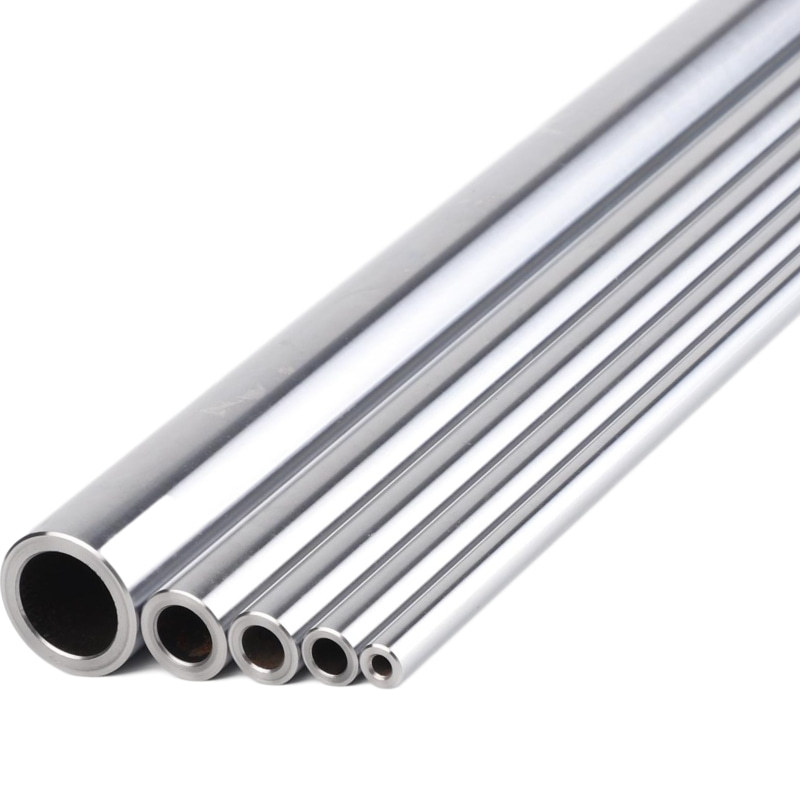

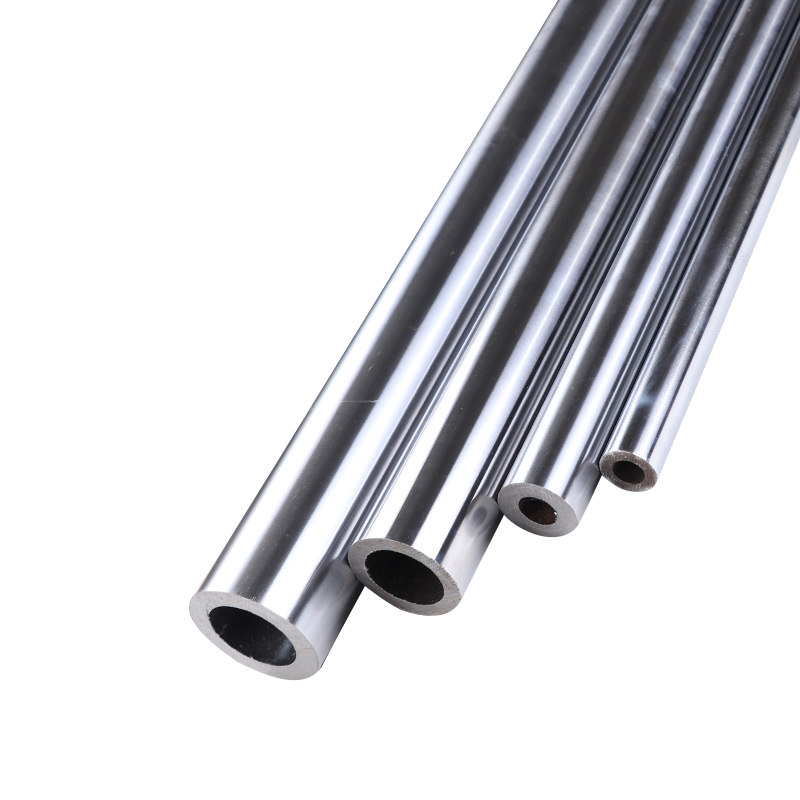

Hollow chrome plated rod is, as the name says, a chrome plated rod with a central bore through its length, effectively a chrome plated tube used as a rod. It has the same hard chrome outer surface as solid rod, giving it the same wear and corrosion resistance on the working surface, but its center is bored out rather than solid steel. The outer surface is plated and finished to the same standards as solid rod, so from the outside it functions identically as a piston rod.
The manufacturing starts from a hollow bar or tube rather than a solid bar, and the outer surface is then processed like any chrome rod: it is plated with hard chrome and ground or superfinished to the final diameter and surface finish. The inner bore may be finished to various degrees depending on its purpose, from a rough bore that simply removes weight to a finished bore intended to carry fluid or serve a function. The key point is that the working outer surface is a full chrome plated rod surface.
Because it is made from hollow stock, the properties of hollow rod differ from solid rod in ways that matter for selection. It weighs less for the same outer diameter, it has different strength and stiffness characteristics, and it offers the internal bore as a usable feature. Understanding these differences is what lets you match hollow rod to the applications where its characteristics are advantages rather than compromises.
The most immediate benefit of hollow rod is weight reduction. Removing the central core of steel, which contributes relatively little to the rod's bending strength compared to the outer material, cuts the weight substantially while retaining much of the structural performance. For applications where weight matters, this can be a decisive advantage, which is why the crane builder chose it for a long boom where every kilogram at the end of a reach costs capacity.
The weight saving is most valuable in moving or extended structures. On a long boom, a mobile machine, or any application where the rod and its assembly are carried, lifted, or accelerated, lighter rod reduces the load on the rest of the structure and the energy needed to move it. In tall or long-reach equipment, reducing the weight of the extended rod can improve the machine's capacity, stability, or efficiency, making hollow rod a genuine engineering choice rather than a mere cost or convenience option.
Lower weight also means lower inertia, which benefits applications with rapid or frequent motion. A lighter rod accelerates and decelerates with less force, which can matter in fast-cycling or dynamic applications where the mass of the moving rod affects performance. For a customer whose application moves the rod quickly or often, the reduced inertia of hollow rod can improve response and reduce the loads that repeated acceleration places on the system.
The central bore of hollow rod is not just a way to remove weight; it can be a functional feature in its own right, which is the other main reason customers choose it. The bore can carry hydraulic fluid, allowing oil to be ported through the center of the rod, which enables designs where fluid must reach the far end of the rod or where internal porting simplifies the plumbing. This was part of the crane builder's reasoning: running lines through the rod cleaned up his design.
The bore can also carry other services, such as electrical cables, sensors, or lines for tooling mounted on the end of the rod. In machines where something must be routed to the working end of a cylinder, the hollow rod provides a protected internal path, avoiding exposed external hoses or cables that could be damaged. This makes hollow rod attractive in applications with rod-end tooling, instrumentation, or complex actuation that needs services delivered through the rod.
For some designs, the bore enables specific functional cylinder configurations, such as certain telescoping, through-rod, or position-sensing arrangements that rely on the internal passage. In these cases the hollow rod is not chosen for weight at all but because the design fundamentally requires the central bore. Recognising when a customer's design needs the bore, versus when they simply want weight saving, helps you understand and serve their requirement.
Hollow rod is not a universal upgrade, and it carries trade-offs that must be weighed. It generally costs more than solid rod because it starts from more expensive hollow stock and can involve additional processing, so for applications where its advantages are not needed, solid rod is the more economical and sensible choice. The weight and bore benefits have to justify the higher cost, which they do in the right applications and do not in ordinary ones.
There are also structural considerations. While hollow rod retains much of its bending strength for its weight, its behaviour under buckling, bending, and load differs from solid rod, and the wall thickness of the hollow rod must be adequate for the loads and for the chrome plating and finishing. A hollow rod is not simply a solid rod with a hole; it must be sized so its wall carries the load and supports the surface. Advising a customer on hollow rod means ensuring the wall is right for their duty, not just offering a lighter part.
For a distributor, the practical approach is to understand each customer's reason for considering hollow rod and to match the product to it. If a customer needs weight saving on an extended structure, needs to route fluid or services through the rod, or has a design that requires the bore, hollow rod is the right recommendation. If they simply need a standard piston rod, solid rod serves them better and cheaper. Being able to explain the trade-offs and steer customers correctly, rather than defaulting to one product, is what makes you a valued supplier for specialised applications.
