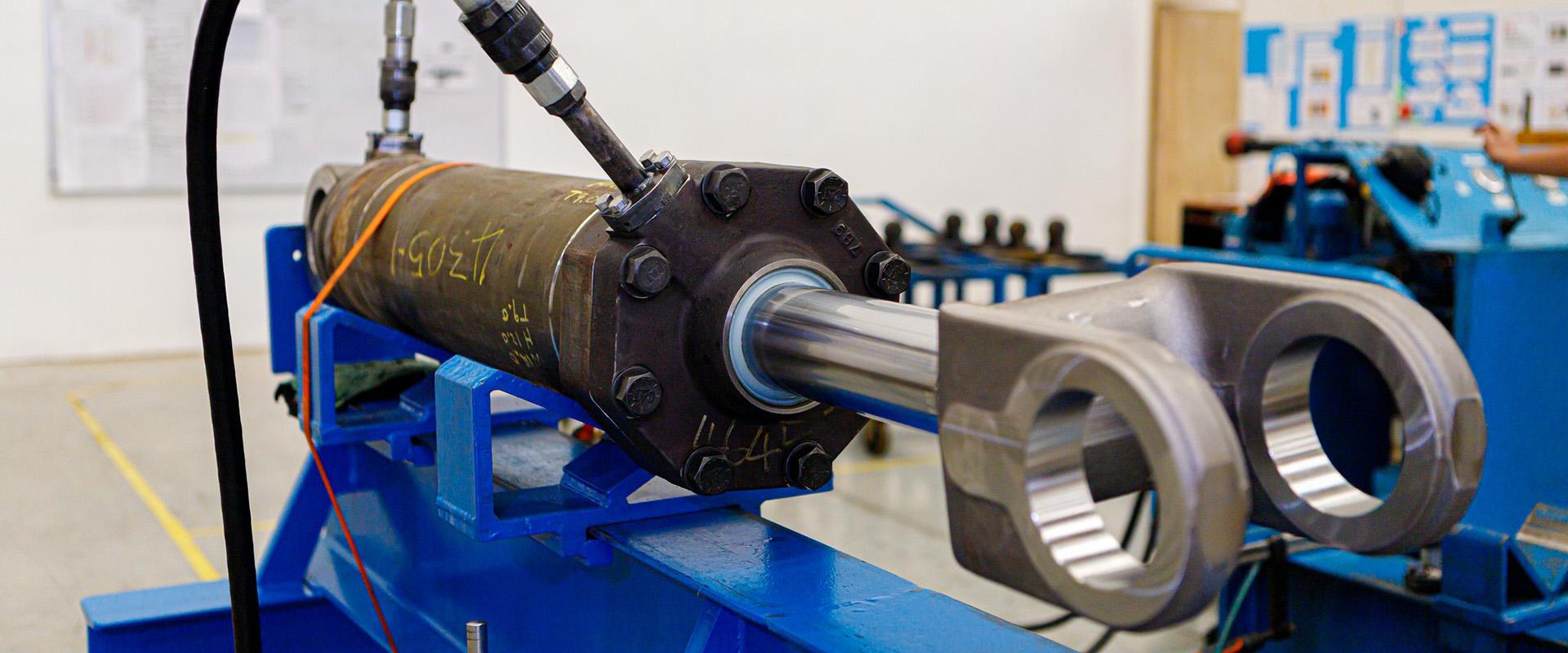

Hydraulic cylinders are widely used in construction equipment, industrial machinery, agricultural equipment, mining systems, and many other hydraulic applications. Although the working principle is simple, the performance of a hydraulic cylinder depends on the quality and coordination of multiple internal components.
A hydraulic cylinder is not just a single product. It is a complete mechanical system consisting of several precision parts that work together to convert hydraulic energy into linear motion.
For equipment manufacturers, understanding each hydraulic cylinder component is important because every part influences reliability, efficiency, maintenance requirements, and service life.
A well-designed hydraulic cylinder requires the right combination of materials, manufacturing accuracy, and component quality.
A typical hydraulic cylinder consists of several major components, including the cylinder tube, piston rod, piston, seals, gland, end caps, and mounting parts.
Each component has a specific function. The cylinder tube provides the pressure chamber where hydraulic fluid acts on the piston. The piston rod transfers hydraulic force into mechanical movement. The sealing system maintains pressure and prevents fluid leakage.
Although these parts perform different functions, they cannot be evaluated separately. The performance of the complete hydraulic cylinder depends on how well all components work together.
For OEM manufacturers, selecting suitable components is an important part of creating reliable hydraulic systems.
The hydraulic cylinder tube is the main body of the cylinder and provides the internal surface where the piston moves.
Unlike ordinary steel tubes, hydraulic cylinder tubes require higher precision because the internal bore directly interacts with seals and moving components.
A high-quality tube needs accurate dimensions, stable mechanical properties, and a suitable internal surface condition to support smooth piston movement.
For demanding hydraulic applications, precision Honed Tubes are commonly used because they provide the controlled internal surface required for reliable sealing and long-term operation.
The quality of the tube directly affects friction, leakage control, and overall cylinder performance.
The piston rod is one of the most important working components of a hydraulic cylinder. During operation, it repeatedly extends and retracts while being exposed to external environments.
Because the rod surface contacts the sealing system continuously, it must provide excellent wear resistance, corrosion protection, and surface consistency.
Hard chrome plated rods are widely used in hydraulic applications because the chrome surface helps improve durability and maintain reliable sealing performance.
For construction equipment, mining machinery, and outdoor hydraulic systems, piston rod quality is especially important because the component must withstand dust, moisture, impact, and repeated operation.

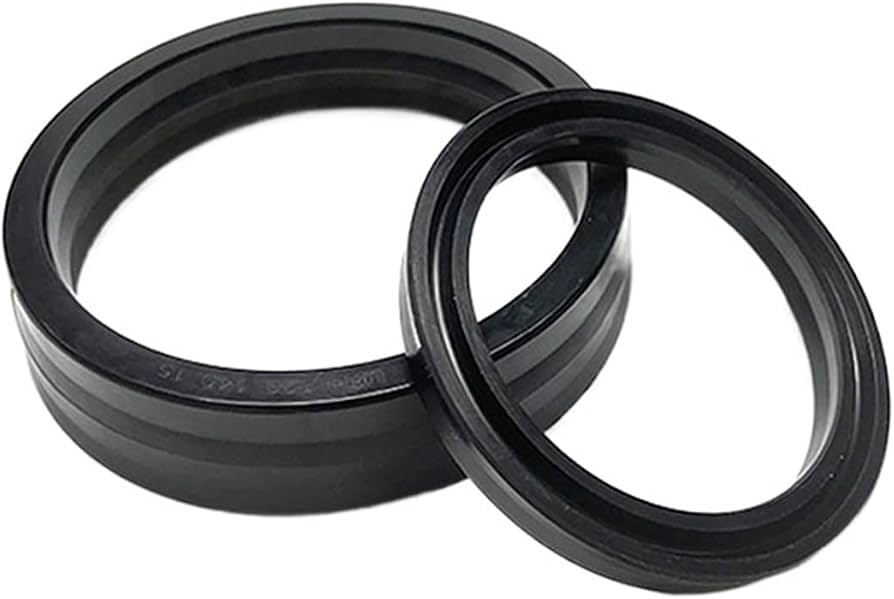

The sealing system is responsible for maintaining hydraulic pressure and preventing fluid leakage during cylinder operation.
Seals are precision components that work under pressure and movement. Their performance depends not only on the seal material but also on the condition of the interacting surfaces.
A high-quality piston rod and honed tube create a better working environment for seals by providing suitable surface conditions and dimensional accuracy.
When components are properly matched, the hydraulic cylinder can achieve smoother movement, lower friction, and longer service life.
This is why hydraulic cylinder performance depends on the complete component system rather than a single part.
The piston separates hydraulic chambers inside the cylinder and transfers hydraulic pressure into mechanical force.
The design and quality of the piston influence force output, movement stability, and internal sealing performance.
Other internal components, including wear rings, guide elements, and mounting parts, also contribute to maintaining alignment and reducing unnecessary friction.
In heavy-duty applications, these components must work together to handle repeated loads and demanding operating conditions.
A hydraulic cylinder achieves reliable performance only when all components are properly matched.
The tube provides the precision internal environment. The piston rod delivers mechanical movement. The seals maintain pressure. The piston controls hydraulic force transmission.
If one component does not meet requirements, the performance of the entire cylinder may be affected.
For example, a high-quality seal cannot compensate for a damaged rod surface, and a strong piston rod cannot solve problems caused by poor tube accuracy.
A complete hydraulic solution requires balanced component quality.
For OEM manufacturers, component selection directly affects the quality of the final equipment.
Stable component quality helps manufacturers reduce production problems, improve assembly efficiency, and maintain consistent product performance.
Important factors include material control, dimensional accuracy, surface treatment, manufacturing capability, and inspection standards.
Working with experienced suppliers allows OEM customers to achieve more reliable production and reduce risks caused by inconsistent components.
Different industries require different hydraulic cylinder solutions.
Construction machinery requires components that can handle impact loads, dust, and outdoor conditions. Industrial equipment may require higher precision and repeatability. Mining applications often require additional durability because of continuous operation in harsh environments.
The correct component selection depends on the actual working conditions, expected service life, and performance requirements.
A professional supplier should understand the application before recommending suitable hydraulic cylinder components.
Modern hydraulic equipment requires more than individual components. Manufacturers increasingly need suppliers who can provide reliable technical support and understand the complete application.
From selecting suitable materials to controlling manufacturing consistency, every stage influences final hydraulic cylinder performance.
By combining precision components with application knowledge, manufacturers can build hydraulic systems with improved reliability and reduced maintenance requirements.
A complete solution approach helps equipment manufacturers achieve better long-term performance.
The main components include the cylinder tube, piston rod, piston, seals, gland, end caps, and internal guiding components.
The tube provides the internal working surface for piston movement and directly affects sealing performance and cylinder reliability.
A chrome plated rod provides wear resistance, corrosion protection, and a reliable sealing surface for hydraulic cylinder operation.
Precision components improve assembly consistency, reduce wear, and help maintain stable performance during operation.
The quality and compatibility of components influence friction, leakage risk, durability, and overall equipment reliability.
Selection should consider application conditions, load requirements, operating environment, material quality, and supplier capability.
Reliable hydraulic cylinders are built from reliable components.
EAST AI supports hydraulic equipment manufacturers with precision Honed Tubes and Chrome Plated Rods designed for demanding hydraulic applications.
By selecting suitable components and understanding application requirements, manufacturers can improve equipment reliability, reduce maintenance needs, and create long-term value.
