During supplier discussions, chrome thickness is often one of the first specifications mentioned.
20 microns.
25 microns.
30 microns.
The conversation usually revolves around numbers because they are easy to compare.
On paper, thicker chrome plating appears to offer better protection. Many purchasing decisions are made with that assumption in mind.
Yet field performance does not always follow the same logic.
Most hydraulic cylinder manufacturers have encountered situations where two chrome plated rods with similar specifications deliver very different results in service. One remains stable after years of exposure to moisture, dust, and changing temperatures. The other begins showing signs of corrosion much sooner than expected.
When this happens, the root cause is rarely chrome thickness alone.
Corrosion resistance is usually influenced by a combination of material quality, surface preparation, plating consistency, and process control long before the rod reaches the customer.

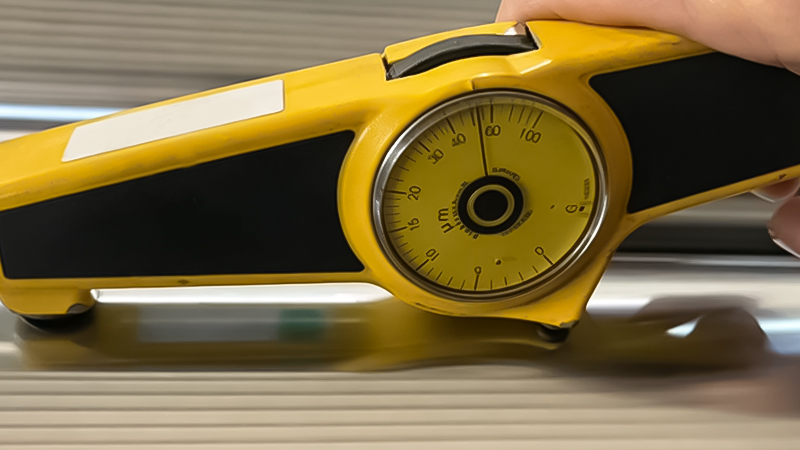

Chrome thickness is important.
Without sufficient plating thickness, the protective layer may wear prematurely, exposing the base material to the operating environment.
The challenge is that thickness only measures one aspect of the plating.
It does not reveal:
How well the chrome layer is bonded to the base material
Whether plating thickness is uniform across the rod
The condition of the substrate before plating
The quality of surface grinding after plating
The consistency of the production process from batch to batch
Two rods can share the same nominal chrome thickness while having very different long-term corrosion performance.
This is one reason experienced buyers rarely evaluate chrome plated rods based on thickness alone.
Corrosion resistance begins before plating.
The condition of the base material and surface preparation directly affects how well the chrome layer performs later.
If surface contamination, scale, or preparation defects are present before plating, they may create weak points beneath the protective layer.
The rod may pass incoming inspection.
It may even pass initial testing.
The problem often appears months later, when moisture and operating conditions begin exposing those imperfections.
In practice, many corrosion issues can be traced back to preparation stages that received little attention because the finished rod looked acceptable after plating.
A rod with perfectly consistent chrome distribution often performs better than a rod with excessive thickness variation.
This becomes especially important on longer rods.
During production reviews, uneven plating distribution is one of the factors engineers frequently examine when investigating unexpected corrosion behavior.
A localized thin area can become the first point of attack, even if average plating thickness meets specification.
From a performance standpoint, consistency is often more valuable than chasing the highest number on a specification sheet.
Chrome plating acts as a protective layer.
It does not replace the importance of the material underneath.
Material composition, cleanliness, and structural integrity continue to influence overall performance throughout the rod’s service life.
This is particularly noticeable in demanding applications where rods are exposed to:
Outdoor environments
High humidity
Frequent temperature changes
Industrial contamination
When the underlying material varies from batch to batch, corrosion behavior can become less predictable, even when plating specifications remain unchanged.
This is why many equipment manufacturers place increasing emphasis on raw material traceability and supplier consistency.

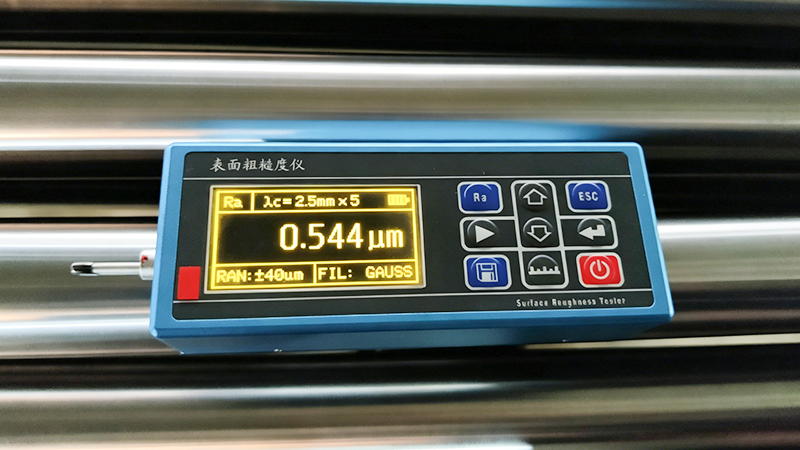

After plating, surface grinding determines much of the final working condition of the rod.
The goal is not simply achieving dimensional accuracy.
Grinding quality affects:
Surface finish consistency
Contact behavior with seals
Wear characteristics
Long-term corrosion performance
A well-controlled grinding process produces a uniform working surface that helps preserve both sealing performance and surface protection.
Small inconsistencies may not be visible during inspection, but they often become visible during years of operation.
A few years ago, an equipment manufacturer reported premature corrosion on hydraulic rods used in a coastal environment.
The initial assumption was straightforward.
Chrome thickness must have been insufficient.
Inspection results told a different story.
The rods met the specified plating thickness requirement.
Further investigation shifted attention toward process consistency, surface preparation, and plating distribution.
The issue was not linked to a single measurement.
It was the result of several small variations that collectively reduced long-term corrosion resistance.
Situations like this are not unusual.
Many field failures originate from factors that never appear as headline specifications on a quotation sheet.
When evaluating chrome plated rod suppliers, experienced buyers tend to ask broader questions.
They want to understand:
How materials are sourced
Whether plating processes are controlled consistently
How dimensional stability is maintained
What inspection procedures are used
Whether quality remains stable between production batches
These discussions often reveal more about future performance than chrome thickness alone.
Because in industrial applications, the challenge is rarely producing one good rod.
The challenge is producing the same quality repeatedly over time.
Chrome thickness remains an important specification.
Ignoring it would be a mistake.
At the same time, it should not be treated as the only indicator of corrosion resistance.
Long-term performance is shaped by a chain of manufacturing decisions, including material selection, surface preparation, plating quality, grinding control, and inspection standards.
The most reliable chrome plated rods are rarely the result of a single specification.
They are usually the result of a production process that consistently controls every step leading up to the finished product.
For manufacturers building hydraulic cylinders, construction equipment, agricultural machinery, and industrial systems, that consistency often becomes more valuable than any individual number on a drawing.
When evaluating chrome plated rods for hydraulic cylinders or industrial equipment, focusing on a single specification rarely provides the full picture.
Material consistency, plating quality, dimensional stability, and process control all influence how a rod performs after it leaves the factory.
