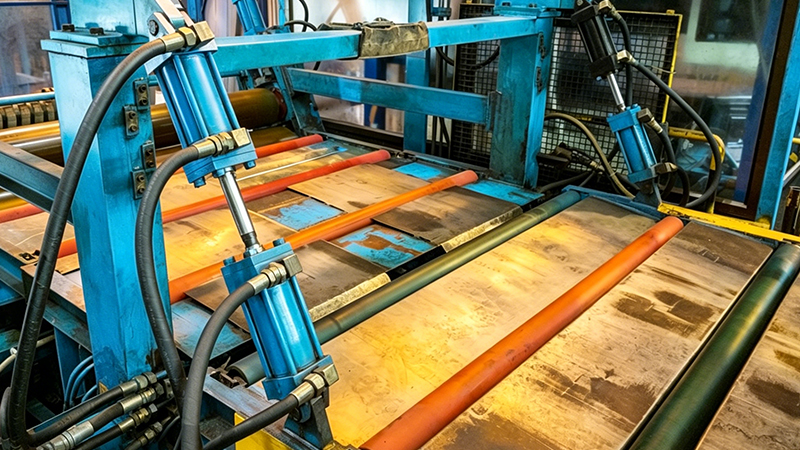

Why Hydraulic Cylinder Drift Happens When the Load Is Supposed to Stay Still

Introduction

In hydraulic systems, one of the more frustrating issues in real operation is cylinder drift.

The machine is stopped, valves are in neutral position, and everything appears normal. Yet the load slowly moves, sometimes barely noticeable at first, sometimes obvious over time.

This kind of behavior is often misunderstood. In many cases, the first assumption is that the system pressure is unstable or that the pump is not holding. But field experience shows the situation is usually more distributed across the system rather than a single failure point.

Cylinder drift is not just a performance issue. In many applications, it directly affects safety, positioning accuracy, and long-term equipment reliability.

1. What Cylinder Drift Actually Looks Like in Practice

In real industrial environments, drift rarely happens suddenly.

It usually appears in one of these forms:

• A lifted arm slowly lowering under load

• A press cylinder losing position during idle holding

• An actuator shifting slightly during stationary operation

• Repeated need for re-adjustment in positioning systems

At first, the movement is small enough to be ignored. Over time, it becomes part of daily operation adjustments, which is usually when the issue starts getting attention.

2. Where the Problem Is Often Misunderstood

When drift occurs, the immediate focus is often on external components such as pumps or control valves.

That is understandable, but in many real cases, the root behavior is not isolated in one component.

Hydraulic systems work as a closed loop under load. Even small internal inefficiencies inside the actuator can create noticeable movement over time, especially when holding force is required rather than active motion.

This is why cylinder drift is often seen as a “system symptom” rather than a single-component failure.

3. The Real Mechanism Behind Load Movement

Cylinder drift is generally the result of internal imbalance in holding force.

Several factors typically contribute to this behavior:

3.1 Internal bypass leakage

Even a very small internal leakage path inside the cylinder can gradually reduce holding pressure on one side of the piston.

This does not immediately stop the system from working, but it affects static stability.

3.2 Seal condition under static load

Sealing performance is not only related to material quality, but also surface interaction under long-duration static pressure.

Over time, micro-level changes in sealing contact can allow slow pressure equalization.

3.3 Valve holding efficiency in real conditions

Directional control valves are designed to isolate flow paths, but real-world conditions such as contamination or wear can reduce sealing efficiency.

This can contribute to slow movement under load.

3.4 Load imbalance and gravity influence

In vertical or inclined systems, gravity creates continuous force on the actuator.

If the internal resistance is slightly lower than expected, gradual movement becomes visible.

4. How Engineers Usually Approach Diagnosis

In practice, drift is not diagnosed by replacing components randomly.

A more structured approach is typically used:

• First, isolate whether movement is directional or symmetrical

• Then check whether drift occurs under static pressure only

• Next, evaluate valve holding behavior under load

• After that, inspect internal leakage behavior in the cylinder

• Finally, verify system contamination level and oil condition

What matters most is separating system-side behavior from actuator-side behavior before making any replacement decision.

5. Why Manufacturing Consistency Matters More Than It Seems

One of the less obvious factors in cylinder drift is consistency in manufacturing.

Even when design parameters are correct, variation in internal geometry, surface interaction, or sealing interfaces can influence how the system behaves under static load.

In applications requiring long holding periods, small inconsistencies become amplified over time.

This is where controlled production processes make a difference.

At EAST AI hydraulic cylinders, components are manufactured with controlled dimensional consistency and surface processing standards to reduce variability in real operation conditions.

More technical details on cylinder configurations can be found here:
https://www.east-ai.com/hydraulic-cylinder.html

6. Engineering Approach to Reduce Drift Behavior

From a practical engineering standpoint, drift is not solved by a single fix. It is usually addressed through system-level stabilization:

• Improving internal sealing stability under static pressure

• Ensuring tight control of machining tolerances across piston and tube interfaces

• Maintaining consistent surface finish quality in sliding contact areas

• Reducing contamination influence through system cleanliness control

• Verifying valve holding performance under real load conditions

In most cases, the goal is not eliminating all micro-level movement, but reducing it to a stable and predictable range.

7. Where This Issue Commonly Appears

Cylinder drift is more frequently observed in systems such as:

• Construction machinery with lifting functions

• Industrial presses with holding cycles

• Material handling systems

• Automated positioning equipment

• Heavy-duty hydraulic support structures

In these applications, static load holding is just as important as motion performance.

8. Application Perspective

In real industrial use, the impact of cylinder drift is not limited to mechanical performance.

It often leads to:

• Increased operator intervention

• Reduced positioning accuracy

• Higher system fatigue over time

• Lower process consistency in production environments

This is why many OEM manufacturers prioritize stability over peak performance when selecting hydraulic components.

More application-specific configurations can be found here:
https://www.east-ai.com/single-acting-hydraulic-cylinder.html

9. Engineering Support

When cylinder drift is observed, it is worth evaluating the full system behavior rather than focusing only on the actuator or pump.

In many cases, the issue is linked to a combination of internal leakage behavior, valve efficiency, and system load conditions.

EAST AI provides hydraulic cylinders, honed tubes, and piston rod components manufactured according to engineering drawings, supporting OEM and industrial applications where consistency and stability are critical.

Technical discussions are available for application-specific requirements.

Contact Engineering Support

If you are experiencing gradual pressure loss or unstable hydraulic performance, our engineering team can help analyze whether the issue is related to cylinder internal condition, machining consistency, or system contamination.

We support custom hydraulic cylinder components and engineering-level evaluation based on real application requirements.
