Introduction

Hydraulic cylinder rod surface damage is a common issue observed in industrial hydraulic systems.

In many real-world applications, the problem does not start with sudden failure. It usually develops gradually, beginning with small surface marks, minor scratches, or uneven wear patterns.

Operators often first notice:

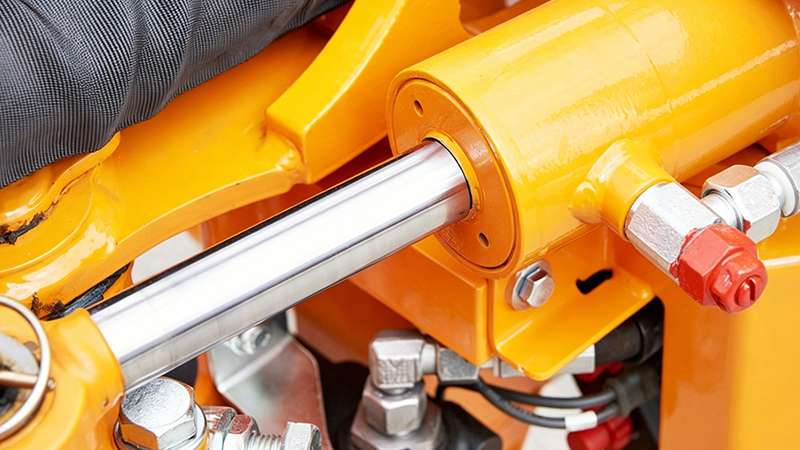

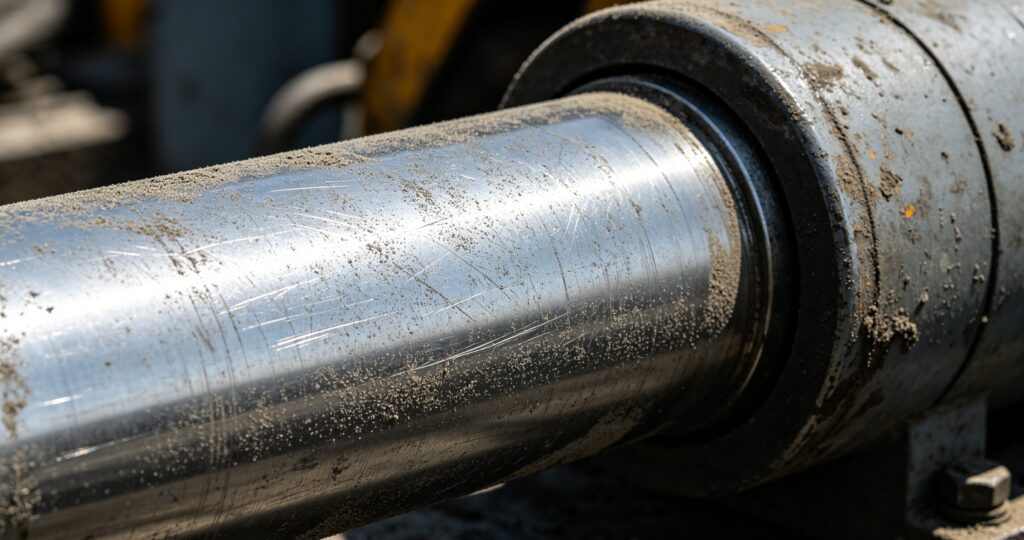

• Scratches on the piston rod surface

• Localized chrome layer damage

• Increased seal wear rate

• Slight performance degradation over time

From an engineering perspective, these symptoms are usually not caused by a single factor, but by a combination of operating conditions, assembly accuracy, and surface stability.

This article is based on practical manufacturing and inspection experience in hydraulic cylinder components. Sensitive project information has been removed for confidentiality.

1. Problem Description

In typical hydraulic applications, rod surface damage usually presents as:

• Visible scratches on piston rod surface

• Chrome coating wear or partial peeling

• Uneven wear marks along movement direction

• Increased seal friction and reduced lifespan

In most cases, the hydraulic system is still operational at this stage. However, performance stability gradually decreases.

2. When This Problem Usually Occurs

Rod surface damage is more likely to appear under the following conditions:

• Long-term high-load operation

• Dusty or particle-contaminated environments

• Frequent reciprocating motion cycles

• Slight misalignment during installation or operation

These conditions do not cause immediate failure, but gradually accelerate surface degradation.

3. Root Cause Analysis

Based on engineering inspection experience, the main contributing factors are typically as follows:

3.1 External Contamination

If sealing or protection is insufficient, fine particles may enter the contact interface.

Over time, these particles cause micro-abrasion on the rod surface, leading to visible scratches.

3.2 Surface Hardness and Chrome Layer Stability

If the chrome plating layer is inconsistent in thickness or hardness, localized wear may occur under continuous friction.

This issue often becomes more visible under high-frequency operating conditions.

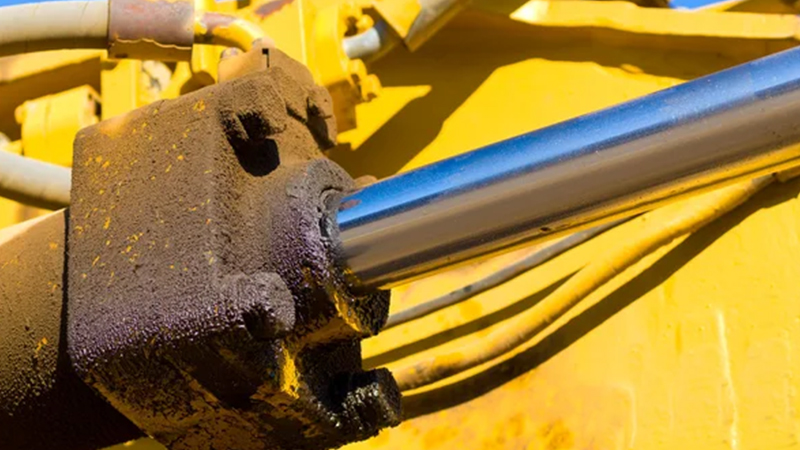

3.3 Side Load or Misalignment

Improper installation or uneven structural loading can cause side force on the piston rod.

This results in uneven contact stress and localized wear patterns on one side of the rod surface.

3.4 Tolerance and Assembly Deviation

Even small deviations in alignment or fitment can affect load distribution across the sealing and sliding surfaces.

Over time, this accelerates uneven wear and surface damage.

4. Engineering Diagnosis Approach

In field applications, root cause identification typically includes:

• Visual inspection of wear direction and pattern

• Seal condition analysis

• Rod straightness measurement

• Alignment check of hydraulic cylinder installation

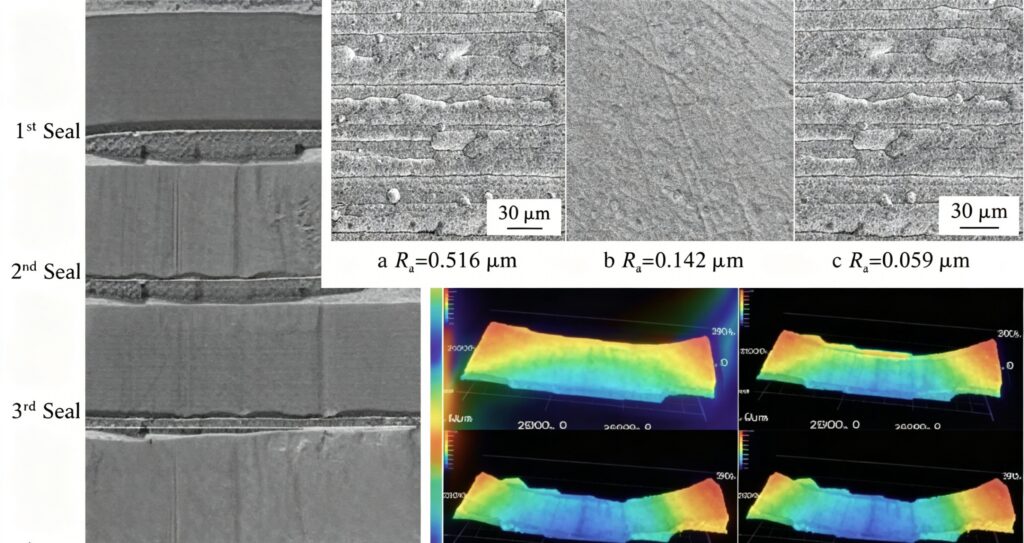

• Surface roughness (Ra) testing

By combining these inspection results, engineers can usually identify whether the issue is caused by contamination, misalignment, or surface inconsistency.

5. Engineering Solution Approach

In most cases, solving rod surface damage issues requires improving consistency rather than changing a single parameter.

Common engineering approaches include:

• Improving surface hardness consistency of piston rods

• Controlling chrome plating thickness uniformity

• Optimizing honing and polishing processes

• Ensuring proper alignment during installation

• Strengthening pre-shipment inspection standards (dimension + surface + pressure testing)

The key objective is to reduce variation across production and operating conditions.

6. Engineering Insight

Based on field experience, rod surface damage is rarely caused by a single failure point.

It is usually the result of multiple factors combined, such as:

• External contamination

• Mechanical misalignment

• Surface treatment inconsistency

• Long-term wear accumulation

This is why similar systems may show different failure rates even under identical operating conditions.

7. Application Scope

This type of issue is commonly found in:

• Construction machinery hydraulic systems

• Industrial hydraulic equipment

• Agricultural machinery

• Automated mechanical systems

8. Engineering Support

If hydraulic cylinder rod surface damage, scratches, or uneven wear are observed in your system, it is recommended to evaluate both operating conditions and manufacturing consistency of components.
