Introduction

A question that comes up frequently during supplier evaluations is surprisingly simple:

If two hydraulic cylinders are manufactured according to the same drawing, why can their service life be dramatically different?

On paper, the specifications may appear identical.

The bore size matches.

The rod diameter matches.

The stroke length matches.

Sometimes even the material designation is the same.

Yet one cylinder may operate reliably for years, while another begins showing leakage, abnormal wear, or performance degradation much earlier than expected.

For equipment manufacturers and maintenance teams, this difference often translates into higher downtime costs, more frequent repairs, and inconsistent machine performance.

The reason is that a hydraulic cylinder is not defined by its drawing alone.

The drawing determines what should be produced. The manufacturing process determines what is actually delivered.

The Drawing Defines Dimensions. Manufacturing Defines Performance.

A hydraulic cylinder drawing provides dimensional requirements, tolerances, and structural details.

What it does not show is how consistently those requirements are achieved during production.

Two cylinders can meet the same drawing requirements while having meaningful differences in:

• Material consistency

• Surface finish quality

• Heat treatment stability

• Machining accuracy

• Assembly precision

• Inspection standards

These differences are often invisible when the cylinder is new, but become increasingly visible after thousands of operating cycles.

Material Consistency Is Often Overlooked

Many buyers focus on material grade.

For example, if both suppliers specify the same steel grade, the assumption is that the material performance will also be the same.

In reality, material quality begins long before machining.

Factors such as chemical composition stability, inclusion control, and raw material traceability can influence how components behave under load and fatigue conditions.

Two piston rods made from the same nominal steel grade may not respond identically after chrome plating, machining, or long-term operation.

This is one reason why service life differences often appear long after delivery.

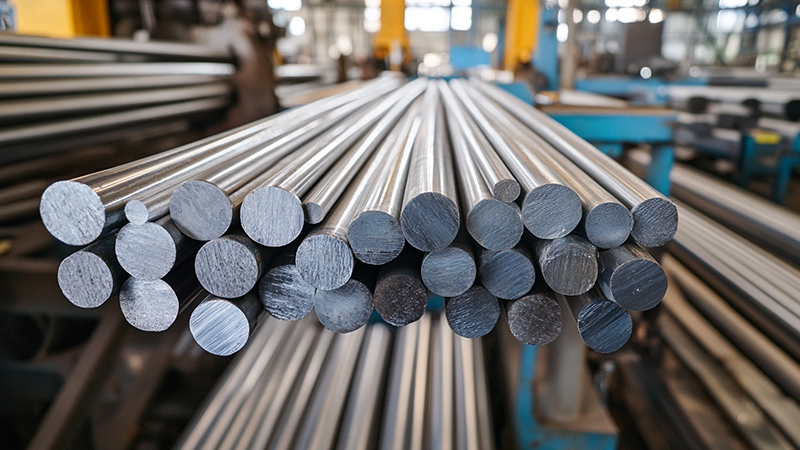

chrome plated rod production：https://www.east-ai.com/chrome-plated-rod.html

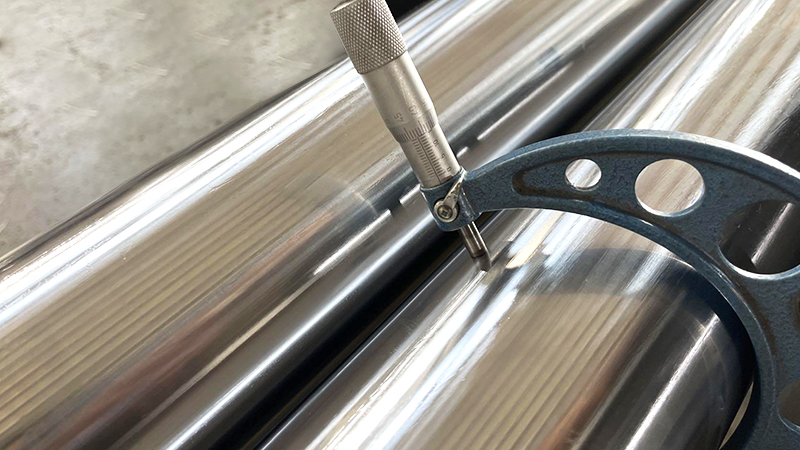

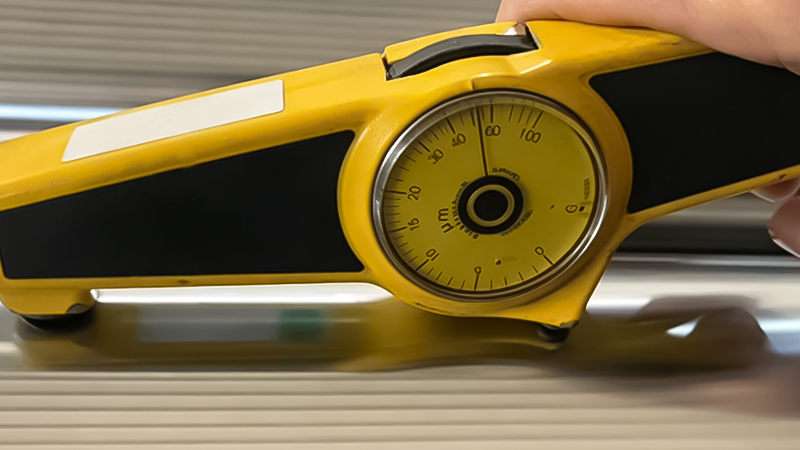

Surface Quality Influences More Than Appearance

When evaluating hydraulic cylinder components, surface finish is frequently associated with appearance.

In practice, it affects much more.

Rod surfaces and tube bores interact continuously with sealing systems throughout the cylinder’s operating life.

Small differences in surface consistency can influence:

• Seal wear rates

• Friction characteristics

• Lubrication behavior

• Long-term pressure retention

A cylinder may pass initial testing while still developing premature wear patterns months later if surface quality is not consistently controlled.

For this reason, experienced equipment manufacturers often pay close attention to machining and finishing processes rather than focusing solely on dimensional compliance.

honed tube manufacturing process：https://www.east-ai.com/honed-tube.html

Tolerance Compliance and Tolerance Stability Are Different Things

Most manufacturers can produce a part that falls within tolerance.

The bigger challenge is maintaining that result consistently across every production batch.

A cylinder assembled from components that are technically within tolerance can still perform differently if dimensions consistently drift toward opposite ends of the specification range.

Over time, this affects:

• Seal performance

• Internal leakage behavior

• Load distribution

• Operating efficiency

For OEM manufacturers running long production cycles, consistency often becomes more important than achieving an individual measurement target.

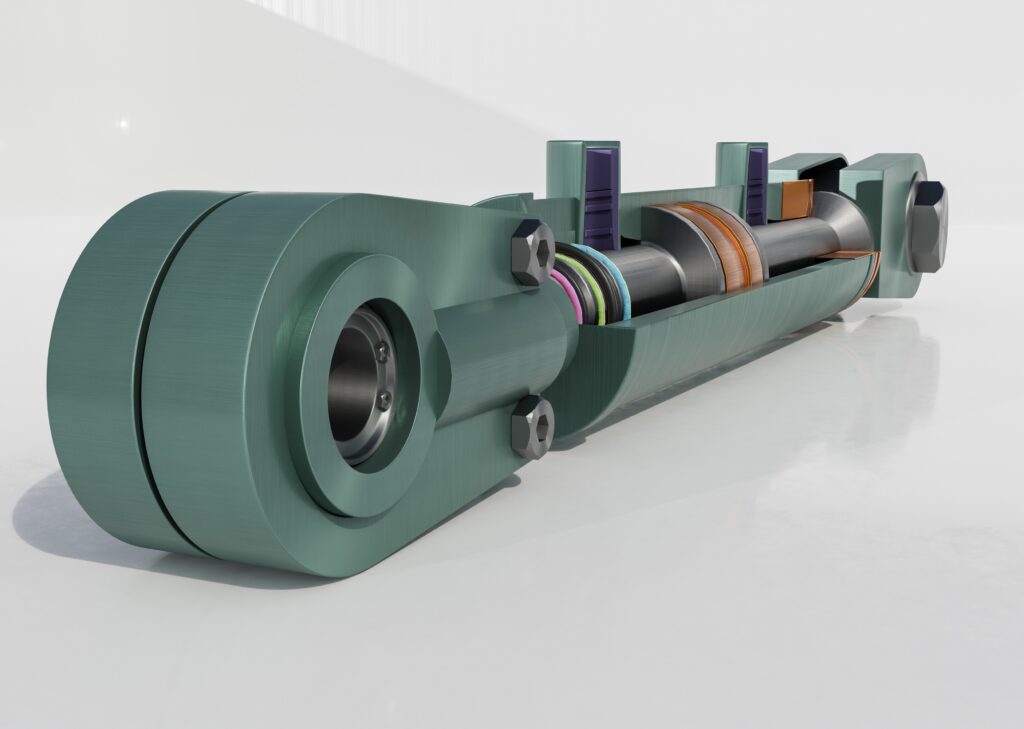

hydraulic cylinder solutions：https://www.east-ai.com/hydraulic-cylinder.html

Service Life Is Built Through Process Control

When engineers investigate why one cylinder outlasts another, the answer is rarely a single factor.

It is usually the result of hundreds of small decisions made throughout production.

Examples include:

• Raw material sourcing standards

• Honing process control

• Chrome plating consistency

• Heat treatment verification

• Assembly procedures

• Inspection methods

Each step contributes a small amount to the final outcome.

Collectively, they determine whether the cylinder performs consistently after years of operation.

This is why two products that look nearly identical on a drawing can behave very differently in the field.

What Experienced Buyers Usually Evaluate

Procurement decisions in industrial applications are increasingly focused on long-term performance rather than initial purchase price.

Experienced buyers often ask questions such as:

• Can the supplier maintain quality across different production batches?

• Is there traceability for raw materials?

• How are critical dimensions verified?

• What inspection procedures are performed before shipment?

• How does the supplier control variation between orders?

These questions often reveal more about future performance than a drawing alone.

Looking Beyond the Initial Cost

The lowest purchase price does not always produce the lowest operating cost.

For equipment manufacturers, distributors, and end users, the true cost of a hydraulic cylinder includes:

• Downtime

• Replacement labor

• Seal replacement

• Production interruption

• Customer service costs

A cylinder that remains stable throughout its service life typically creates significantly lower overall operating costs than one that requires frequent intervention.

This is why consistency has become an increasingly important factor in supplier selection.

Conclusion

A hydraulic cylinder drawing defines the target.

Service life is determined by everything that happens between raw material selection and final inspection.

When two cylinders share the same dimensions but achieve very different operating lives, the difference is usually found in manufacturing consistency rather than design.

For OEM manufacturers, industrial equipment builders, and hydraulic system integrators, evaluating process control is often just as important as evaluating specifications.

In many applications, long-term reliability is not created by a single feature.

It is created by maintaining the same standard on every component, in every batch, over time.

Need Technical Support?

Selecting hydraulic cylinder components involves more than matching dimensions on a drawing.

For applications where reliability, batch consistency, and long-term performance are critical, engineering evaluation before procurement can help reduce operational risks and maintenance costs.

EAST AI manufactures hydraulic cylinders, honed tubes, chrome plated rods, and hydraulic components according to customer drawings and application requirements.

If you are evaluating a new project or comparing suppliers, our engineering team is available to discuss technical requirements and manufacturing considerations.

Need a Second Opinion on Hydraulic Cylinder Quality?

When evaluating hydraulic cylinders from different suppliers, dimensional compliance is only part of the picture.

Long-term performance is often influenced by factors that are not visible on a drawing, including material consistency, machining stability, surface finish quality, and production process control.

If you are comparing suppliers for an OEM project, reviewing a new design, or investigating premature cylinder failures in the field, an engineering review before procurement can often help identify potential risks before they become costly problems.

EAST AI supports OEM manufacturers, distributors, and industrial equipment builders with custom hydraulic cylinders, honed tubes, chrome plated rods, and hydraulic power unit components manufactured according to customer drawings and application requirements.

For technical discussions, drawing reviews, or project evaluations, feel free to contact our engineering team.
