Written by Alex, Production Engineer at EAST AI
I get this question almost every week from new customers: "Which hardness grade do I actually need?" Usually they've already got a bore size and a working pressure figured out, but the hardness callout on the drawing just says "hard chrome" without specifying the base rod treatment underneath it. That's a problem, because the chrome layer is only as good as what's under it.
A chrome plated rod isn't a single product — it's a chrome layer applied over a base rod that's been through one of several heat treatment routes. The treatment route changes the rod's core hardness, its resistance to bending fatigue, and how it behaves under shock load. Getting this wrong doesn't usually show up on day one; it shows up eighteen months into service when the rod starts to set or bend under repeated cycling.
Induction and hardened chrome plated rod goes through localized induction heating followed by rapid quenching, which hardens the outer layer of the base steel to roughly HRC 50-62 while leaving the core more ductile. This combination gives you a rod that resists surface fatigue and wear well, while still having enough toughness in the core to absorb shock loading without cracking.
This is the grade we recommend most often for cylinders that see high cycle counts and side loading — construction equipment booms, presses, and general industrial rams that run continuously. If your application spec calls out a minimum surface hardness for wear resistance, induction hardened is usually the starting point.
Quenched and tempered chrome plated rod goes through full-section heat treatment rather than surface-only hardening, bringing the rod to roughly HRC 25-32 through its entire cross-section. The tempering step after quenching relieves internal stress and improves toughness, so the rod handles bending and shock loads more evenly than a surface-hardened equivalent.
We tend to see this grade specified for longer rods and applications where the rod experiences more uniform loading rather than concentrated surface wear — think telescopic cylinders and longer-stroke applications where a rod could otherwise be prone to bending over its length.
A rod can pass a surface hardness check right after plating and still fail in service if the core hardness doesn't match the application's bending and shock requirements. Surface hardness protects against wear and abrasion at the working surface; core hardness protects against permanent set and fatigue cracking under repeated flexing.
This is why we ask customers for their actual working pressure, stroke length, and whether the application involves side loading, rather than just quoting off a bore diameter. A rod that's correctly matched on hardness for its duty cycle will run longer between seal changes and won't develop the slow, permanent bend that shows up as an alignment problem months later.
Normalized chrome plated rod, typically in the HRC 15-22 range, is the lightest-duty treatment we offer and suits applications with lower pressure, lower cycle counts, and minimal shock loading. It's a cost-effective choice when the application genuinely doesn't demand the fatigue resistance of a hardened core, but it's not the right call for anything running continuous duty or handling impact loads.
We've had customers ask to downgrade from induction hardened to normalized purely on price, and depending on the actual duty cycle, that can be a reasonable trade-off — or it can shorten service life significantly. This is a conversation worth having with your supplier before the order is placed, not after a field failure.
One pattern we've seen more than once: a customer specifies normalized rod for what they describe as "light duty," and the actual application turns out to involve intermittent shock loading from a hydraulic hammer attachment or similar equipment. The rod holds up fine for the first few months, then starts showing surface fatigue cracking at the plating-to-base interface under repeated impact.
The fix in these cases isn't a plating problem — it's a treatment grade mismatch. Once the actual duty cycle (including any attachment or intermittent shock use) is disclosed accurately, moving to induction hardened or quenched and tempered typically resolves the recurring failure. This is why we ask detailed questions about end-use rather than just quoting from a bore-and-length spec sheet.

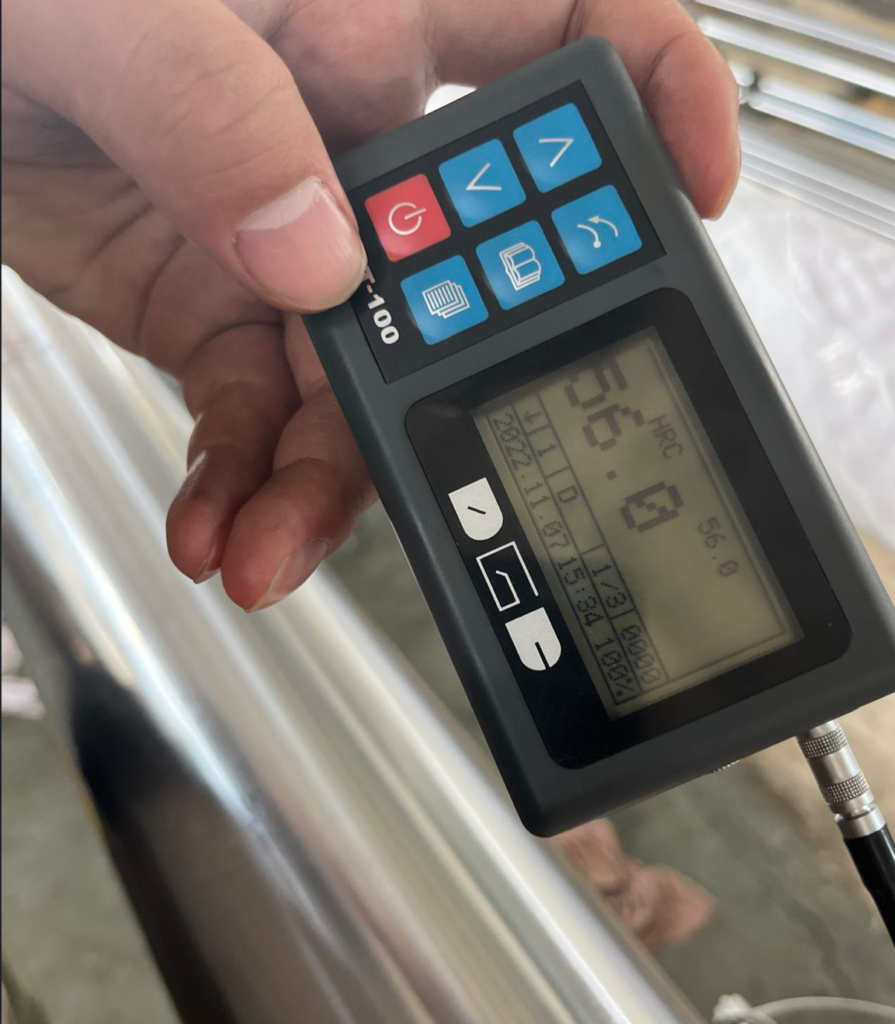

Every batch is checked for both surface and core hardness using calibrated hardness testing equipment as part of our 100% pre-shipment inspection process. We don't rely on the heat treatment furnace's process log alone — we verify the finished result on the actual rod, because furnace parameters can drift and the only number that matters is what's in your hands.
This inspection record travels with the batch, so if a hardness question comes up after delivery, we can trace it back to the specific production run rather than giving you a general spec sheet answer.
To recommend the right hardness grade the first time, tell us the working pressure, stroke length, whether the application involves side loading or shock loading, and the expected duty cycle (continuous, intermittent, or occasional). If you already know the required HRC range from your own engineering, just tell us that directly and we'll quote to it.
What's the difference between induction hardened and quenched and tempered chrome plated rod?
Induction hardened rod is surface-hardened to roughly HRC 50-62 with a tougher core, suited to high-cycle wear applications. Quenched and tempered rod is hardened through its full cross-section to roughly HRC 25-32, suited to applications with more uniform bending loads.
Is normalized chrome plated rod suitable for construction equipment?
It depends on the actual duty cycle. Normalized rod (HRC 15-22) suits lower-pressure, lower-cycle applications, but continuous-duty construction equipment or anything with shock loading typically needs induction hardened or quenched and tempered rod instead.
Can I request a specific HRC range for a custom application?
Yes. If your engineering team has already determined a required hardness range, share that with your quote request and we'll manufacture to it rather than defaulting to a standard grade.
How is hardness verified before the rod ships?
We test both surface and core hardness on the finished rod as part of 100% pre-shipment inspection, and the inspection record is kept with the production batch for traceability.
Internal resources:
External references:
ASTM E18, Standard Test Methods for Rockwell Hardness of Metallic Materials — the industry standard for the HRC scale referenced throughout this article: astm.org
ISO 9001:2015, Quality Management Systems — Requirements, referenced for our batch-inspection process: iso.org
If you're specifying a chrome plated rod and you're not sure which hardness grade fits, don't guess from a catalog number. Tell us the working pressure, stroke, and whether the application sees shock or side loading, and we'll recommend a grade based on how the rod will actually be used — not just what looks similar to your last order.
