Choosing a hydraulic cylinder rod is not simply a matter of selecting a diameter and length from a catalog. The piston rod is a critical working component that transfers force while moving repeatedly through the cylinder sealing system.
A suitable rod specification depends on many factors, including operating load, stroke length, installation method, working environment, sealing system, and expected service life.
For equipment manufacturers and hydraulic cylinder builders, the best rod selection process starts with understanding how the cylinder will actually operate, then converting those requirements into a technical specification.
The piston rod performs several functions at the same time. It transmits mechanical force from the hydraulic cylinder, provides the moving connection between the cylinder and external equipment, and works continuously with seals and guides.
Because of this, the rod must balance structural strength with surface performance.
The internal steel material provides the mechanical foundation, while the external surface treatment provides the working condition required for repeated movement and environmental exposure.
A well-selected piston rod helps the hydraulic cylinder maintain stable operation throughout its working cycle.
The first consideration when selecting a hydraulic cylinder rod is the force requirement.Different applications create different loading conditions. A lifting cylinder, construction machinery cylinder, industrial press cylinder, or agricultural machine cylinder may all require different rod specifications even if their operating principles appear similar.The rod diameter, material, and cylinder design need to provide sufficient strength for the expected load. Selecting a rod based only on available dimensions may create unnecessary risk if the actual mechanical conditions are not considered.
For OEM applications, load information should be reviewed together with cylinder mounting, movement direction, and operating frequency.
Stroke length has a direct influence on rod selection.A short-stroke cylinder and a long-stroke cylinder may use similar components, but the mechanical conditions are different. As the rod length increases, factors such as straightness, alignment, and stability become more important.
Longer rods need to maintain consistent geometry throughout the working length. Any deviation can influence the relationship between the rod, guide, and sealing system.This is why long-stroke applications often require closer attention to rod diameter, support conditions, and manufacturing accuracy.
Rod diameter affects both mechanical strength and cylinder performance.A larger diameter can provide higher resistance to certain loading conditions, but it may also increase weight and affect cylinder design. A smaller diameter may reduce cost and weight but needs to meet the actual mechanical requirements.

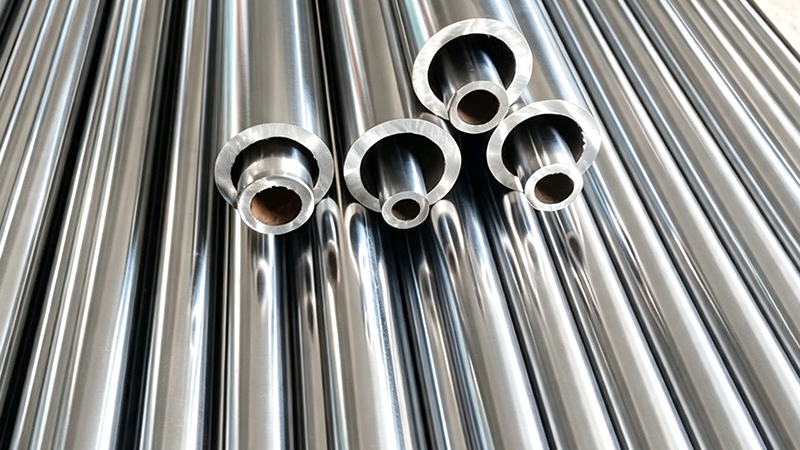

The correct diameter is therefore a balance between strength, application requirements, cylinder design, and operating conditions.EAST AI supplies chrome plated rods in diameters from 6–500 mm, supporting different hydraulic cylinder requirements.

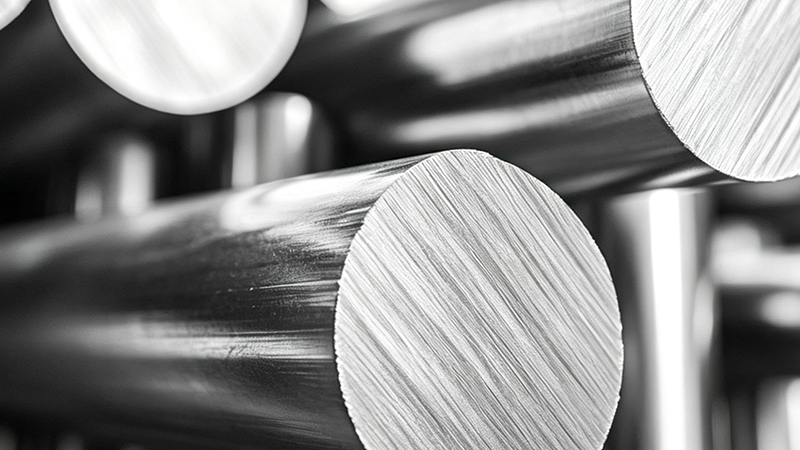

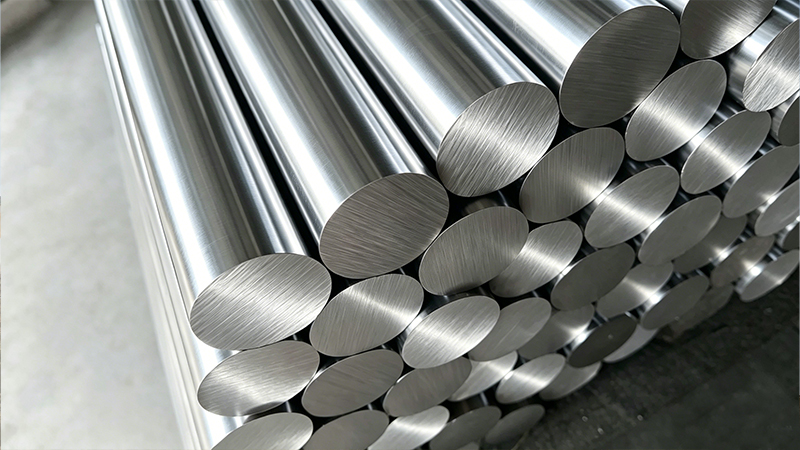

The base material determines the structural characteristics of the piston rod.Different hydraulic applications may require different material properties depending on strength requirements, environmental conditions, and customer specifications.Common materials for chrome plated rods include carbon steel and alloy steel options. EAST AI's product range includes materials such as CK45, SAE1045, JIC45C, ST52, 4140, 42CrMo, 40Cr, 20MnV6, and stainless steel grades according to application requirements.The material should be selected based on the actual cylinder requirements rather than simply choosing the highest-strength option available.

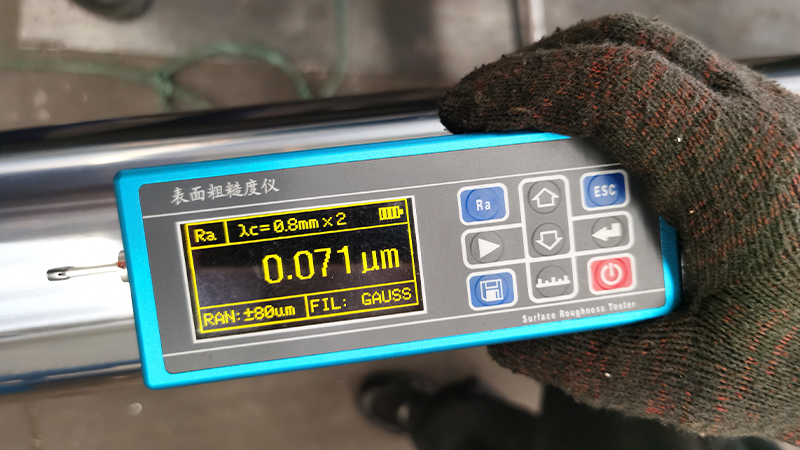

The piston rod surface works directly with the sealing system, making surface treatment a key part of rod selection.Hard chrome plating is widely used for hydraulic piston rods because it provides a durable working surface with good wear resistance and corrosion protection.However, the final performance depends on the complete surface specification, including chrome thickness, hardness, and finishing condition.EAST AI's chrome plated rod specification includes chrome thickness from 20–100 μm, chrome layer hardness of 850 HV, and surface roughness of Ra ≤0.2 μm.
The environment surrounding the hydraulic cylinder can significantly influence rod selection.Outdoor equipment may face dust, moisture, temperature changes, and contamination. Industrial equipment may require stable operation under repeated cycles and controlled factory conditions.The rod specification should therefore reflect where and how the cylinder will operate.A construction machine working outdoors and an automation cylinder installed in a clean production environment may require different considerations even if both use hydraulic movement.
Tolerance requirements depend on the cylinder design and sealing system.A hydraulic rod is a precision component. The diameter needs to remain within the required range to ensure proper assembly and working performance.EAST AI supports tolerance grades including f7, f8, and g6 according to customer requirements.
For OEM customers, tolerance requirements should be confirmed through technical drawings or application specifications before production.
A piston rod needs more than correct diameter. Its overall geometry also affects cylinder operation.Straightness is especially important for longer rods because the component needs to maintain alignment throughout its working movement.EAST AI's chrome plated rod specification lists straightness of ≤0.2/1000 mm.For applications involving long strokes or precision movement, straightness should be included as part of the technical specification.
One common mistake is selecting a rod only according to price and availability.
Another mistake is focusing on one specification while ignoring the complete system. For example, selecting a high-strength material does not automatically solve problems caused by incorrect diameter, poor alignment, unsuitable seals, or inappropriate surface requirements.
A good rod selection process considers the complete application rather than one individual parameter.
Hydraulic cylinder manufacturers usually require repeatable quality rather than one successful delivery.
When the same rod specification is purchased repeatedly, consistency of material, dimensions, surface condition, and finishing becomes important for production stability.
A supplier that understands hydraulic applications can help customers convert engineering requirements into a practical manufacturing specification.
Standard chrome plated rods can meet many common hydraulic applications. However, some projects require customized solutions because of special dimensions, materials, lengths, or operating conditions.
Customization may involve specific diameters, long lengths, special materials, tighter tolerances, or application-specific surface requirements.
The important point is that customization should be based on the cylinder requirement, not simply changing a standard product without understanding the final application.
A complete technical request should include key information such as: Rod diameter，Overall length，Material requirement，Tolerance requirement，Chrome thickness，Surface roughness，Straightness requirement，Application environment，Quantity and production requirement，Providing this information allows the supplier to evaluate the project accurately and recommend the appropriate specification.
The hydraulic cylinder rod is a precision component that directly influences cylinder reliability.The correct selection combines mechanical requirements, material choice, surface treatment, dimensional accuracy, and application conditions.For OEM manufacturers and hydraulic equipment builders, choosing a suitable rod specification at the beginning of a project can reduce future maintenance issues and improve production consistency.
There is no single factor. Load, stroke, diameter, material, surface treatment, tolerance, and operating environment should all be considered together.
Common materials include CK45, SAE1045, ST52, 4140, 42CrMo, 40Cr, stainless steel, and other grades depending on application requirements.
Chrome plating provides a durable working surface for repeated movement with hydraulic seals while improving resistance to wear and corrosion.
Common tolerance grades include f7, f8, and g6 depending on customer requirements.
Chrome plated rods are available from 6–500 mm diameter according to product specifications.
Yes. Customized solutions can be considered based on diameter, length, material, tolerance, surface requirements, and application conditions.
Selecting the correct hydraulic cylinder rod requires understanding both the component and the application it serves.
EAST AI provides chrome plated rod solutions for hydraulic cylinder manufacturers and OEM customers, supporting different materials, dimensions, tolerances, surface specifications, and application requirements.
