Honed Tube vs Cold Drawn Tube: Which One Should You Use for a Hydraulic Cylinder?

These Two Products Are Related but Not Identical

Honed tubes and cold drawn tubes are both widely used in hydraulic cylinder manufacturing, but they are not simply two names for the same product. The difference is mainly related to the manufacturing condition, dimensional requirements, internal surface condition, and how the tube will be used in the final cylinder.

For a hydraulic cylinder manufacturer, the correct choice depends on the production process and the final cylinder requirements. A tube that is already suitable for direct cylinder assembly may be preferable for one project, while another manufacturer may want a cold drawn tube because it provides a suitable starting condition for further machining or honing.

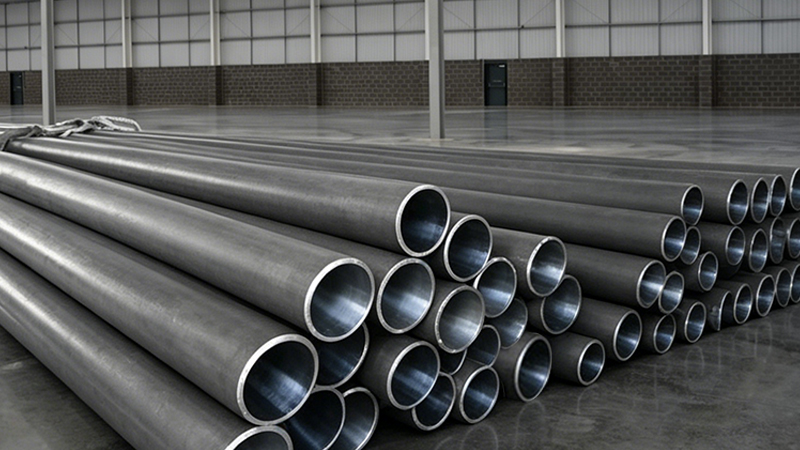

What Is a Cold Drawn Tube?

Cold drawn tubing is manufactured by drawing the tube through a die under controlled conditions. The process can improve dimensional accuracy and surface characteristics compared with conventional hot-finished tubing, making cold drawn tubes useful for precision mechanical applications.

For hydraulic cylinder manufacturing, cold drawn tubes can provide a controlled starting point for subsequent processing. The exact grade, dimensional tolerance, surface condition, and manufacturing route should be selected according to the customer's cylinder design and production process.

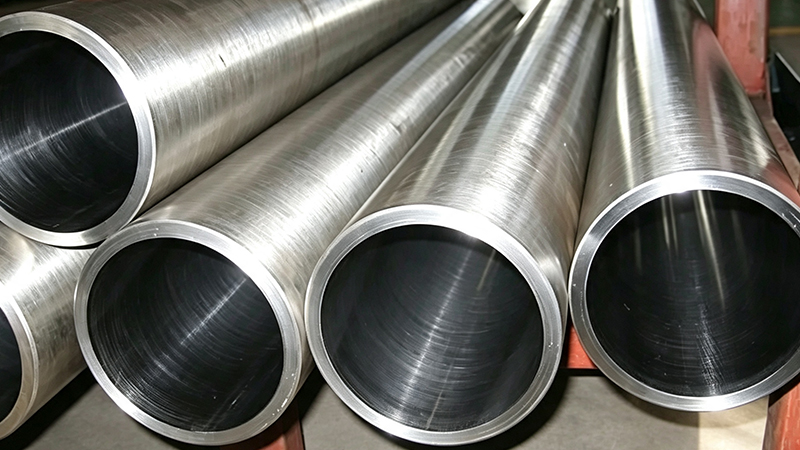

What Is a Honed Tube?

A honed tube has undergone an internal honing process to produce a controlled internal surface suitable for hydraulic cylinder applications. The honing operation removes a controlled amount of material from the inside of the tube while improving the internal surface condition and dimensional accuracy.

This makes honed tubes particularly useful when the cylinder manufacturer wants a tube that is already prepared for the internal working environment of the hydraulic cylinder. The internal surface interacts with the piston and sealing system, so the final condition of the tube is an important part of cylinder performance.

The Main Difference Is the Final Condition

The easiest way to understand the difference is to look at where each product sits in the manufacturing process.

A cold drawn tube can be used as a precision tube and may become the starting material for additional processing. A honed tube has already received internal finishing specifically intended to achieve the required cylinder bore condition. The choice therefore depends on whether the customer wants a precision tube for further processing or a finished internal bore condition for cylinder production.

This distinction can affect production efficiency, machining requirements, lead time, and overall manufacturing cost.

When a Honed Tube Makes More Sense

A honed tube can be advantageous when the cylinder manufacturer needs a controlled internal bore without carrying out the complete honing operation in-house.

This can simplify production by reducing internal machining work and allowing the manufacturer to focus on cutting, welding, assembly, and other cylinder operations. For customers producing hydraulic cylinders repeatedly, purchasing a suitable honed tube can also help standardize the internal bore condition across production batches.

When a Cold Drawn Tube Makes More Sense

A cold drawn tube can be suitable when the customer has its own internal machining or honing capability and wants greater control over the final bore.

This approach may be useful for manufacturers with established machining processes, special bore requirements, or applications where the final internal dimensions need to be produced according to an individual cylinder design.

The decision should therefore be based on the customer's manufacturing route rather than assuming that one tube type is universally better.

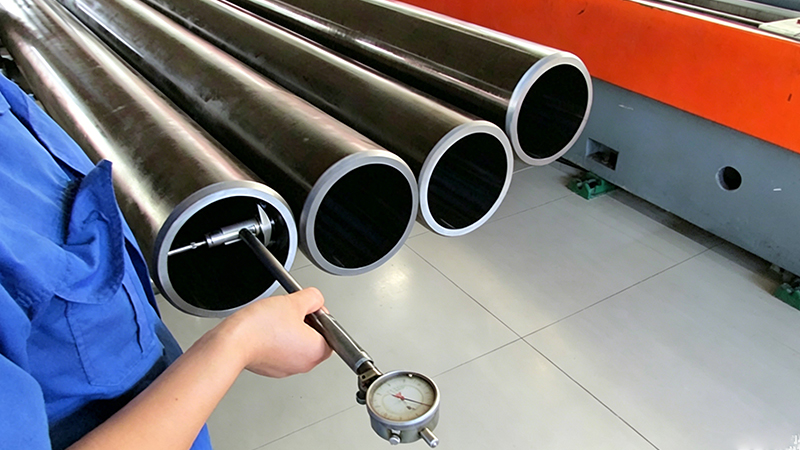

Bore Accuracy Is Important to the Cylinder

The internal bore determines the working environment for the piston and sealing system. Its dimensional accuracy and surface condition influence how the piston moves and how the sealing components perform during repeated operation.

For this reason, the final bore specification should be established before selecting the tube. The tube supplier needs to understand whether the product will be used directly after delivery or undergo additional machining and honing before cylinder assembly.

Material Selection Depends on the Application

Tube material should be selected according to the mechanical requirements of the hydraulic cylinder and the applicable technical standard.

Different hydraulic applications may involve different pressure levels, loads, cylinder dimensions, environmental conditions, and manufacturing requirements. A material that is suitable for one cylinder design may not automatically be the preferred choice for another.

For OEM production, the material grade should therefore be confirmed together with the customer's drawing, technical specification, and required documentation.

The Tube and Piston Rod Need to Work Together

A hydraulic cylinder cannot be evaluated by the tube alone. The honed tube, piston, seals, guide components, and piston rod form a working system.

The internal bore condition of the tube needs to be compatible with the piston and sealing system, while the piston rod needs to provide the appropriate external surface and dimensional characteristics. A problem in one component can affect the behavior of the complete cylinder.

This is why hydraulic cylinder manufacturers often benefit from purchasing the tube and rod according to a coordinated technical specification rather than treating each component as an unrelated commodity.

How the Choice Affects Production

For a manufacturer that does not have internal honing capability, purchasing honed tubes can reduce the amount of processing required before cylinder assembly. This can simplify production and reduce the need for dedicated honing equipment and process control.

For a manufacturer with established honing operations, cold drawn tubes may provide greater flexibility because the final bore can be produced internally. The better choice is therefore the one that fits the customer's production process, equipment, quality requirements, and total manufacturing cost.

What Should You Tell the Tube Supplier?

A useful inquiry should provide more information than simply “hydraulic cylinder tube.” The supplier should ideally receive the tube material, outside diameter, inside diameter or bore requirement, length, tolerance, surface requirements, quantity, and application.

If the customer is purchasing honed tube, the required internal bore condition should be clearly specified. If the customer is purchasing cold drawn tube for further processing, the supplier should understand the intended machining route so that the delivered tube can provide an appropriate starting condition.

A Practical Decision for Hydraulic Cylinder Manufacturers

If the goal is to receive a tube with a finished internal bore condition suitable for cylinder production, a honed tube is often the more direct solution. If the manufacturer already performs its own honing or needs to produce a special internal bore, a cold drawn tube may provide more flexibility.

Neither product should be considered automatically superior. The correct choice depends on the cylinder design, production equipment, internal processing capability, required bore condition, and overall manufacturing strategy.

The Best Tube Is the One That Fits the Complete Process

Hydraulic cylinder manufacturing is a combination of precision components and controlled processes. Choosing between honed tube and cold drawn tube should therefore start with the final cylinder requirement and work backward to the appropriate tube condition.

For OEM customers, the most efficient supplier relationship is one where the tube specification, manufacturing route, and final application are understood before production begins. This allows the supplier to provide a product that fits the customer's process instead of forcing the customer to adapt its process to a generic tube.

Frequently Asked Questions

Is a honed tube the same as a cold drawn tube?

No. A cold drawn tube describes a manufacturing process and resulting tube condition, while a honed tube has received an additional internal honing process to achieve a controlled bore surface and dimensional condition.

Which is better for hydraulic cylinders?

Neither is universally better. A honed tube can be more convenient when the customer needs a prepared internal bore, while a cold drawn tube may be suitable when the customer performs further internal machining or honing.

Why are honed tubes used in hydraulic cylinders?

Honing provides a controlled internal bore surface and dimensional condition suitable for the working environment of the hydraulic cylinder.

Can cold drawn tubes be honed later?

Yes. Cold drawn tubing can serve as a starting material for further internal processing when the customer's manufacturing process requires additional honing.

What information should I provide when requesting a hydraulic cylinder tube?

Material, dimensions, length, tolerance, internal surface requirements, quantity, application, and any applicable technical standard should be provided whenever possible.

Should the tube and chrome plated rod be specified together?

For complete hydraulic cylinder projects, coordinating the technical requirements of the tube and piston rod can help ensure that the components work together correctly within the final cylinder design.

Need Technical Support?

The choice between honed tube and cold drawn tube should be based on the final cylinder requirements and the manufacturer's production process, not simply on which product appears more advanced.

EAST AI supplies honed tubes and cold drawn tubes for hydraulic cylinder manufacturers and OEM applications, with specifications selected according to material, dimensions, internal bore requirements, surface condition, and production needs.
