Hydraulic cylinder stroke refers to the distance that the piston rod can extend and retract during operation. It determines how far the cylinder can move the connected machine component.
Stroke is one of the basic specifications used when selecting or designing a hydraulic cylinder. Together with bore diameter, rod diameter, mounting configuration, and operating pressure, it defines how the cylinder will perform within the equipment.
A cylinder with the correct bore but an unsuitable stroke may still fail to meet the machine's movement requirements. This is why stroke should always be considered as part of the complete hydraulic cylinder design.
The required stroke is normally determined by the physical movement that the equipment needs to complete.
For example, an excavator cylinder may need a specific stroke to move a boom, arm, or bucket through its required working range. A lifting cylinder may require a different stroke depending on the required lifting height.
If the stroke is too short, the equipment may not achieve the required movement. If it is unnecessarily long, the cylinder may increase equipment dimensions or create installation problems.
The objective is to select a stroke that provides the required movement without creating unnecessary design compromises.
Stroke is directly related to the physical length of the cylinder. A longer stroke generally requires more available installation space because the rod must travel a greater distance.
This can become an important engineering consideration in compact machinery where space around the hydraulic cylinder is limited.
Engineers therefore need to consider both the operating movement and the available installation envelope. The cylinder must provide enough travel while remaining compatible with the machine structure.
In custom equipment, stroke selection is often part of the overall mechanical design rather than a decision made independently by the hydraulic system.
Cylinder stroke and operating speed are also connected to hydraulic system flow.
The hydraulic system needs to supply and remove fluid as the piston moves. A cylinder operating over a longer stroke requires the piston to travel farther, so the relationship between stroke, flow rate, bore, and operating time needs to be considered.
For equipment manufacturers, this means that selecting a longer stroke without considering hydraulic flow can affect the expected operating speed.
A good cylinder solution balances movement distance with the available hydraulic system performance.
Bore and stroke are two of the most important dimensions in hydraulic cylinder selection, but they describe different characteristics.
Bore influences the piston area and therefore the force the cylinder can generate under a given hydraulic pressure. Stroke determines how far the piston can travel.
This means two cylinders with the same bore can have completely different applications if their stroke lengths are different.
Engineers should therefore establish both the required force and required movement before selecting the final cylinder dimensions.
Different machines require different stroke ranges because their mechanical movements are different.

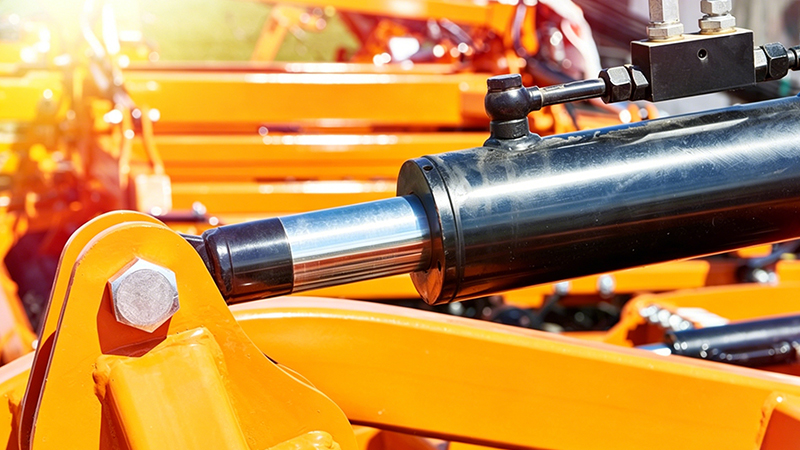

Construction machinery often uses cylinders with movement requirements determined by linkage geometry. Agricultural equipment may require long travel for lifting or positioning. Industrial machinery may require a carefully controlled stroke for repeatable movement.
Understanding the actual machine movement is therefore more useful than selecting a stroke based only on the cylinder's general application category.
The cylinder should be designed around what the machine needs to accomplish.
A stroke that is too short prevents the hydraulic cylinder from completing the required mechanical movement.
In some equipment, this may reduce the working range of an attachment or prevent a mechanism from reaching its intended position.
Trying to compensate with mechanical modifications may create additional design problems. For this reason, stroke should be established during the equipment design stage whenever possible.
Correct stroke selection helps ensure that the cylinder and machine linkage operate within their intended range.
A longer stroke is not automatically better. Excessive stroke can increase the physical length of the cylinder and create problems with installation space, rod exposure, machine geometry, or operating stability.
A longer rod extension may also expose more of the working surface to the surrounding environment, depending on the application.
The correct approach is to determine the actual movement requirement and then select the shortest practical stroke that fully satisfies the equipment's operating range.

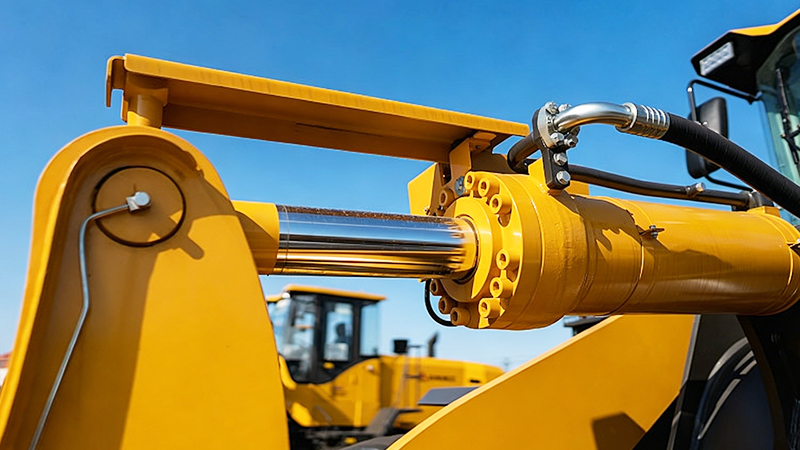

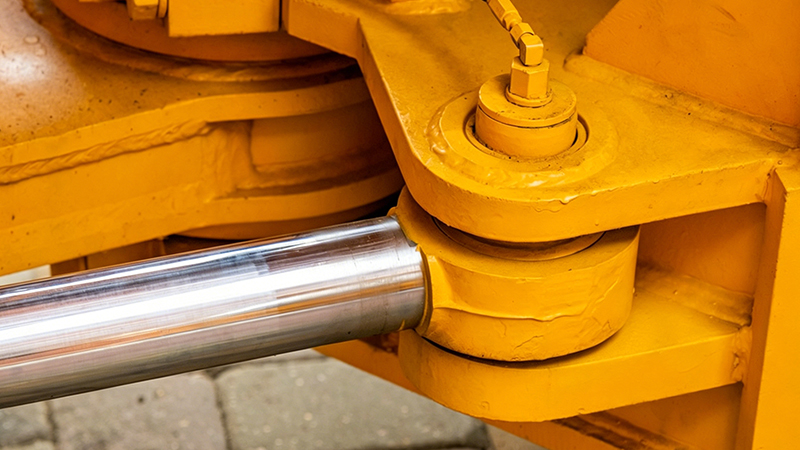

Heavy equipment often operates with complex mechanical linkages, high loads, and changing working positions. The cylinder stroke must therefore match the movement of the connected components throughout the complete operating cycle.
Excavators, loaders, cranes, and other construction machines can require different stroke characteristics even when their cylinders perform similar basic functions.
Engineers should evaluate the complete movement path, mounting points, load conditions, and available installation space before finalizing the stroke.
Application-specific cylinder design can provide a better solution when standard dimensions cannot meet these requirements.

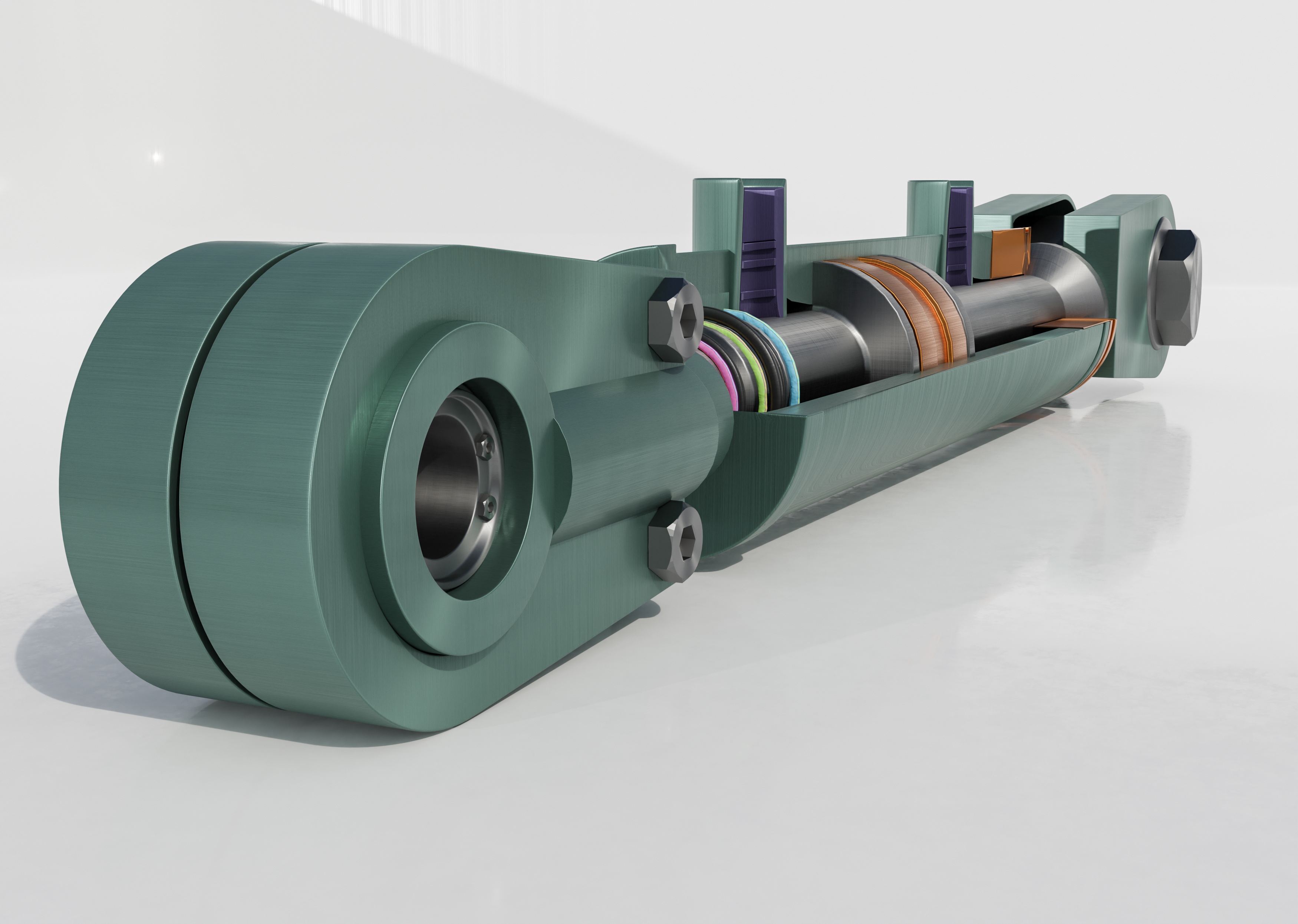

The stroke specification does not exist independently from the rest of the hydraulic cylinder.
The cylinder tube must provide sufficient internal working length. The piston rod must have the required extension and structural capability. Seals and guiding components must maintain reliable performance throughout the complete movement.
This is why selecting a hydraulic cylinder should be approached as a complete component and application decision.
The tube, rod, seals, mounting structure, bore, and stroke all need to work together.

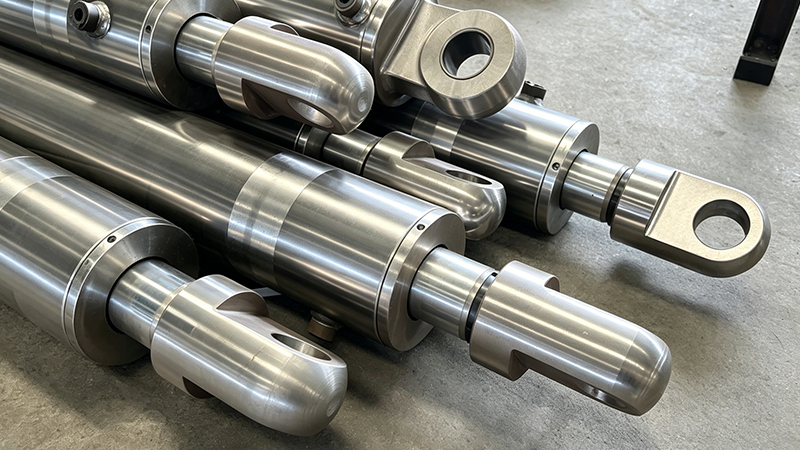

Standard hydraulic cylinders may be suitable when the equipment design matches commonly available dimensions. They can simplify purchasing and replacement while providing a practical solution for conventional applications.
Custom cylinders become more useful when the required stroke, mounting dimensions, bore, rod size, or operating conditions fall outside standard configurations.
For OEM manufacturers, custom hydraulic cylinder design can help optimize the cylinder around the machine rather than forcing the machine design to adapt to a standard cylinder.
The first step is to identify the actual movement required by the machine. Engineers should determine the start position, end position, linkage movement, and available installation space.
The next step is to consider the relationship between stroke, bore, hydraulic flow, rod diameter, and operating pressure.
Finally, the selected cylinder should be evaluated under the real operating conditions of the equipment. This helps ensure that the cylinder does not simply meet a dimensional requirement but also provides reliable performance in actual use.
Hydraulic cylinder stroke is the distance the piston rod travels between its fully retracted and extended positions.
No. Bore diameter primarily affects force under a given hydraulic pressure, while stroke determines the distance the cylinder can move.
Yes. Stroke works together with bore size and hydraulic flow to determine how quickly the cylinder can complete its movement.
Determine the actual movement required by the machine, then consider linkage geometry, installation space, hydraulic flow, bore, rod size, and operating conditions.
A custom stroke can be advantageous when standard cylinders cannot match the equipment's required movement or installation dimensions.
Construction equipment often relies on specific cylinder movements to control booms, arms, buckets, lifting mechanisms, and other working components.
Hydraulic cylinder stroke is more than a number on a specification sheet. It determines how far the equipment can move and must be matched with the machine's mechanical design and hydraulic system.
Understanding the relationship between stroke, bore, rod dimensions, hydraulic flow, and application requirements helps equipment manufacturers select more suitable cylinder solutions.
